Analytik Jena SPECORD S600 User Manual

Analysis of light-scattering samples
Integrating sphere
86 Edition 09/2014 SPECORD S600 accessories
Adapter for powdered samples: Diameter 16 mm
Depth 5 mm
Dimensions of the spherical
body
( L x W x H ):
125 mm x 95 mm x 150 mm
Weight: 1.0 kg
Power requirements Primary: 100 – 240 V; 47 – 63 Hz
Secondary: 5 V and 24 V
Lampe 6V ; 10W
Layout and function
1
Transformer
11
Sphere body
2
Power plug
12
Mirror holder
3
Switch
13
Fan with lamp holder
4
Holder for powder samples
14
Low-voltage cable
5
Control unit
15
Photodiode
6
Rotary magnet
16
Coupling
7
Quartz lens with mount
17
Locating surface on carrier rods
8
Shutter
18
Adjusting screw
9
Removable light shield
10
Supply cable for control electronics

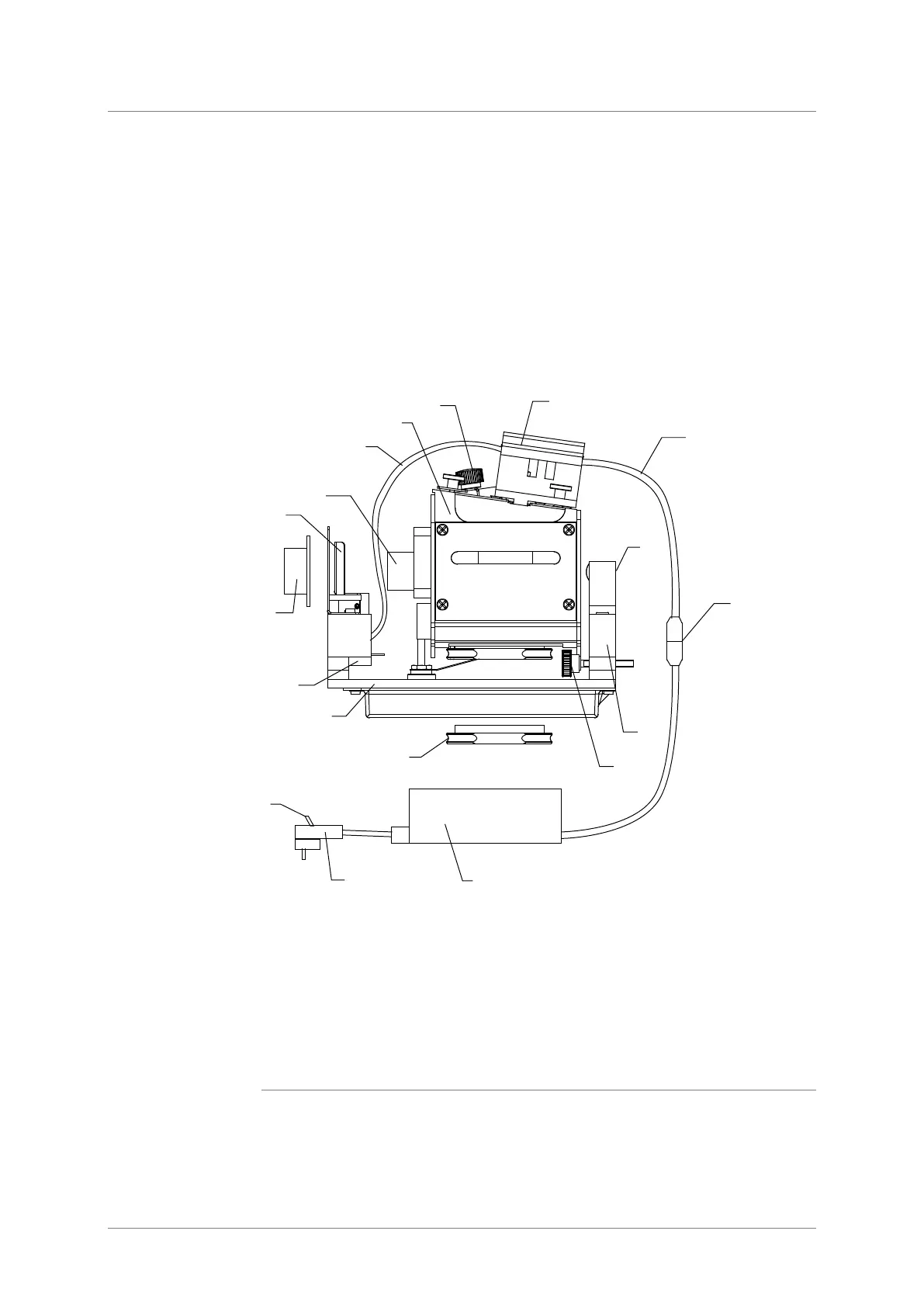

Fig. 20-1 Layout of the integrated sphere – Total view
The integrated sphere is placed onto the sample chamber rods in the sample
chamber. The spherical body can be used in two different positions in the
sample chamber dependent on the measuring type and sample requirements.
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
7
