Analysis of solid samples
Holder for solid samples
74 Edition 09/2014 SPECORD S600 accessories
17 Holder for solid samples
This holder is suitable for solid transparent samples with a diameter from
20 mm and a path length up to 25 mm.
The maximum sample dimension can be 80 mm x 140 mm.
Layout
1 Guide
2 Contact surface for the sample
3 Knurled head screw
4 Support block
5 Contact spring

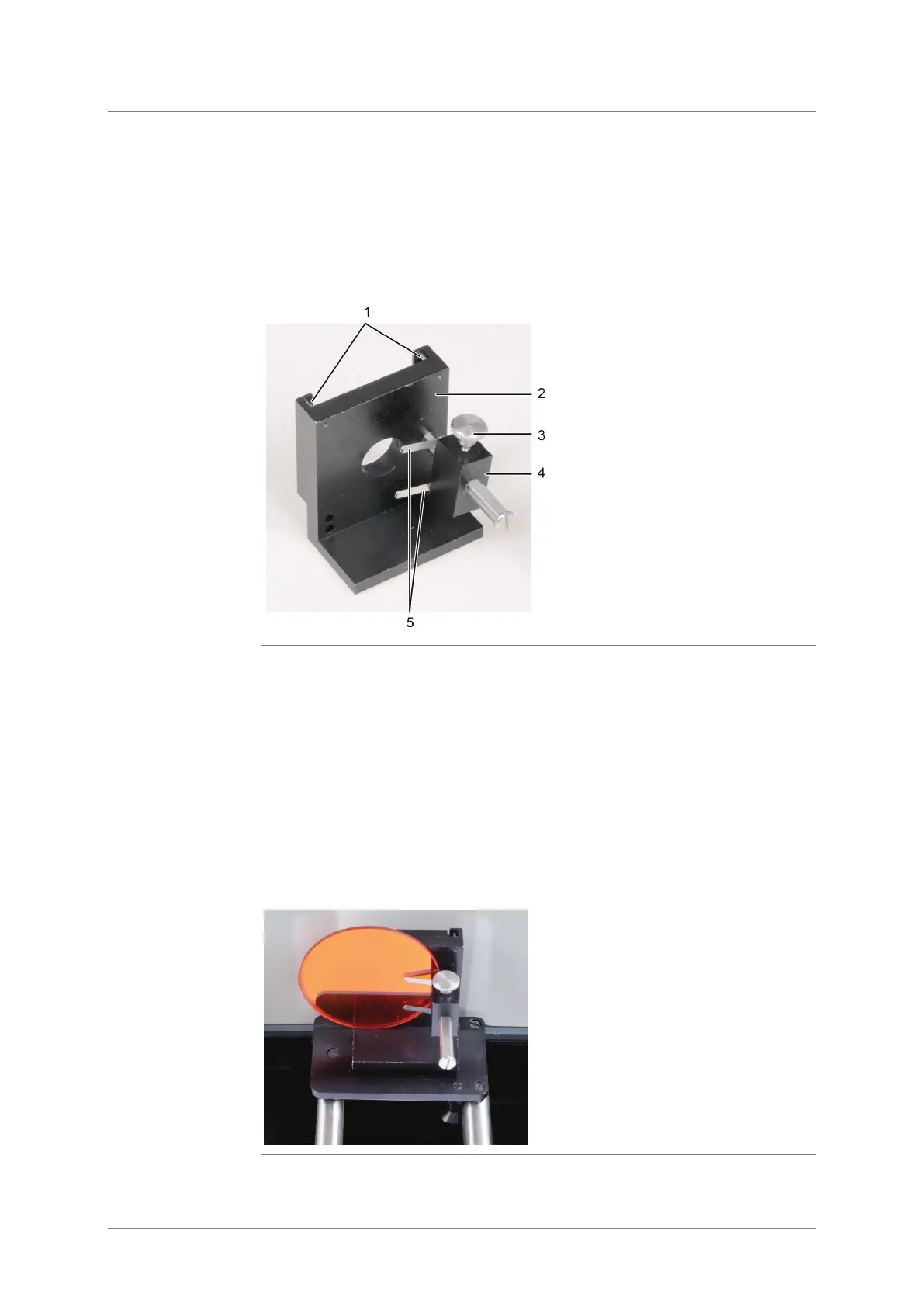

Fig. 17-1 Holder for solid samples
Installing the holder in SPECORD S600 and inserting the sample
1. Slide the holder with the guide onto the adapter plate of the universal
holder.
2. Loosen the knurled head screw and pull back the support block.
3. Place the sample onto the contact surface of the holder.
4. Slide the support block against the sample until the contact springs securely
hold the sample.
5. Tighten the knurled head screw.
Fig. 17-2 Installing the holder for solid samples in SPECORD S600
