Analysis of light-scattering samples
Integrating sphere
SPECORD S600 accessories Edition 09/2014 89
Put the halogen lamp into the sphere body.
Do not touch the halogen lamp with bare fingers. Contamination on the bulb will
impair
the performance of the lamp. Wipe off any contamination with a soft cloth
moistened with pure alcohol or a similar substance.
1. Plug the halogen lamp into its holder (Fig. 20-5). Do this by holding the
lamp at its packing hood.
2. Insert the halogen lamp into the provided aperture of the sphere body (2 in
Fig. 20-5) and screw on the holder on the sphere body by means of the
fastening screws (1,4 in Fig. 20-5).
1 Screw for fastening the holder of
the halogen lamp
2 Sphere body
3 Aperture for halogen lamp
4 Screw for fastening the holder of
the halogen lamp
6 Halogen lamp
7 Connector for connection to transformer
8 Connector for connection to control unit

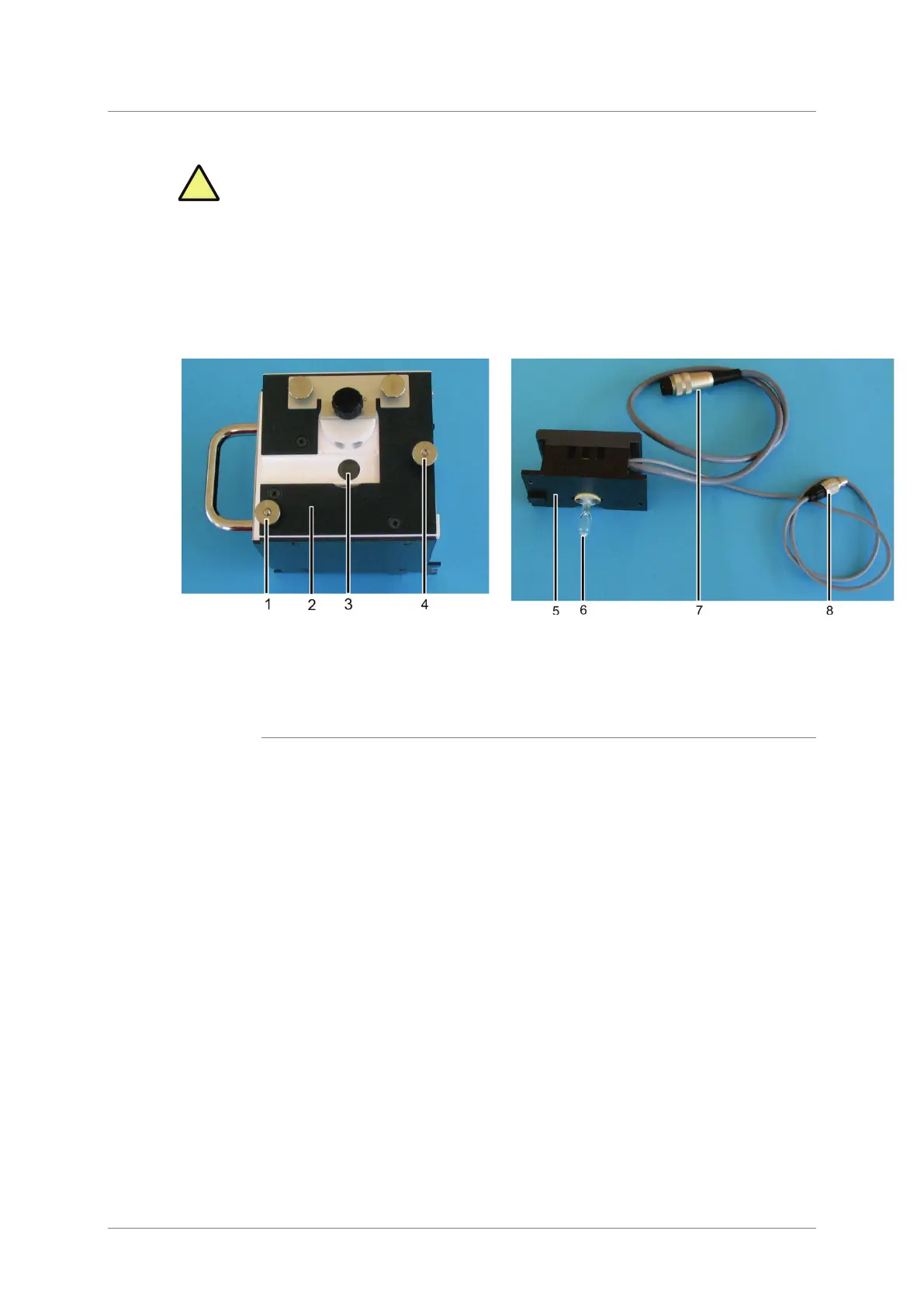

Fig. 20-5 Halogen lamp of integrating sphere
