Cell holder
Standard cell holder, 50 mm
10 Edition 09/2014 SPECORD S600 accessories
2 Standard cell holder, 50 mm
The standard cell holder is designed for cells with a path length of up to 50 mm
and a width of 12.5 mm. The cells are radiated at a height of approx. 5 to
15 mm above the support level of the cell holder.
Layout
1 Cell adapter
2 Guide
3 Contact surface for cells

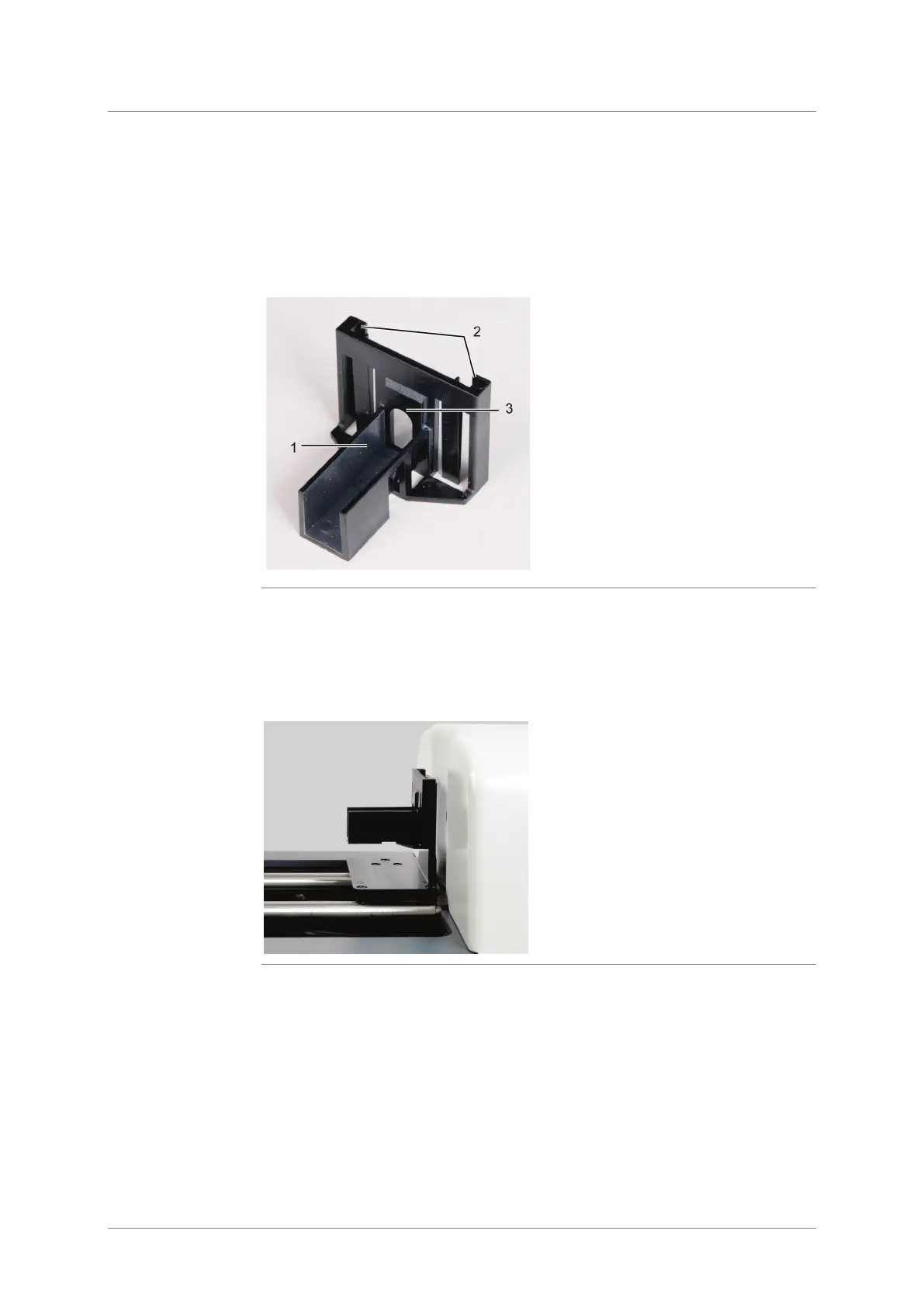

Fig. 2-1 Standard cell holder, 50 mm
Installing the cell holder in SPECORD S600
 Slide the cell holder with the guide from above onto the adapter plate of the
universal holder.
Fig. 2-2 Installing the cell holder in SPECORD S600
