Analysis of solid samples
Absolute reflectance attachment
SPECORD S600 accessories Edition 09/2014 77
Installing the attachment in the sample chamber
Caution! Sensitive optical mirrors!
Work with care and avoid the contamination of the mirrors. Do not touch the
mirrors! This could damage them!
1. Screw the support rods in the sample chamber into the top position (→ see
section "Converting the sample chamber" p. 7).
2. Place the attachment onto the support rods as shown in Fig. 18-3. Slide the
attachment up to the stop against the front sample chamber wall.
3. With clamping lever:
Move the clamping lever forward.
Without clamping lever:
Press down the base plate of the cell holder until it engages on the support
rods with a click.
The attachment is installed in the SPECORD S600.

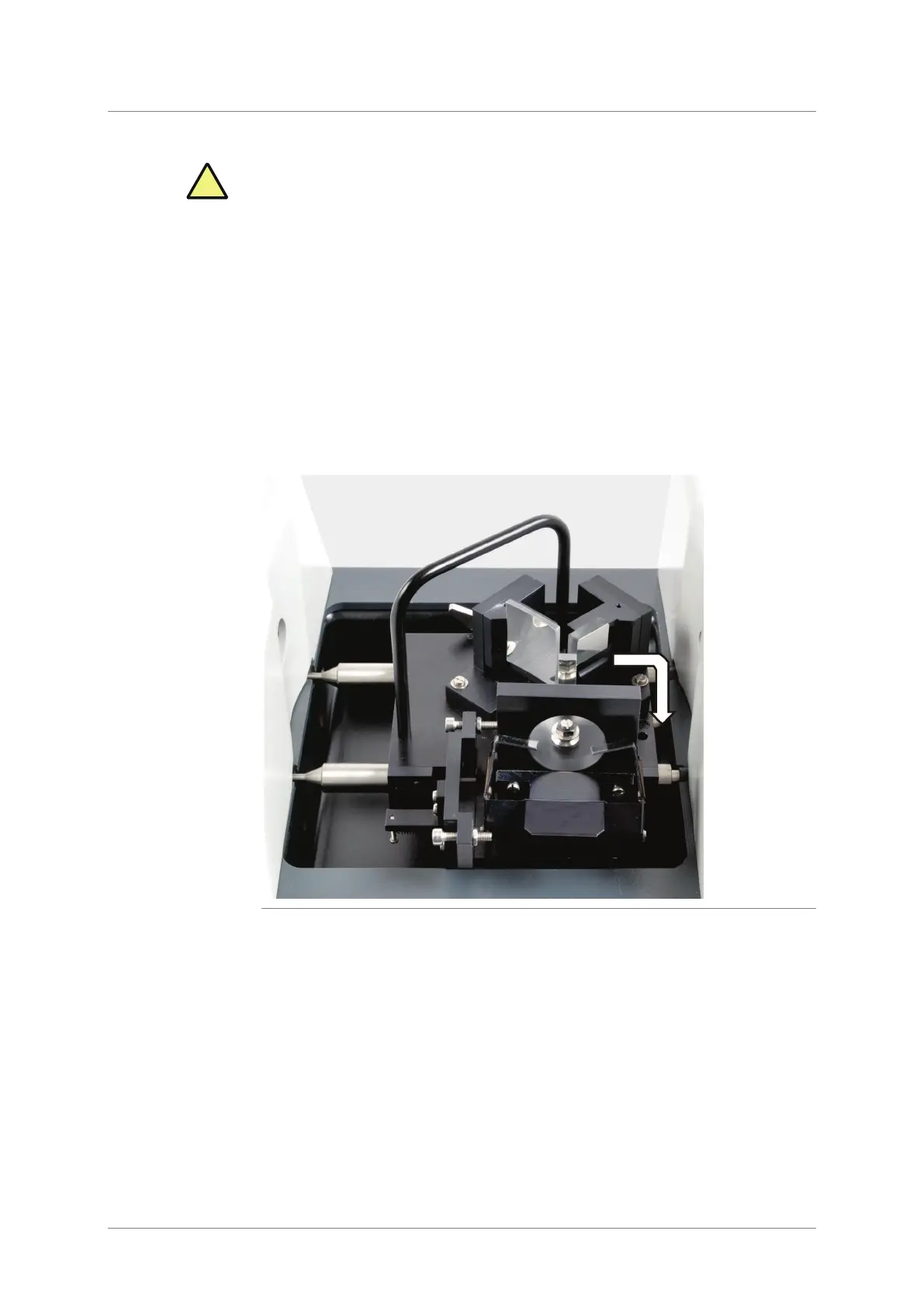

Fig. 18-3 Absolute reflectance attachment in the sample chamber
Adjusting the attachment
The attachment has been adjusted for the use in the SPECORD
S600 and can
be used without further adjustment.
If you want to use an attachment you already have, it is recommended to check
the adjustment of this attachment. To do this, proceed as follows:
1. Install the attachment in the sample chamber and tilt it into the V position.
2. Open the shutter to observe the transmitting beam.
On the Windows taskbar, click the [Start] button. Activate the menu
function Programs / WinASPECT / Service S600.
