Peltier-tempered accessories
Peltier-tempered cell holder with external heat exchanger
48 Edition 09/2014 SPECORD S600 accessories

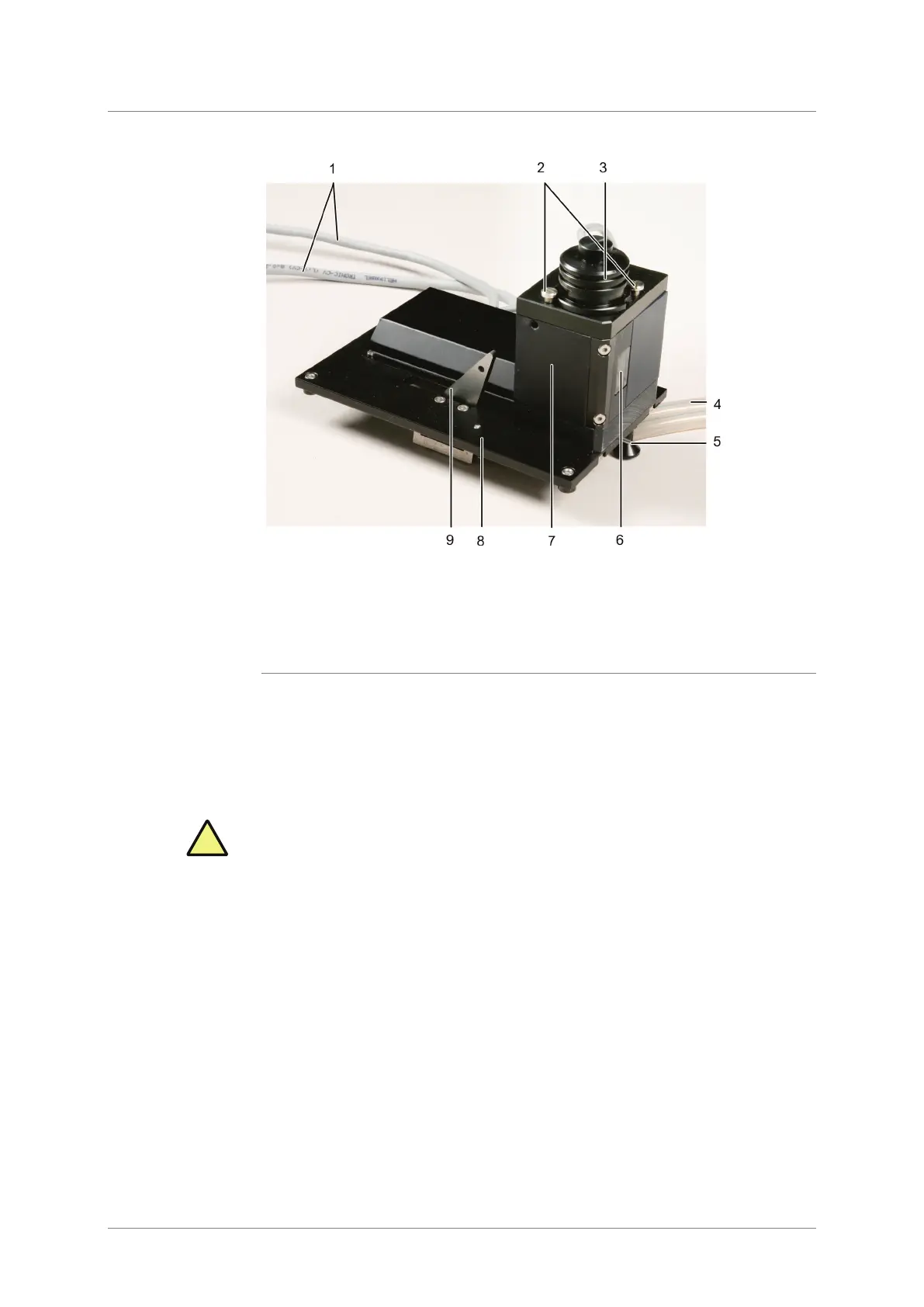

Layout of the Peltier-tempered cell holder with heat exchanger
1 Connections to the temperature control unit;
and connection to the heat exchanger
2 Locking screws to fasten
the cover cap
3 Cover cap
4 Hoses for connection to the heat exchanger
6 Quartz window
7 Cell block with insulation
8 Base plate
9 Clamping lever (in some models
only)
Fig. 15-8 Peltier-tempered cell holder with heat exchanger
15.3.2 Installing the cell holder in the sample chamber
Lay the connection cables carefully!
The connection cables and cooling hoses must be laid without tension.
Tensile stress on the electrical cables and kinking of the cooling water hoses
must be precluded.
The cooling water hoses and connection cables must not protrude into the
optical path of the beam path.
