Cell holder
Cell holder, 10 mm, thermostated
SPECORD S600 accessories Edition 09/2014 13
4 Cell holder, 10 mm, thermostated
In this cell holder temperature control is via a liquid thermostat.
Optionally the thermostated cell holder can be equipped with a magnetic stirrer.
The thermostated cell holder can be combined with other sample holders as
thermostated holder for flow cells in connection with the cartridge sipper system.
The cell holder for standard cells has the following dimensions:
Path length: 10 mm
Cell width: 12.5 mm
Minimum filling height 25 mm
Radiation height 5 – 15 mm
Temperature range: up to 100 °C
Inside hose diameter: 4 mm
Outside hose diameter 6 mm
Layout
for temperature
control hoses
2 Guide
3 Cell duct
4 Cable with
connector for
magnetic stirrer
5 Control unit for
magnetic stirrer

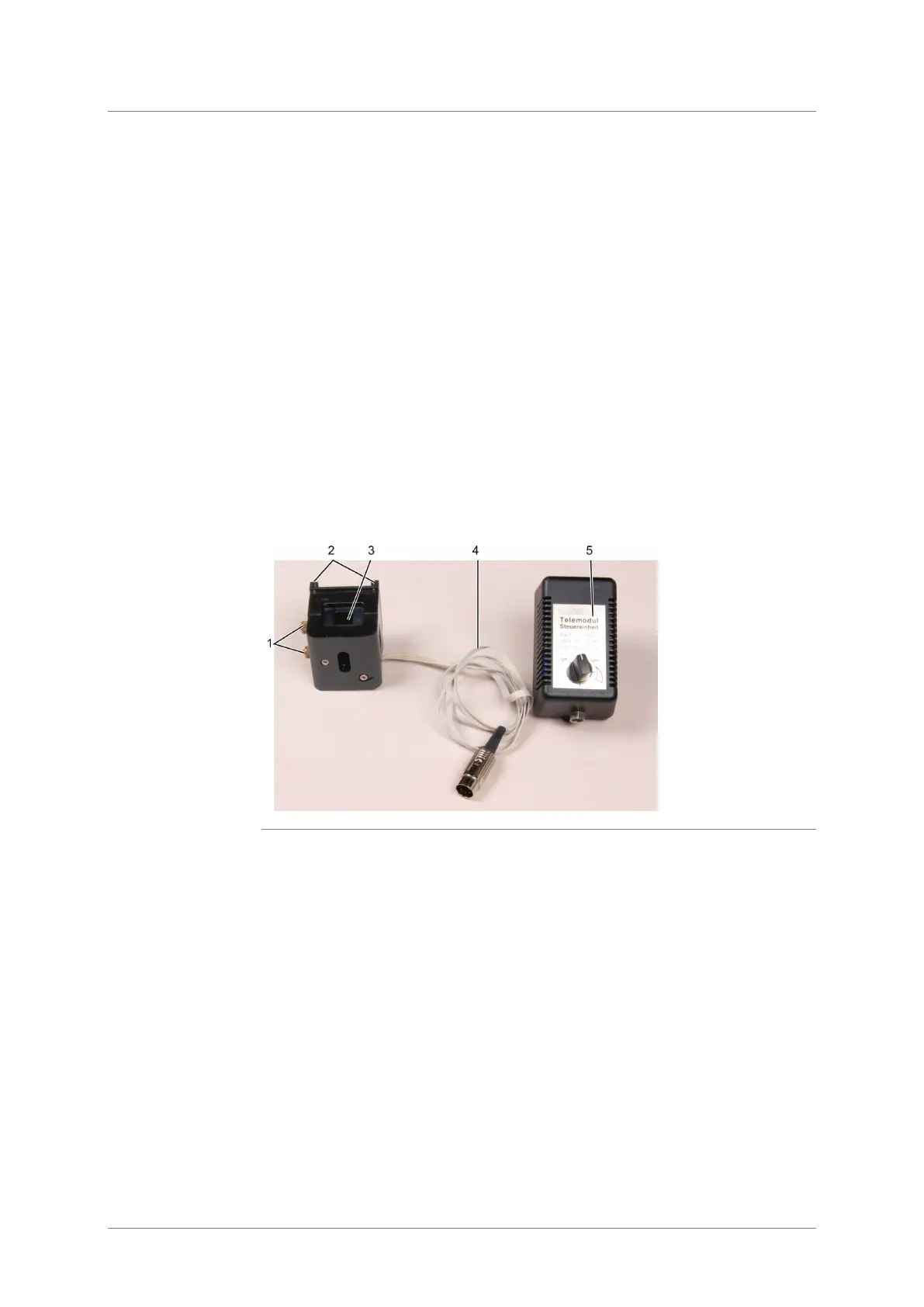

Fig. 4-1 Thermostated cell holder with 10 mm path length
Inserting the magnetic stirrer
The magnetic stirrer is an optional accessory. It can be retrofitted:
1. Undo the two knurled head screws at the bottom of the cell holder and
remove the floor plate.
2. Insert the coil of the magnetic stirrer into the square aperture at the floor of
the cell holder. The ribbon cable must be aligned with the base plate.
3. Attach the floor plate using the two knurled head screws. The spacer block
on the floor plate, which implements the correct cell height without the
stirrer inserted, must point outward.
4. Plug the connector of the magnetic stirrer into the socket of the control unit.
5. Connect the control unit to the mains supply.
