Analysis of light-scattering samples
Integrating sphere
92 Edition 09/2014 SPECORD S600 accessories
1
Light-exit aperture
10
Upper Spectralon
®
hemisphere
2
Cell with cell holder
11
Lower Spectralon
®
hemisphere
3
Mirror holder with mirror
12
Locating surface on carrier rods
4
Lock screw for mirror carrier
13
Spectralon
®
insert
5
Mirror carrier
14
Aperture
6
Cooling block
15
Retaining clip
7
Lamp holder
16
Retaining clip holder
8
Fastening screw for cooling block
9
Lamp

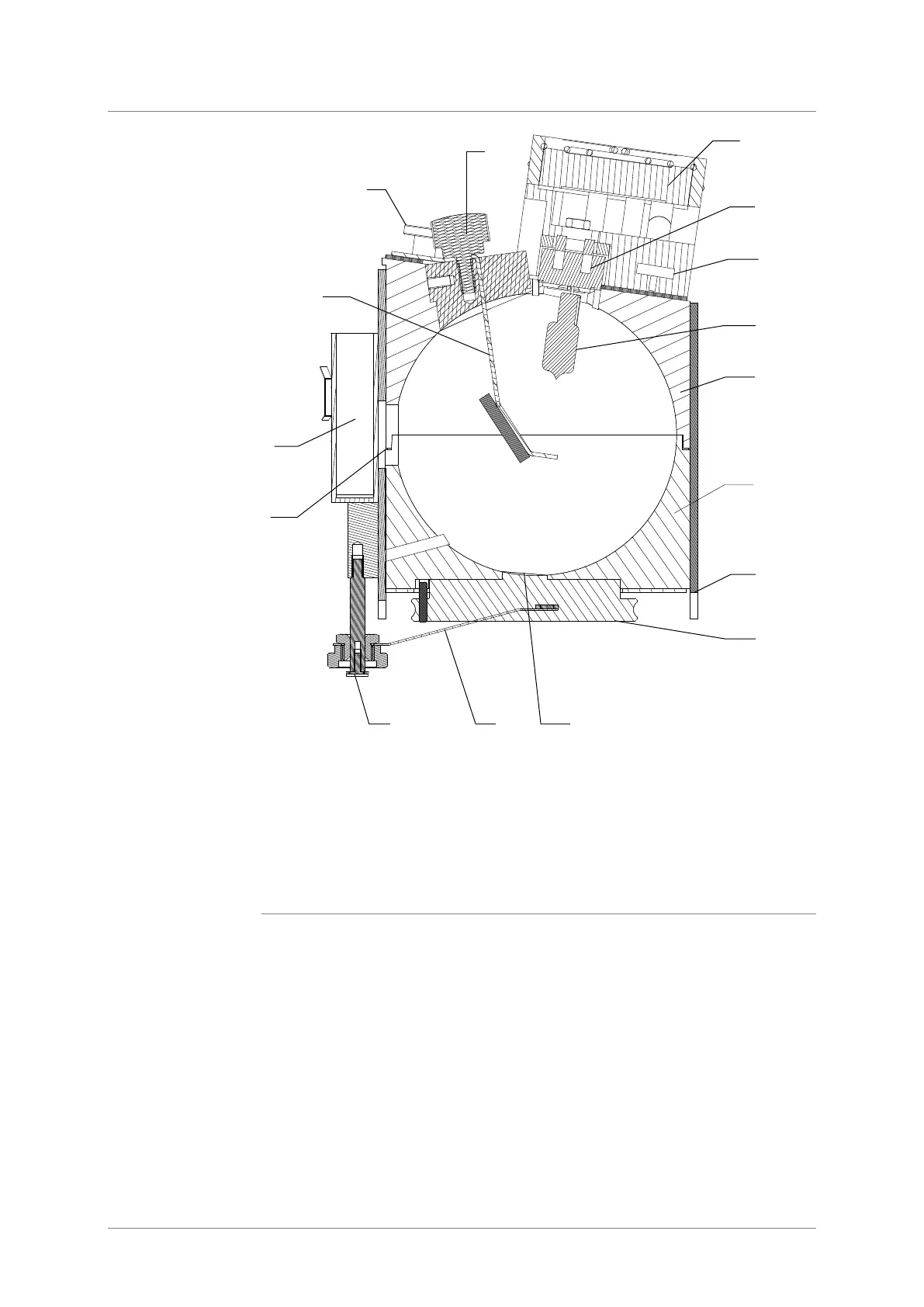

Fig. 20-7 Optical path in transmission measurements
Preparing the measurement
1. Insert the Spectralon insert (13 in Fig. 20-7) in aperture (14 in Fig. 20-7). A
locating pin ensures correct position of the insert. Shift retaining clip (15 in
Fig. 20-7) on spring holder (16 in Fig. 20-7) until the Spectralon insert is
reliably pressed against the aperture. Take care that this insert is clean.
2. Insert the two parts of the cell holder (2 in Fig. 20-7) into the provided
elongated holes taking care that the cell clip is properly positioned relative
to the cell.
1
2
3
4
5
6
7
8
9
10
12
13
14
1516
11
