Cell changer
8-cell changer
SPECORD S600 accessories Edition 09/2014 29
12.1 Installing the 8-cell changer in the sample chamber

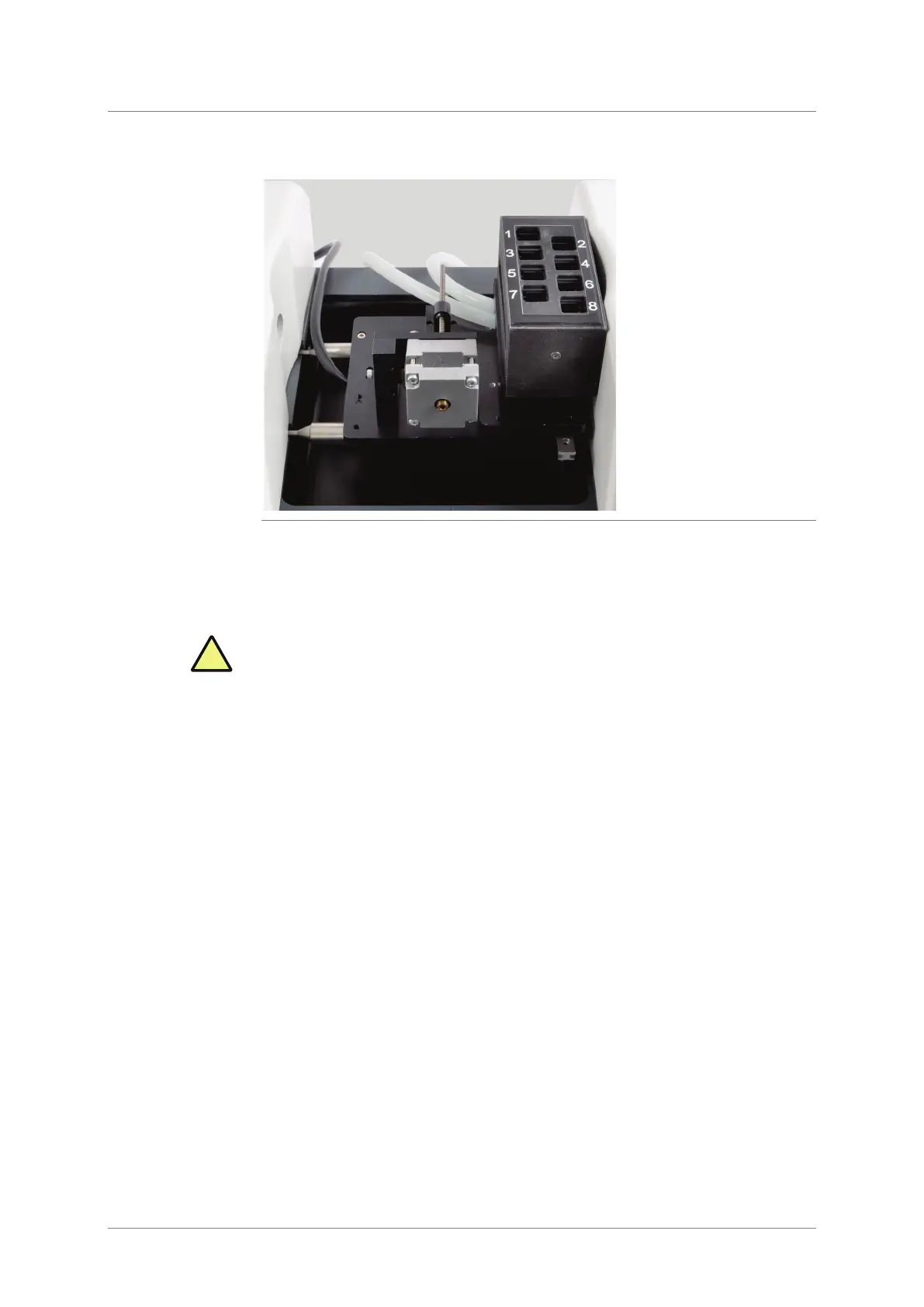

Fig. 12-2 8-cell changer in SPECORD S600
This section describes the installation of a thermostated 8-cell changer with
magnetic stirrer. If your cell changer does not feature the temperature control or
stirrer, skip the item in the description.
Caution! Laying the connection!
Lay the supply cables for the connections to SPECORD S600, the water
thermostats and the magnetic stirrer without them protruding into the beam
path in the sample chamber.
Lay the water hoses to the thermostats without tension! The cell block of the
cell changer must move freely.
Screw the support rods in the sample chamber into the bottom position (→
section "Converting the sample chamber" p. 7).
Connecting the thermostat
Connect the hoses (5 in Fig. 12-1) to a thermostat.
Inserting the cell changer
1. Place the cell changer onto the support rods.
2. Slide the cell changer up to the stop against the wall of the lamp housing.
3. Press down the cell changer on the rear side until it engages with a click.
4. Connect the connector to the connection ACC I in the rear of the S600.
Connecting the magnetic stirrer
Connect the cable (1 in Fig. 12-1) to the stirrer control unit. Connect the
stirrer control unit to the mains supply.
Switching on the SPECORD S600
1. Switch on the SPECORD S600 and start WinASPECT.
