2-5 Display Overview Instrument Overview
2-8 PN: 10580-00250 Rev. K Cell Master UG

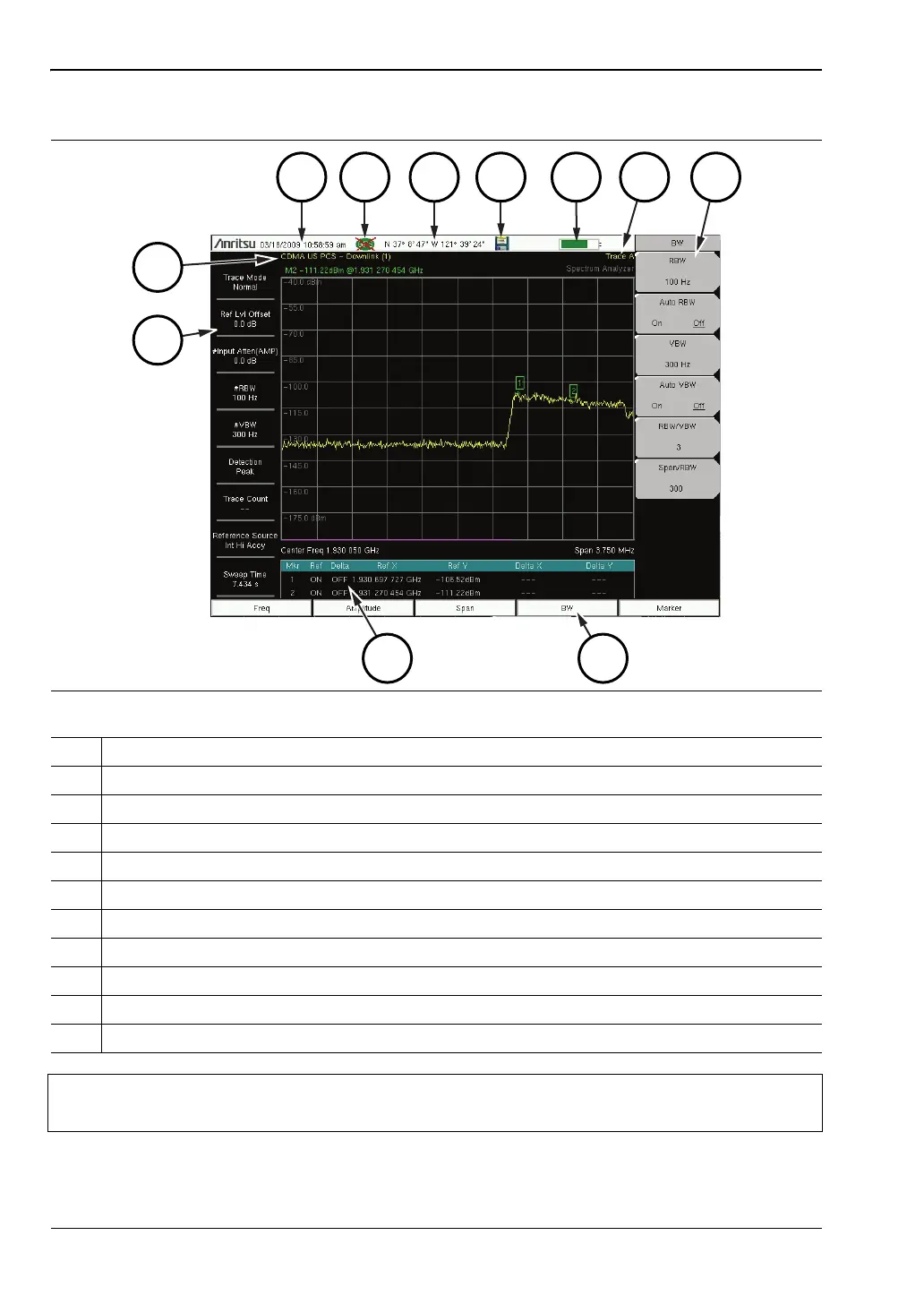

Figure 2-6. Spectrum Analyzer Display
1. Measurement Settings Summary (Touch Screen Shortcuts)
2. Frequency Standard
3. Date and Time
4. GPS Icon
5. GPS Location
6. Save Icon
7. Battery Charge Indicator
8. Trace Measurement Title
9. Submenu Touch Screen Keys
10. Main Menu Touch Screen Keys
11. Marker Table
Note
Many of the measurement settings are used as touch screen shortcuts. Use the
touch screen to select a measurement setting to edit.
