MT8212E and MT8213E MM PN: 10580-00255 Rev. J 4-1
Chapter 4 — Power Meter Verification
4-1 Power Meter Level Accuracy
The following test verifies the level accuracy of the Power Meter function in the MT821xE.
Equipment Required
• Anritsu MG3692X Synthesized Signal Source
• Anritsu ML2438A Dual Channel Power Meter
• Anritsu MA2442D High Accuracy Power Sensors (2)
• 10 MHz Reference Standard
• Anritsu 34NN50A 50 ohm Adapter
• Anritsu 34RKNF50 50 ohm Adapter
• Anritsu 15NN50-1.5C RF Coaxial Cable
• Aeroflex/Weinschel 1870A Power Splitter
• Aeroflex/Weinschel 44-10 10 dB Fixed Attenuator
Setup

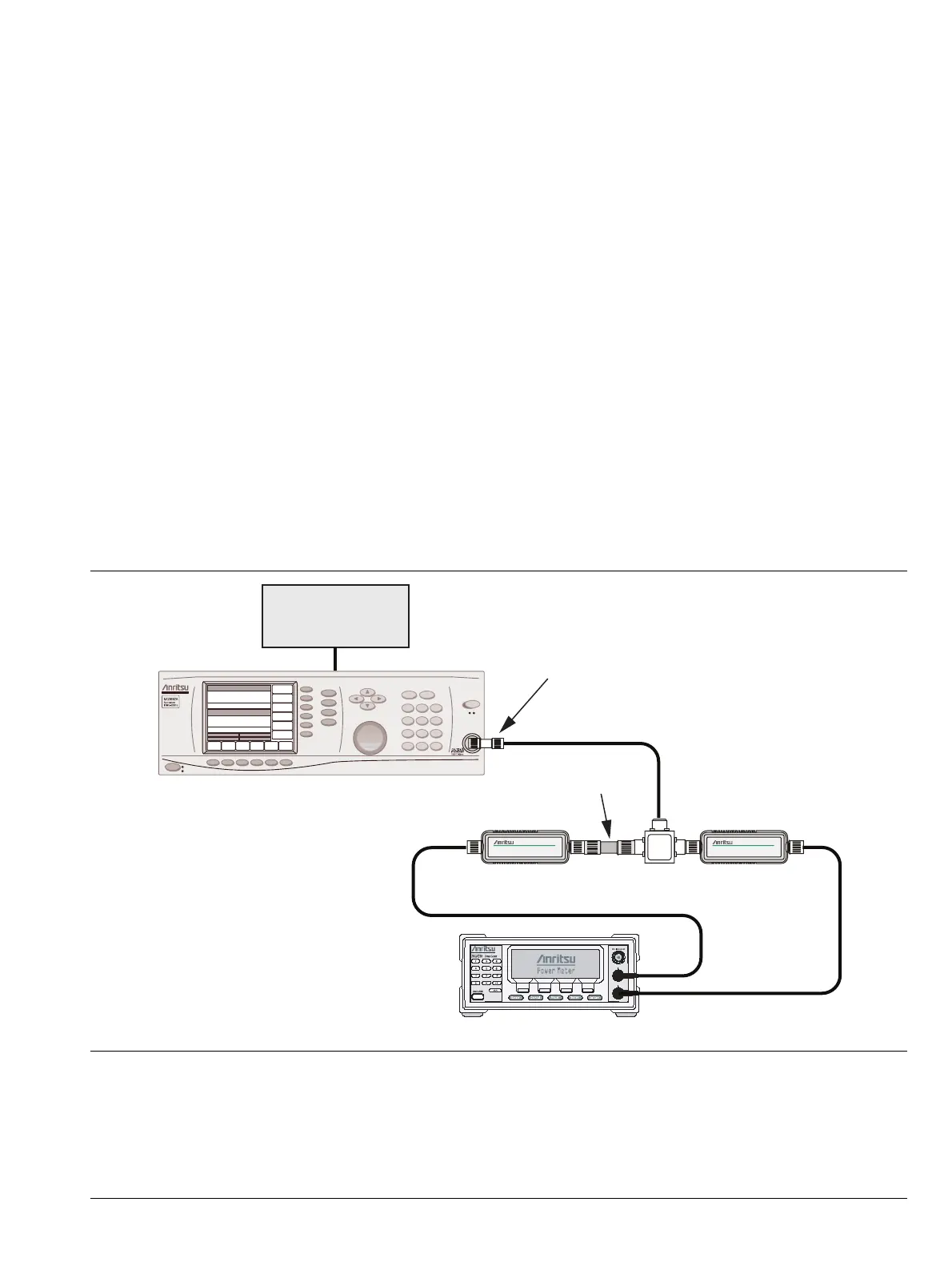

Figure 4-1. Power Meter Measurement Accuracy
MG3692x Synthesized Signal Generator
10 MHz
Reference
ML2438A Power Meter
MA2442D
Sensor A
MA2442D
Sensor B
1870A
Power Splitter
10 dB Fixed
Attenuator
Adapter
A
B
