Quick Start Guide 3-3 Cable & Antenna Analyzer
Cell Master UG PN: 10580-00250 Rev. K 3-7

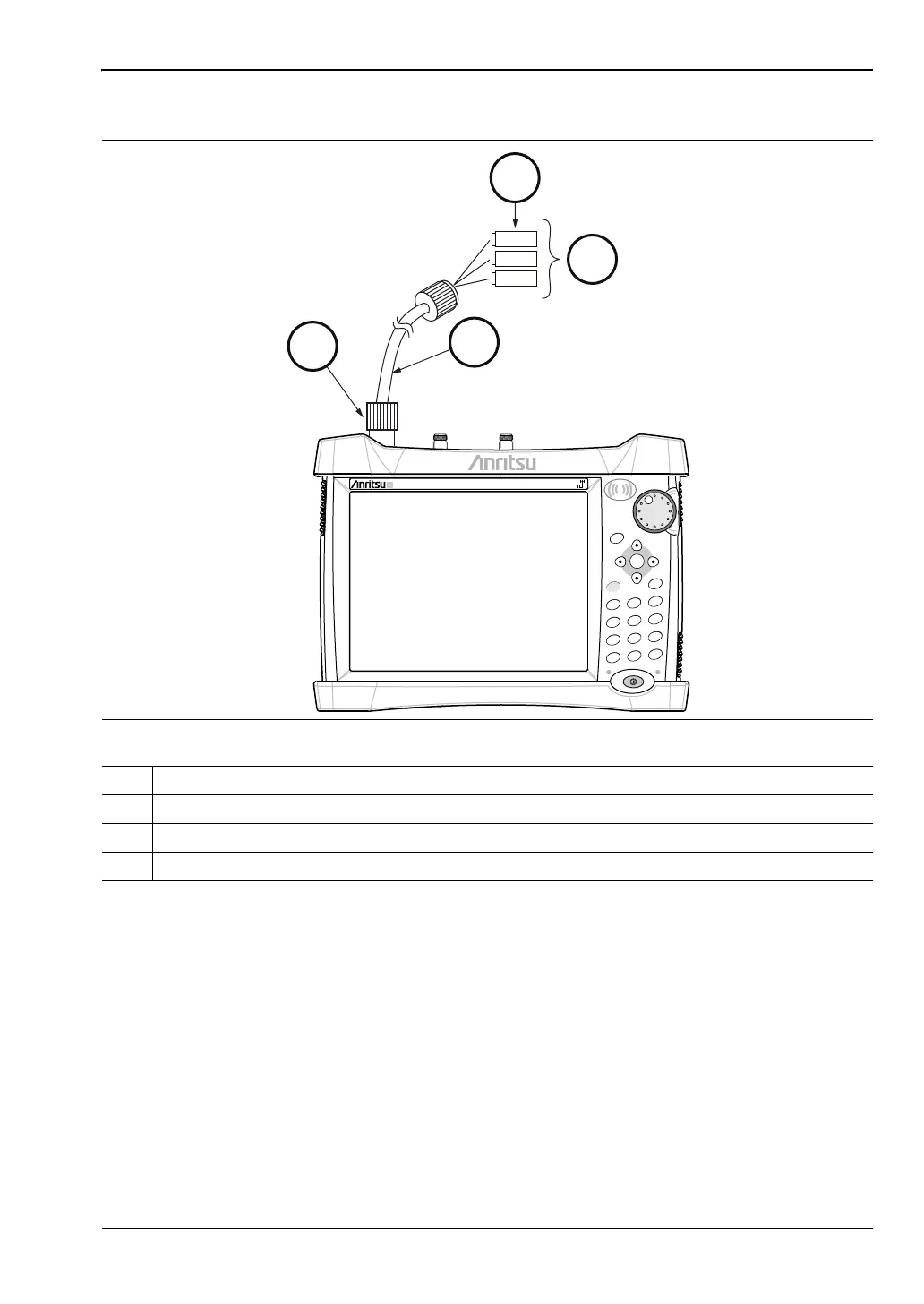

Figure 3-5. Calibration Setup with OSL Cal
1. RF Out / Reflection Test Port
2. Test Port Cable (Optional)
3. Calibration Components (Open, Short, Load)
4. Calibration Test Connection
OPEN
LOAD
SHORT
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Esc
Enter
Menu
CellMaster
MT8212E
CALIBRATION
RF OUT/
REFLECTION
Test Port
TEST PORT CABLE
(OPTIONAL)
1
3
2
4
