ANSER CODING INC. 20 A1 User Interface

1.4.1 Adding Message Objects

In A1 Message Editor, using Add Object “ ” button to start message editing is highly recommended. Press to go to the

Add Object page and eight types of often-used object as the following figure shows. Please refer to the following sections

for step-by-step instructions of adding objects into a message.

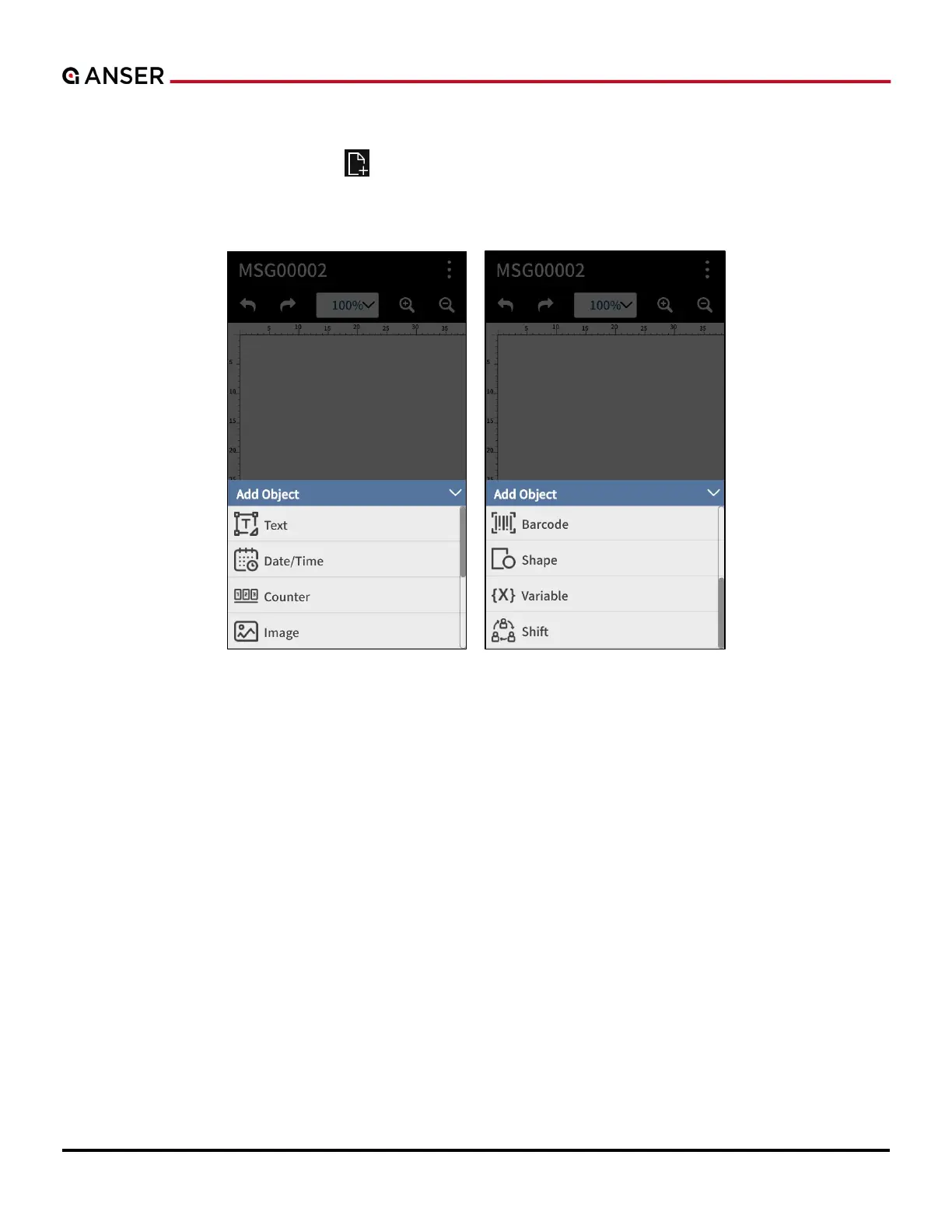

Figure 1-20. Add Eight Types of Object
