ANSER CODING INC. 84 A1 Operation

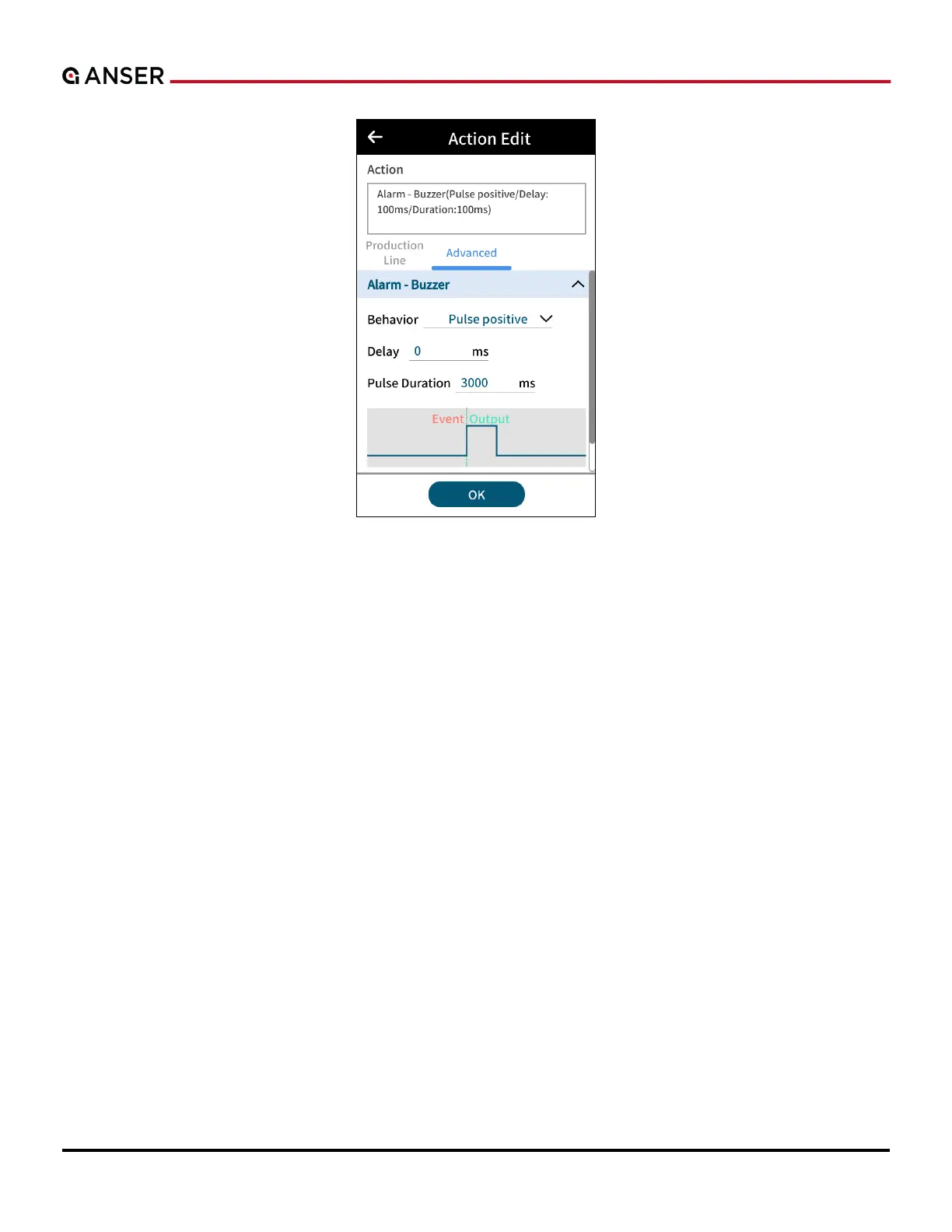

Figure 3-14. Action Settings – Digital Output

3.5.3 Advanced Action Settings

It is possible to set different behavior for each digital output signal.

- Level High: Set the output signal to high. It will remain high until another action changes the status.

- Level Low: Set the output signal to low. It will remain low until another action changes the status.

- Pulse Positive: Increase the output signal.

- Pulse Negative: Decrease the output signal.

 Delay: Set a delay in milliseconds before executing the digital output behavior.

 Pulse Duration: Set a time duration for the positive or the negative pulse options.
