ANSER CODING INC. 66 A1 Printing Setup

2.3.2 Cartridge Idle Alert

In Printhead Settings page, enable Cartridge Idle Alert to select its mode. Whenever the ink cartridge is idle and no

matter which state (on or off) the printing function is, the counter will start to count cartridge idle time.

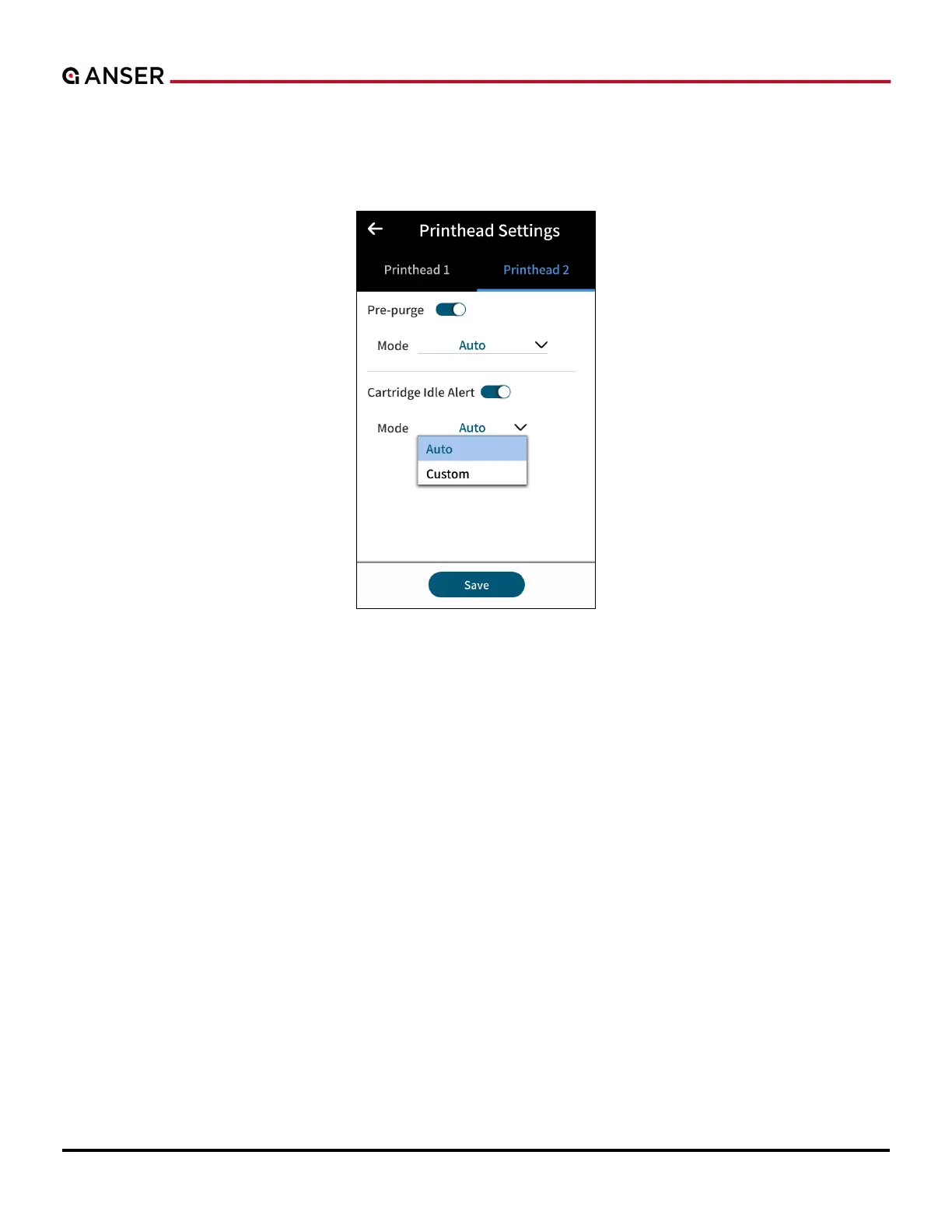

Figure 2-6. Printhead Settings — Cartridge Idle Alert
