ANSER CODING INC. 81 A1 Operation

An event is a condition or status that will trigger certain action. In I/O management, events include digital signal input,

warnings and status alarms. Events can be logically combined in “AND”, “OR”, or “XOR” logic.

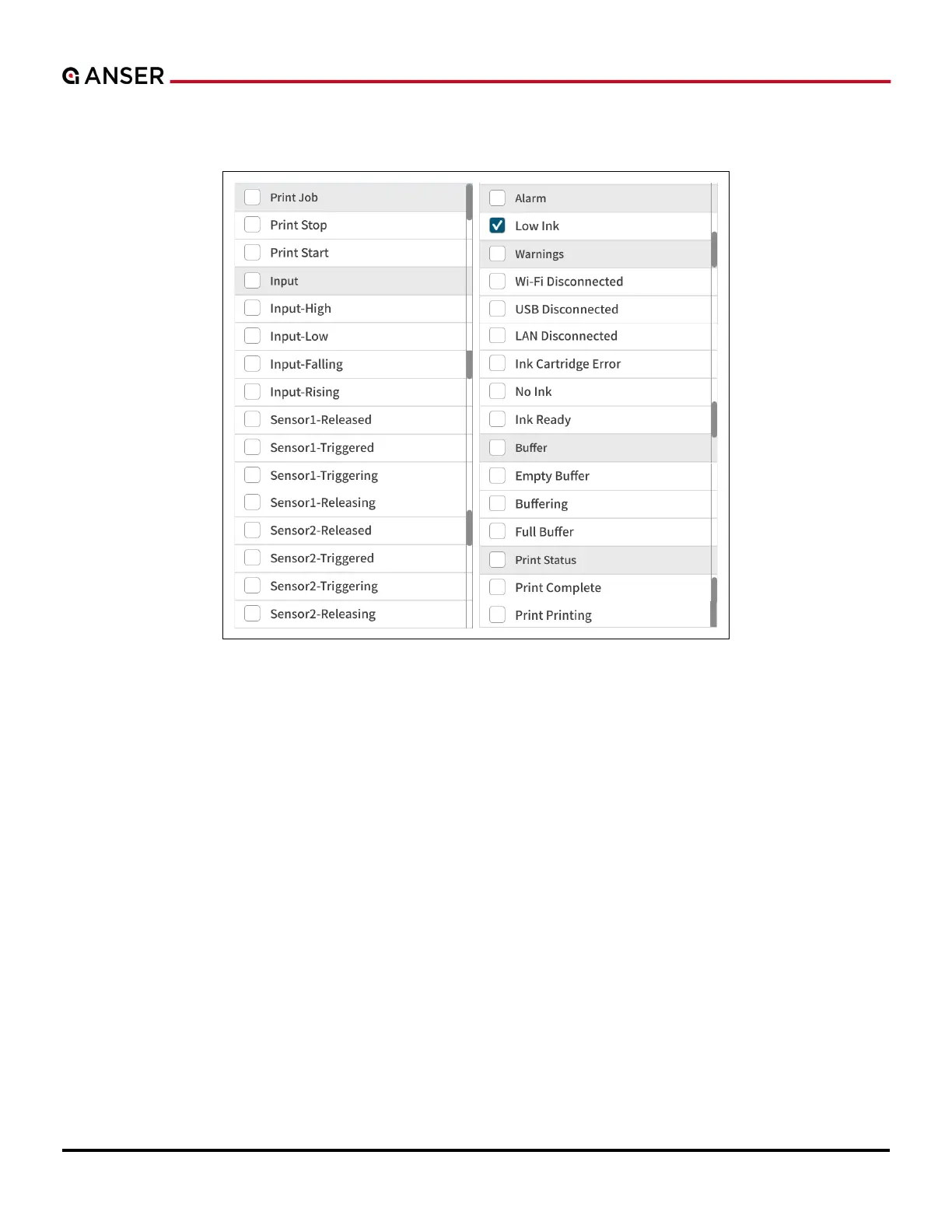

Figure 3-13. I/O Edit – Event List (2)
