Anser A1 - Figure 1-45. Production Line Settings Page; Table 1-7. Production Line and Print Station Settings

ANSER CODING INC. 41 A1 User Interface
Use Edit “ ” to access Production Line & Print Station settings page and set parameters related to the production
line as below Figure 1-45 shows.

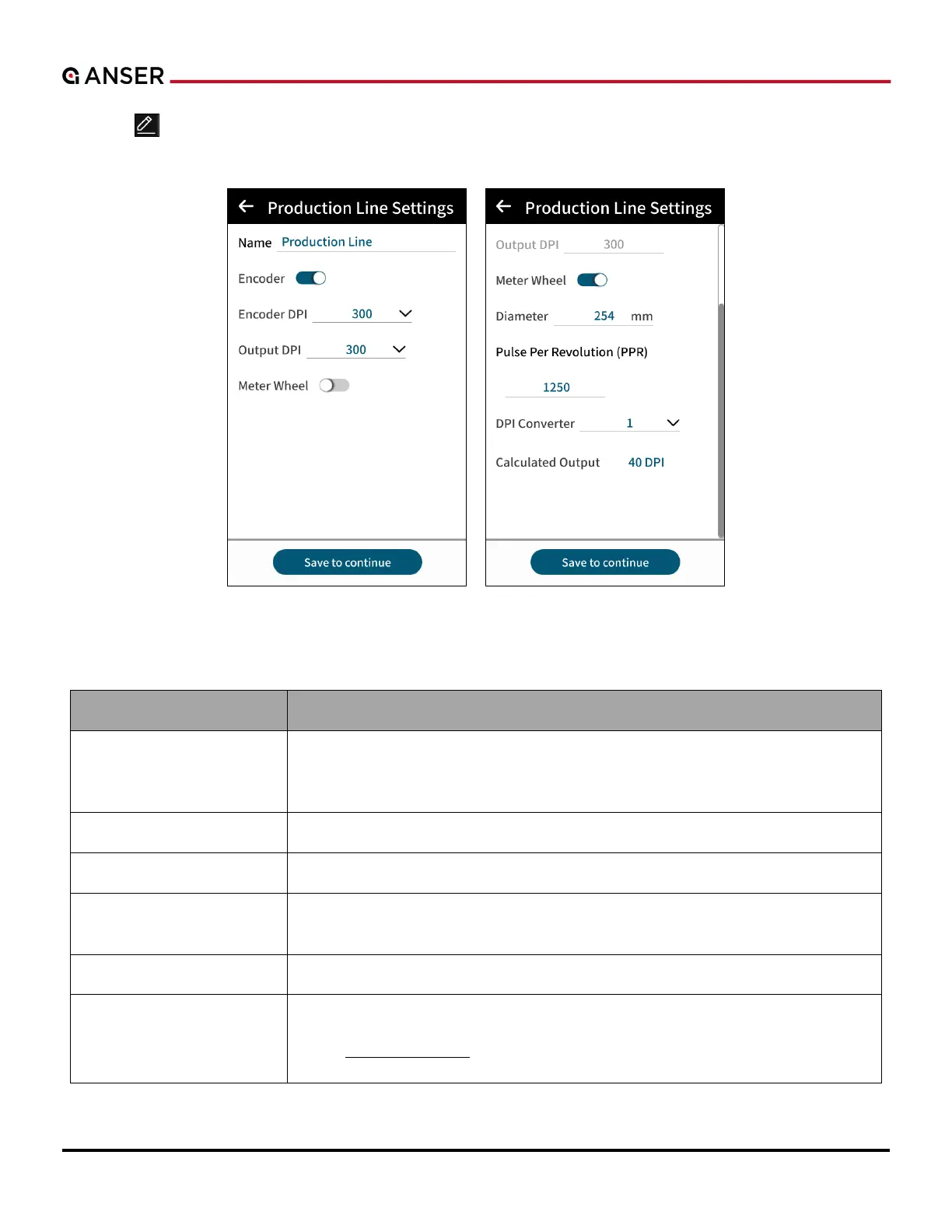

Figure 1-45. Production Line Settings Page
Table 1-7. Production Line and Print Station Settings
Option Description
Encoder Source Encoder is connected to the printer. If encoder option is switched off, i.e., not
connecting encoder, printer will generate the signal with a constant speed by itself.
Please refer to Section 2.1.
Encoder DPI Resolution (DPI) of the encoder.
Output DPI Actual printout DPI. Users can divide encoder DPI into the smaller value.
Meter Wheel Enable the option to use your own encoder. Users can manually input the diameter
and PPR.
DPI Converter Divide encoder DPI by 1 to 8.
Calculated Output Show actual printout DPI calculated by diameter, PPR and DPI converter.
DPI =
PPR ∗ 25.4
D ∗ π ∗ converter
