ANSER CODING INC. 43 A1 User Interface

1.5.2.2 Stitch Print Station Mode

The stitch mode print station allows users to use two half-inch or one-inch printheads, thus achieving prints with a height

of up to two inches. One production line can have one print station in stitch mode.

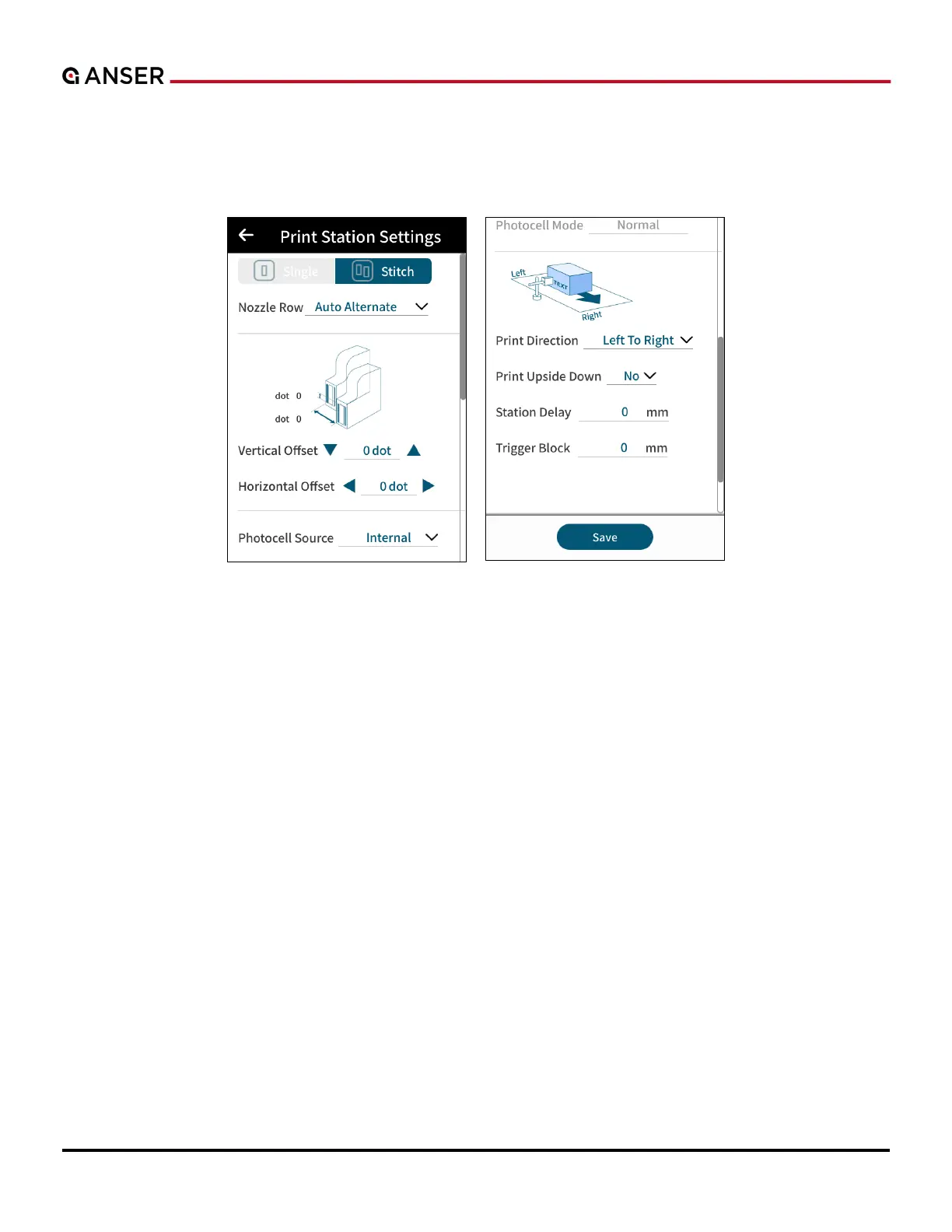

Figure 1-48. Print Station Settings – Stitch Mode
