ANSER CODING INC. 65 A1 Printing Setup

2.3.1 Pre-Purge

These settings enable pre-purge when print quality declines after printing for a period of time. The print quality starts

to deteriorate when working in a hot and dry environment. In such an environment, the cartridge nozzles tend to dry

out much faster than in normal environment conditions.

Pre-purge releases drop of ink from time to time keeping nozzles moist when cartridge is idle (in printing mode but no

printing). Users can define the time cycle (when) to purge the nozzles as well as the level (amount of ink drops) used per

each purge. Please refer to Table 1-8.

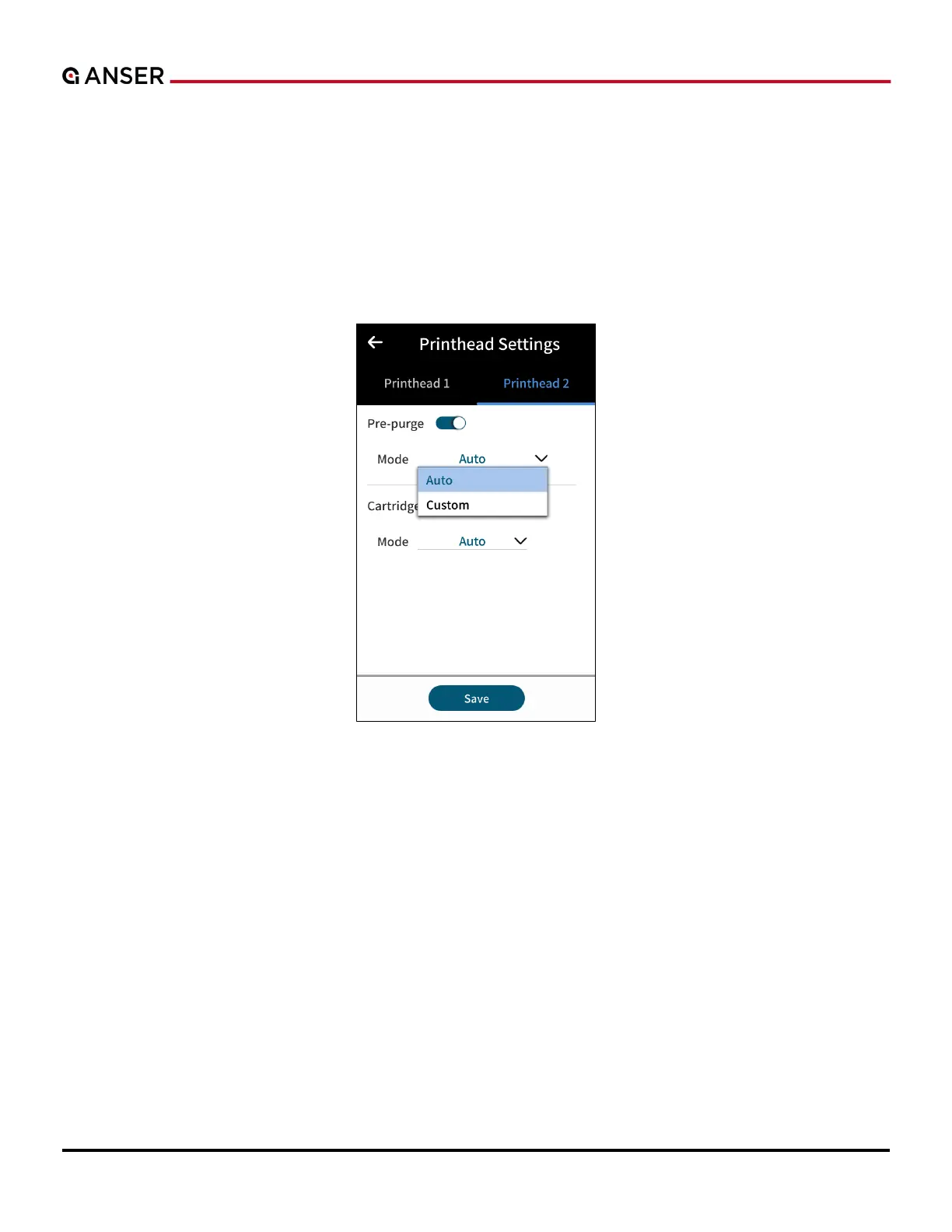

Figure 2-5. Printhead Settings — Pre-Purge
