Controls - Cab
3-3
3
P/N 6525032M1 - X6
DRIVER'S SEAT
Various types of seat can be fitted: The type of seat is dictated by market requirements and by the tractor's specifications.
WARNING: Danger! Danger of losing control.
DO NOT adjust the seat while the machine is running. All adjustment to the seat must be carried out while
the machine is at standstill and with the parking brake engaged. Failure to comply with these directions
could cause injuries or death.
We recommend a seat adjustment that guarantees a safe driving even in harsh conditions. To avoid dangers, comply
with the following directions:
WARNING: The driver's seat must be mounted or repaired only by skilled personnel.
Check at regular intervals that the retainer screws are perfectly tightened and that the adjustment controls are normally
operating, to guarantee safety and stability during work.
The driver's seat is provided with controls to adjust its suspension, height and distance from the controls. Therefore it is
possible to choose the adjustment position most suitable and change it even during work.
Seat in setup with air suspension (Fig. 3-1)
1. Adjustment to operator's weight
2. Seat height adjustment
3. Longitudinal shock absorber
(*)
4. Seat distance adjustment
(**)
5. Cushion tilt adjustment
(*)
6. Seat depth adjustment
(*)
7. Head restraint
(*) (**)
8. Manual or electrical adjustment of the lumbar sup-
port
(**)
9. Height adjustment of armrests
(*)
10. Tilt adjustment of armrests
(*)
11. Back rest adjustment
(**)
12. Seat swiveling
(*)
13. Seat heating control
(*)
14. Seat suspension adjustment
(*)
(*)
if installed
(**) according to model

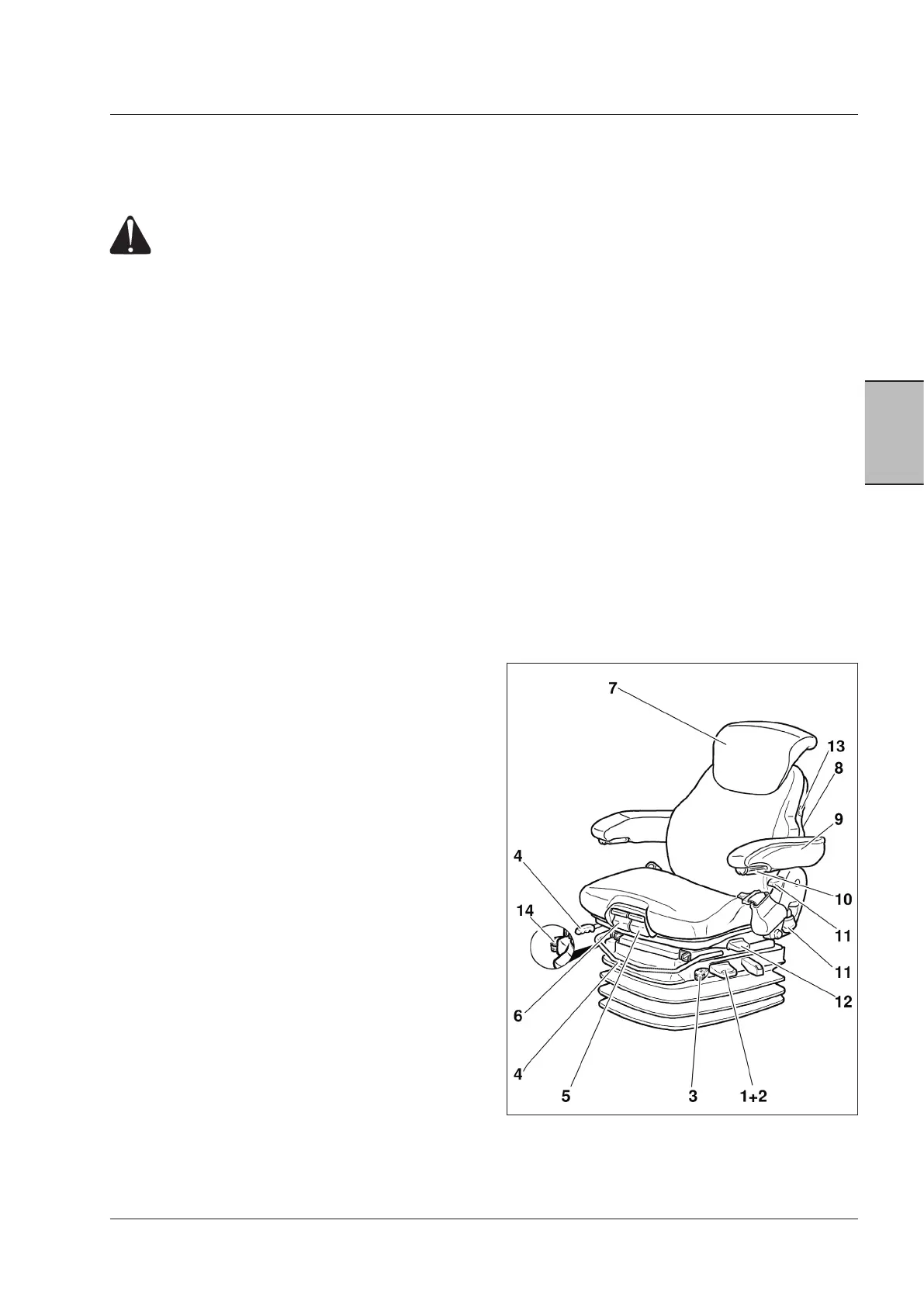

Fig. 3-1
