Controls - Cab
X6 - P/N 6525032M1
1. Adjustment to operator's weight (Fig. 3-2)
The seat should be adjusted to the operator's weight, with
the operator sitting in it.
For this adjustment, pull out or push the lever (1) until the
weight indicator (2) turns green.
NOTE: To avoid any health hazards, the adjustment to
the operator's weight should be checked and eventually
adjusted before beginning the use of the tractor.

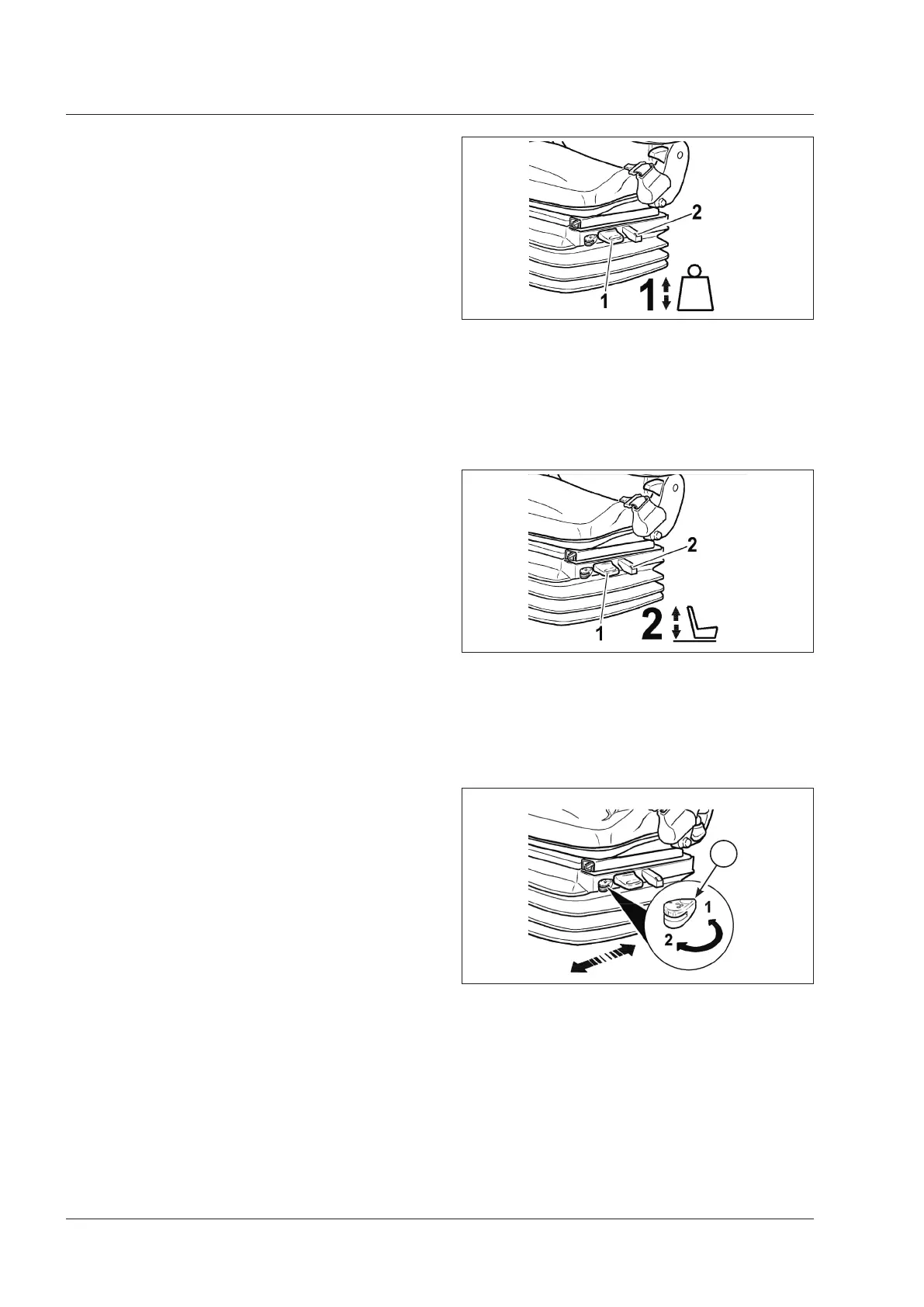

Fig. 3-2
2. Seat height adjustment
(Fig. 3-3)
WARNING: Check that the weight indicator (2) is green;
otherwise, carry out the adjustment.
To adjust the height of the seat, pull up or push down
the lever (1).
Fig. 3-3
Fig. 3-4
A
3. Longitudinal shock absorber (if installed)
(Fig. 3-4)
In certain conditions (e.g. when using a trailer), the longi-
tudinal shock absorber should be enabled to cushion any
impacts in the drive direction.
Shift the lever (A) to:
• Position 1 = horizontal shock absorber ON
• Position 2 = horizontal shock absorber OFF
The lever (2) should snap into the required position when it
is shifted to the position 1. To this purpose, the seat should
be pushed back until it snaps into position ad is locked.
