Controls - Cab
3-5
3
P/N 6525032M1 - X6

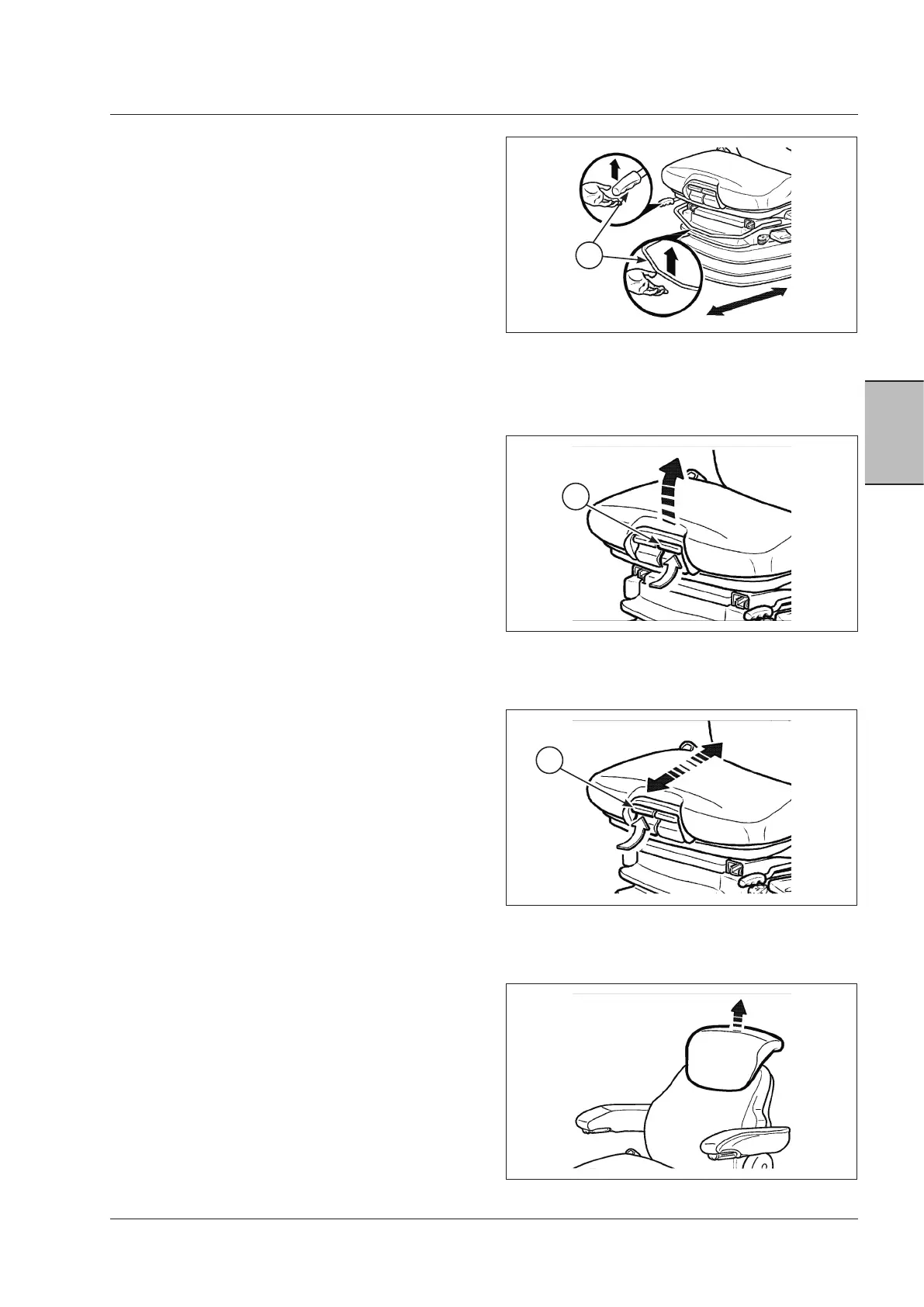

4. Longitudinal adjustment of seat (depends on
model) (Fig. 3-4)
Lift the lever (1) to adjust the seat distance.
After the adjustment, release the lever (1) to lock the seat.
The lever must snap into its correct position with a click-
ing sound. The seat must remain blocked after the lever
(1) has been released.
WARNING: do not lift the lock lever with your leg or calf.
5. Cushion tilt adjustment (if installed)
(Fig. 3-6)
Pull up the left-hand handle (1) and at the same time apply
or release pressure on the seat's cushion until the required
position is found.
Release the left-hand handle (1) to lock the tilt.
6. Seat depth adjustment
(if installed) (Fig. 3-7)
Pull up the right-hand handle (1) and at the same time
shift the seat's cushion to and fro until the required posi-
tion is found.
Release the right-hand handle (1) to lock the position.
Fig. 3-5
Fig. 3-6
1
Fig. 3-7
1
1
7. Head restraint
(Fig. 3-8)
Pull up or push down the head restraint to adjust its height
with pre-set increments.
Pull the head restraint vigorously until the stop at end of
travel is overcome.
Fig. 3-8
