Controls - Cab
3-11
3
P/N 6525032M1 - X6

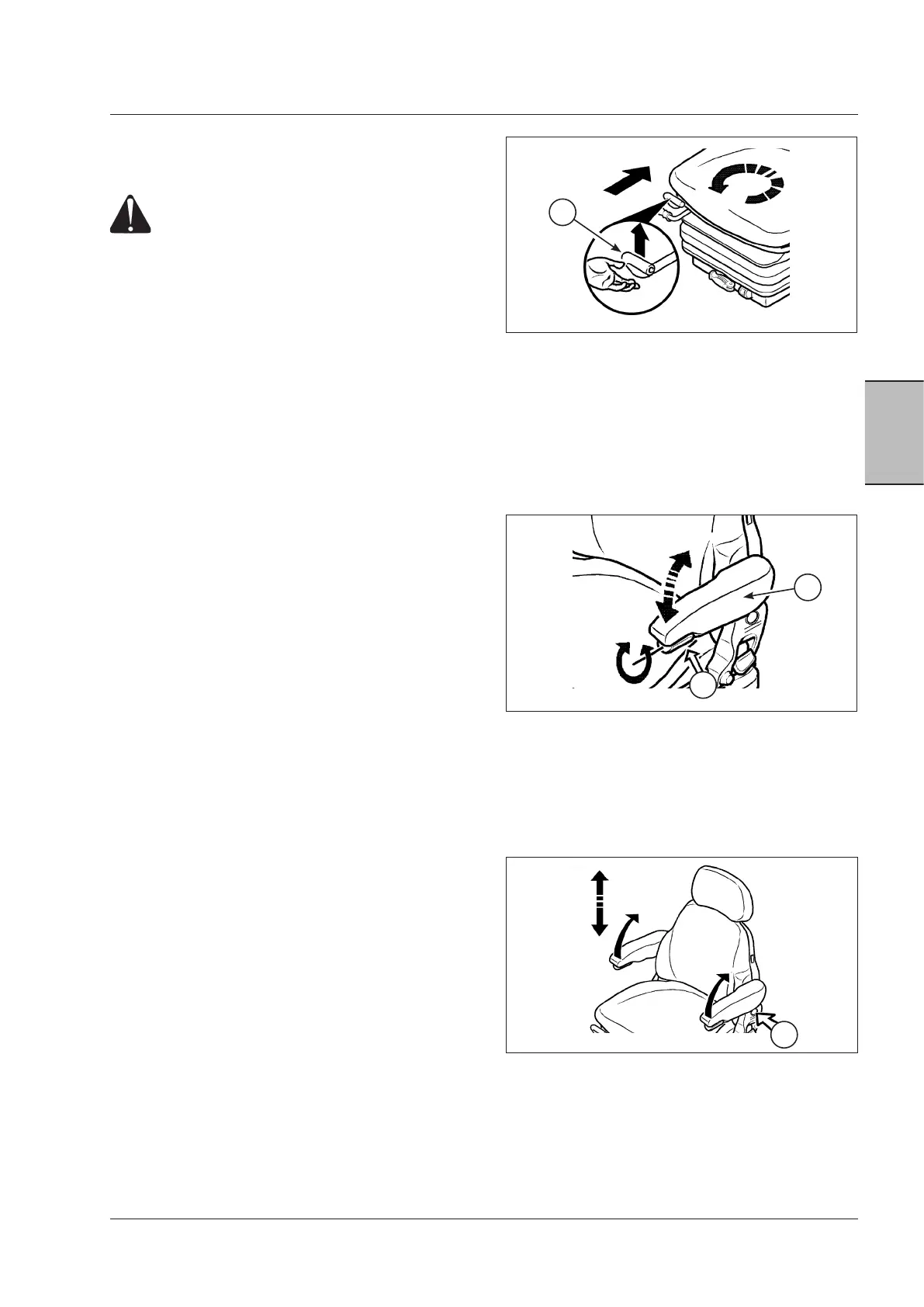

5. Seat swiveling
(Fig. 3-20)
WARNING: Danger! Danger of losing control.
DO NOT use the lever that blocks the seat
swiveling while driving.
Lift up the lever (1) while pushing the seat to its end of
travel, so that the seat swiveling stop is released: now
the seat can be swiveled 180° to the left.
After adjustment of the seat, operate the locking lever
that should snap into the required position with a click-
ing sound.
IMPORTANT:
the correct driving position is with the seat
in central position.
Fig. 3-20
1
6. Tilt adjustment of armrests
(if installed) (Fig. 3-21)
To adjust the tilt of the armrests (1), turn the knob (2)
under the armrest.
Turn the knob:
• to the outer side of the seat to tilt the armrest up,
• to the inner side of the seat to tilt the armrest down.
Fig. 3-21
1
2
7. Height adjustment of armrests (if provided)
(Fig. 3-22)
The armrests can be tilted back and adjusted in their
height as required by the operator.
To adjust the height of the armrests:
• Remove the protective panel (1).
• Loosen the nut behind the panel.
• Raise or lower the armrests to adjust their height.
• Tighten the nut and fit the protective panel (1) back
again.
Fig. 3-22
1
