3-10
Controls - Cab
X6 - P/N 6525032M1
3. Seat distance adjustment
(Fig. 3-18)
Lift the lever (1) to adjust the seat distance.
After the adjustment, release the lever (1) to lock the seat.
The lever must snap into its correct position with a click-
ing sound. The seat must remain blocked after the lever
(1) has been released.
Fig. 3-18
1
4. Seat distance adjustment
(Fig. 3-19)
Lift the lever (1) to adjust the seat distance.
After the adjustment, release the lever (1) to lock the seat.
The lever must snap into its correct position with a click-
ing sound. The seat must remain blocked after the lever
(1) has been released.
Fig. 3-19
1

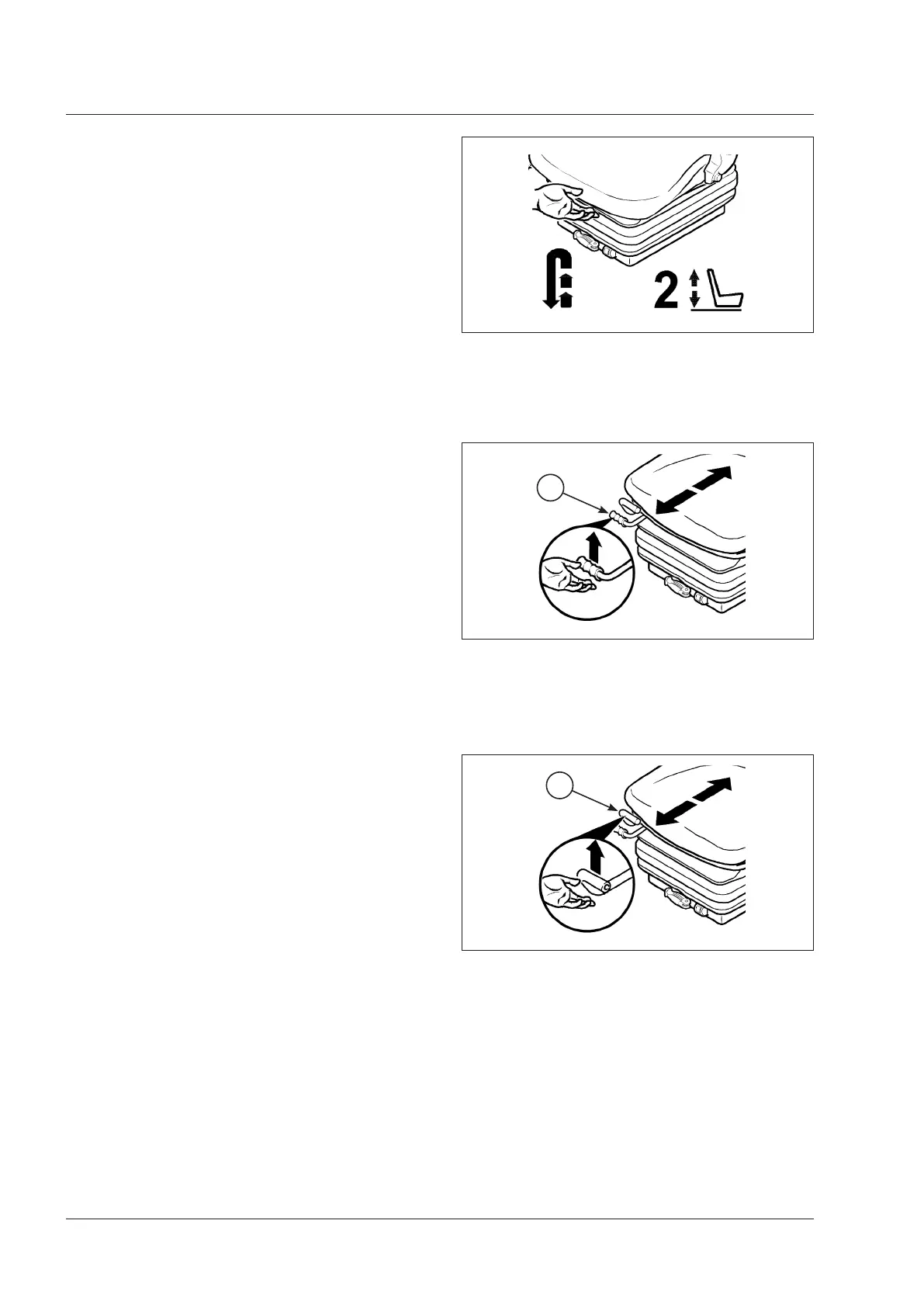

2. Seat height adjustment (Fig. 3-17)
Lift the seat to the required height, until you here the
snapping sound of the stop that locks the seat in the
required position.
If the seat is lifted beyond the maximum height (end of
travel), the seat will automatically drop down to its low-
est position.
Fig. 3-17
