Controls - Cab
3-9
3
P/N 6525032M1 - X6
1. Adjustment to operator's weight
2. Height adjustment
3. Seat distance adjustment
4. Seat distance adjustment
5. Seat swiveling adjustment
6. Tilt adjustment of armrests
(*)
(**)
7. Height adjustment of armrests
(*)
(**)
8. Head restraint
(*)
(**)
9. Seat suspension adjustment
10. Seat swiveling
11. Longitudinal shock absorber
12. Longitudinal shock absorber
13. Cushion tilt adjustment
(*)
if installed
(**) according to model

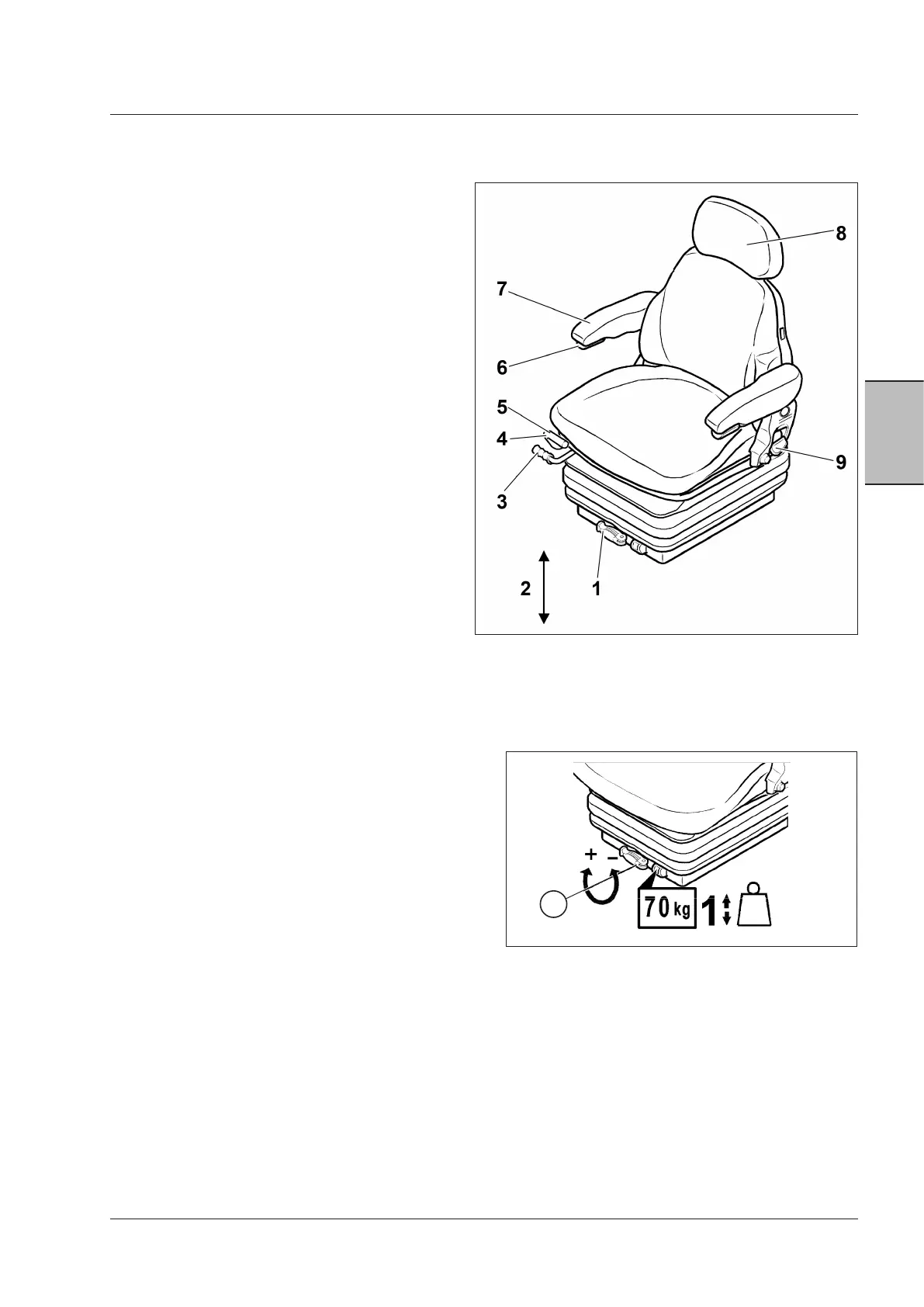

Fig. 3-15
1. Adjustment to operator's weight (Fig. 3-16)
To adjust the operator's weight turn the lever (1) in clock-
wise (+) or anticlockwise (-) direction with an unoccupied
seat. The weight to be set with this adjustment can be
read on the indicator on the seat itself.
NOTE: To avoid any health hazards, the adjustment to
the operator's weight should be checked and eventually
adjusted before beginning the use of the tractor.
Fig. 3-16
Seat in setup with mechanical suspension (Fig. 3-15)
1
