Front field lights switch

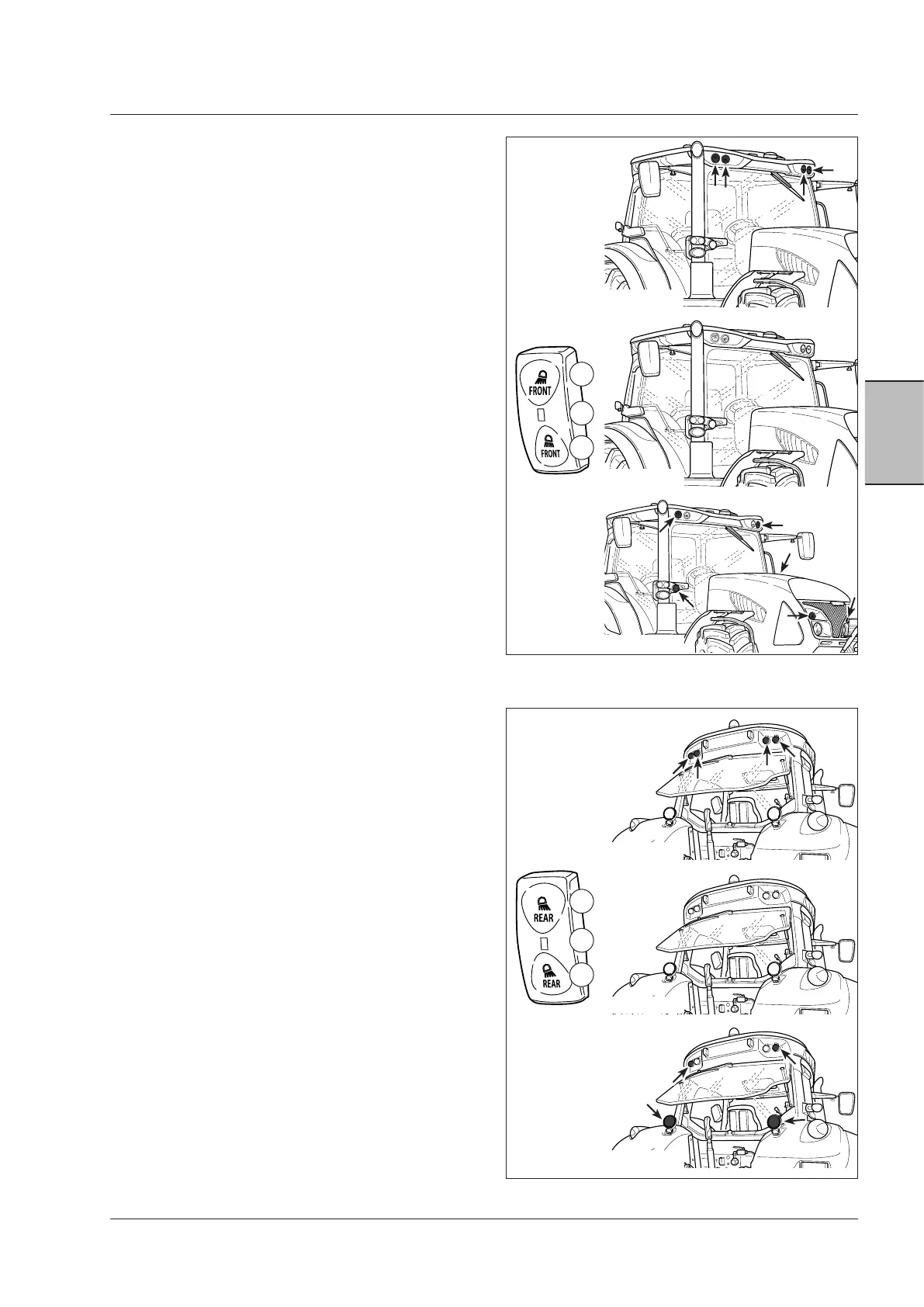

(Fig. 3-45
Pos. A: all front field lights on the roof are on (4 lights
in total).
Pos. 0: all front field lights on the roof are off.
Pos. B: only the following field lights are on:
• 2 outer front lights on the roof
• 2 front lights on the handrails
• 2 front field lights on bonnet
Rear field lights switch
(Fig. 3-46)
Pos. A: all rear field lights on the roof are on (4 lights in
total)
Pos. 0: all rear field lights on the roof are off.
Pos. B: only the following lights are on:
• 2 outer rear lights on the roof
• 2 rear lights on the cab rear fenders.
• The presetting in the 7-pin rear socket is
enabled.
Fig. 3-45
Fig. 3-46
A
B
0
Pos. 0
Pos. A
Pos. B
A
B
0
Pos. 0
Pos. A
Pos. B
