Pset STwrench User Guide

112 (326) 9836 4134 01 Edition 2.9

Yellow LED

Angle result between Cycle Start and Min. Angle, or torque between Min. Torque

and Max. Torque with angle under the Min. Angle.

If Measure torque/Angle at

is set to Angle peak, the Start Final Angle value is

used instead of the Cycle Start.

Green LED

Torque and angle results within maximum and minimum limits.

Red LED

Torque result over Max. Torque or angle result over Max. Angle.

NOTE: The result LED indicating the result of the tightening is activated only when the tightening operation is

completed.

First row of yellow LEDs

Torque over 1

percentage (if Torque Peak is selected in the torque

parameter of the Pset definition).

Angle over 1

percentage (if Angle Peak is selected in the torque parameter

of the Pset definition).

Second row of yellow LEDs

Torque over 2

percentage (if Torque Peak is selected in the torque

parameter of the Pset definition).

Angle over 2

percentage (if Angle Peak is selected in the torque parameter

of the Pset definition).

Third row of yellow LEDs

Torque and angle within the minimum and maximum limits; torque or angle

having reached the target value.

It is also activated if torque or angle goes over the maximum value.

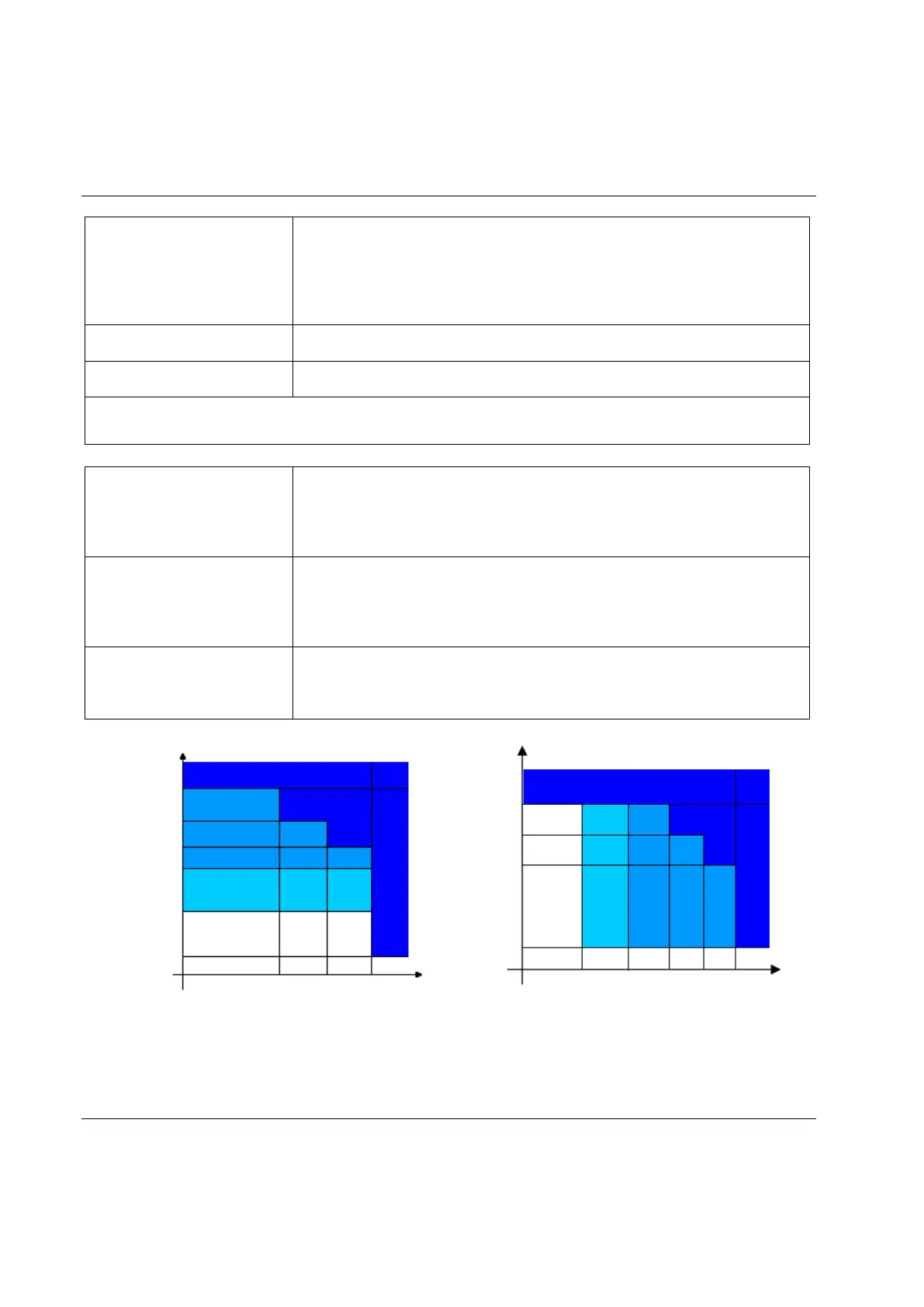

Torque Peak Angle Peak

Torque

Angle

percentage

Target Torque

Max. Torque

Max. Angle

Cycle start

Target Angle

Min. Torque

Min. Angle
