Pset STwrench User Guide
130 (326) 9836 4134 01 Edition 2.9

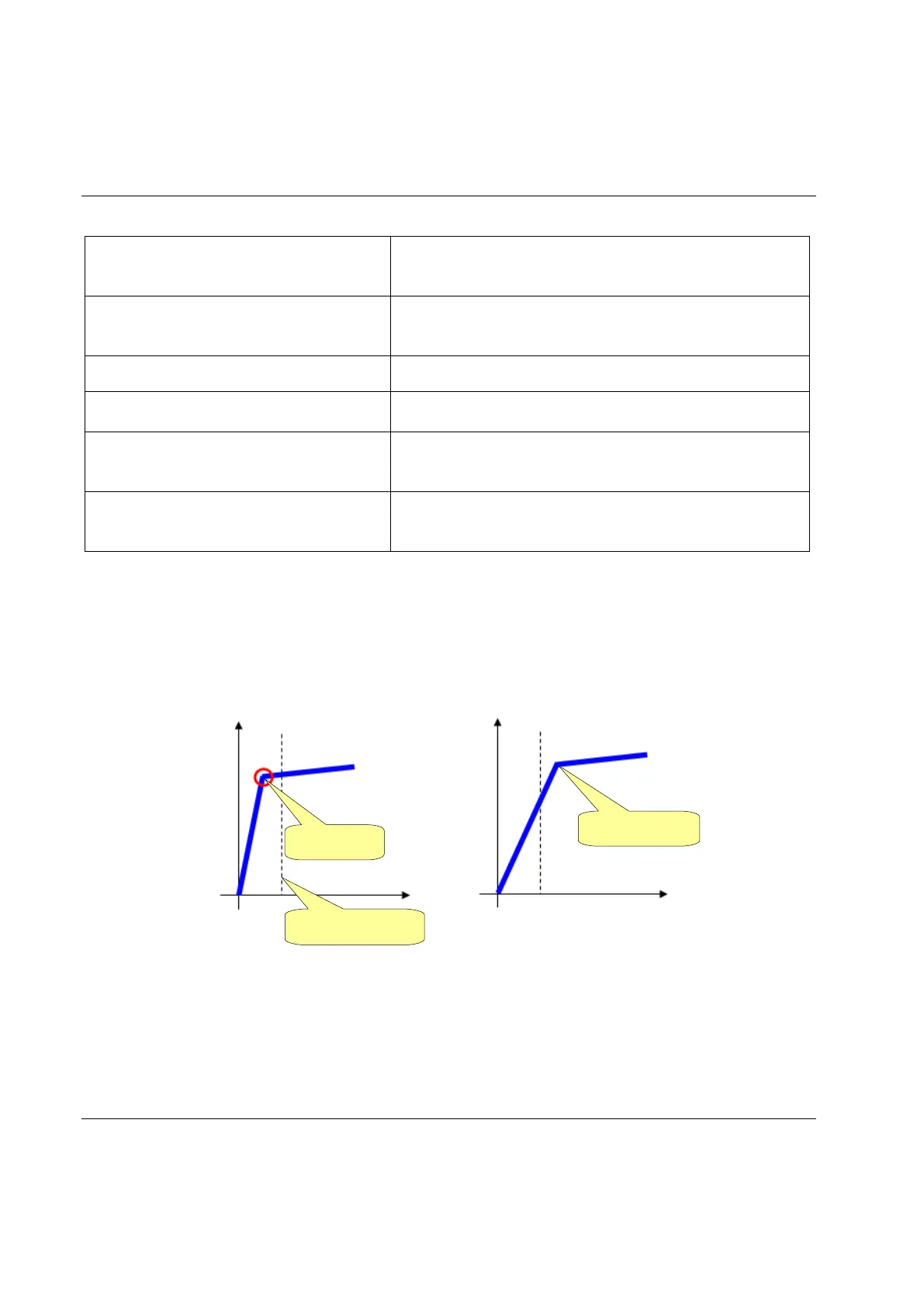

Torque over Cycle Start value, or click-point not detected
(and torque not exceeding the maximum value).
Result OK. The residual point is detected within the torque
limits.
First, second, and third row of yellow
LEDs
Residual point is detected.
Activated when the torque goes over Cycle Start value.
Increase its signal when the residual point is detected.
Activated when the residual point is detected, and remains
active for one second.
In the Pset parameters of the residual torque/angle strategy there are two adavanced parameters:
• Concave-down point threshold
It specifies the maximum angle for the residual torque (measured from the Start Final Angle).
Over this angle the test result is marked as “not detected”.
The default value is 3 degrees.
