Introduction STwrench User Guide
20 (326) 9836 4134 01 Edition 2.9
• QATnode:
- Input power: 100 ÷ 230 VAC
- AC fuse: F5AL 250V (in AC power socket)
- AC power consumption: 15 W average
- 6 inputs: 12 ÷ 24 VDC (20 mA input current) for high status
- 5 relays outputs: 24 VDC 1 A max
- Serial port for STAR printer connection
- 2 serial ports for settings and maintenance activities
- IRDA 1.2 SIR, 1m range
- Ethernet port

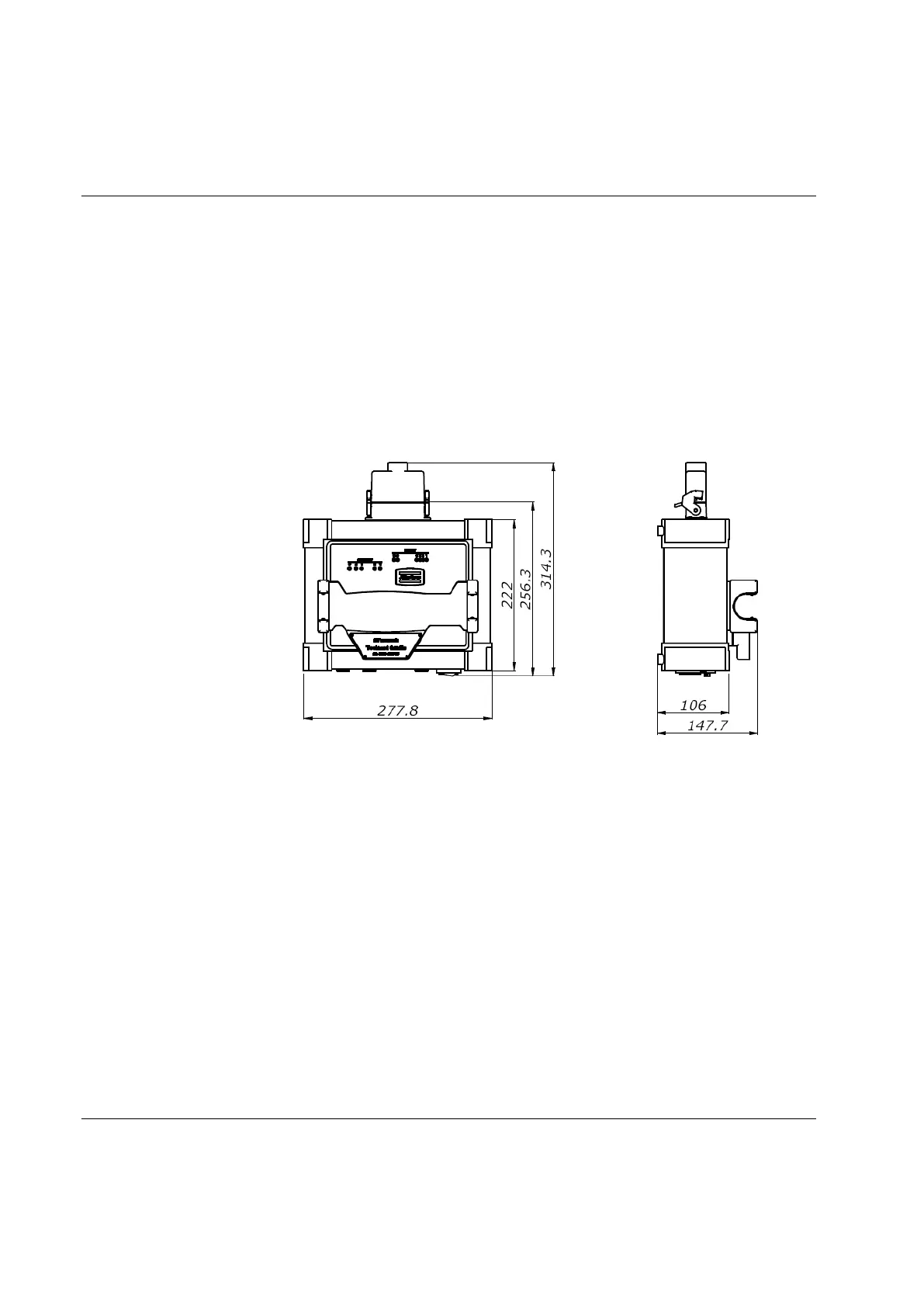

- Dimensions (in millimeters):
- Weight: 4.26 kg
• RFID reader for end-fitting tool recognition (inside smartHEAD):
- Working frequency: 125 kHz
- Manchester coding
ENVIRONMENTAL
The following conditions must be observed during operation:
• Internal use only
• Environmental class: II
• IP grade according to EN IEC 60529: IP40
• Ambient temperature: 5 to 40°C
• Atmospheric humidity: 95%, non-condensing
• Altitude: Up to 2000m
• Shock indicator on STwrench controller.
