NOTE: There is a slight millisecond delay between when the
input is provided to the QATnode and when the action selected
is executed on the wrench. It is possible to use the output
“program loaded” (see next paragraph for more information of
the outputs) to verify that the STwrench has received the
tightening program.
If selected, the specified input cannot be used to define the
various configurations.

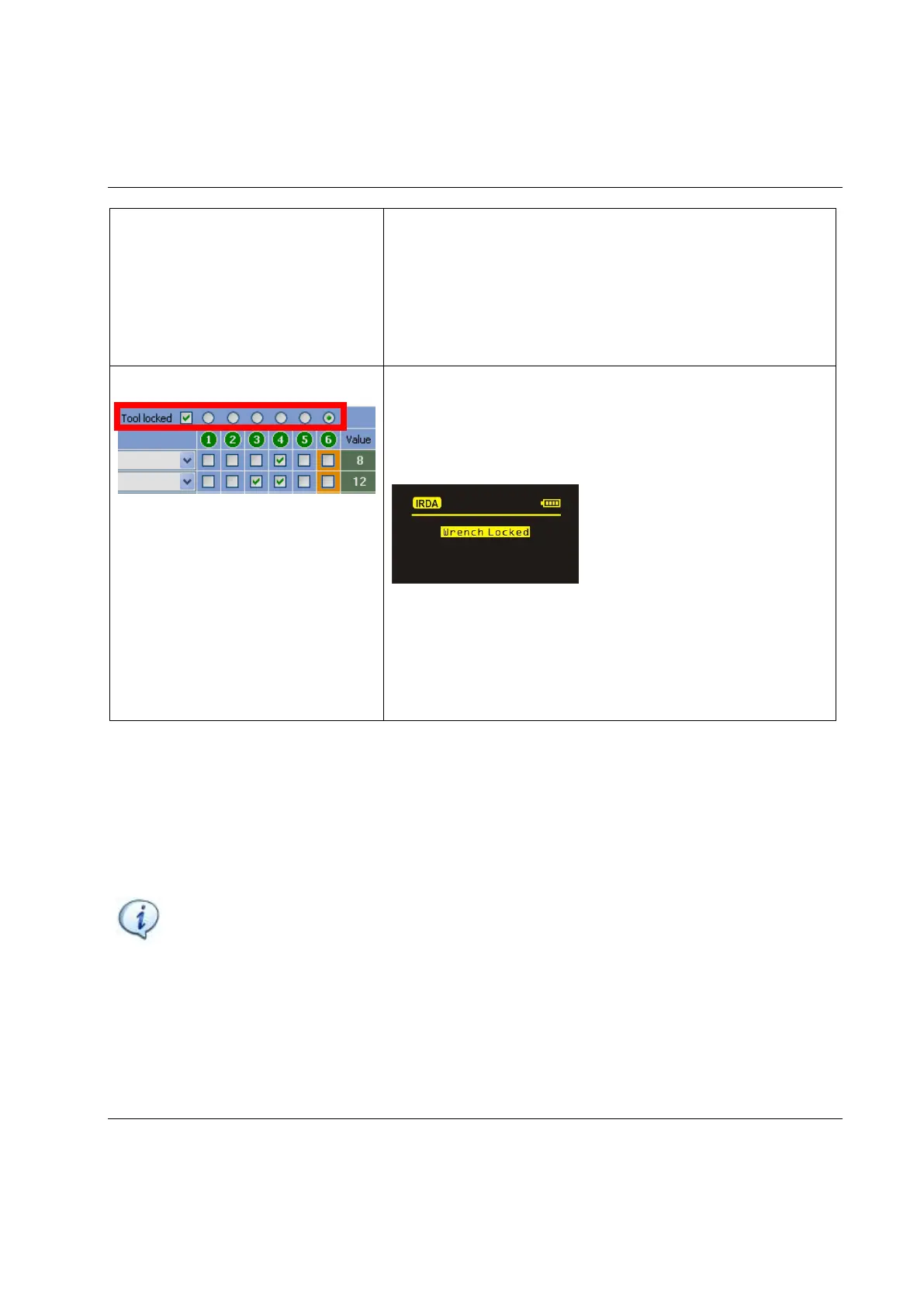

The input is reserved to put the STwrench in the Tool Locked
mode; when the input is activated, the STwrench will be locked
and the following message is shown on the display:
For an IRC-W connection, any ongoing Pset will be completed
(and the outputs are set according to the results) before the
wrench goes into Tool Locked mode.
For an IRDA connection, the wrench goes into Tool Locked
mode when it is put back on the QATnode.
Once the configuration is done, click on Store to save.
NOTES:
- If the input to select a tightening program is left active, the same program is started on
the wrench at the end of the tightening operation (Pset/Multistage/Job); for an IRDA
connection, the wrench needs to be put on the QATnode, while for an IRC-W
connection, the new program starts immediately.
- For an IRC-W connection, if the input configuration is changed during the tightening
operation and the new configuration selects a different tightening program, the ongoing
tightening operation will be interrupted and the new tightening program will be started.
- For an IRC-W connection, if the “idle” mode is selected during a tightening operation,
the current Pset/Multistage/Job will be completed before entering the “idle” mode.
