User's Manual 358 Document #: LTRT-27045
Mediant 1000B Gateway & E-SBC
Item # Description
For more information on configuring Media Realms, see ''Configuring Media Realms'' on
page 309.

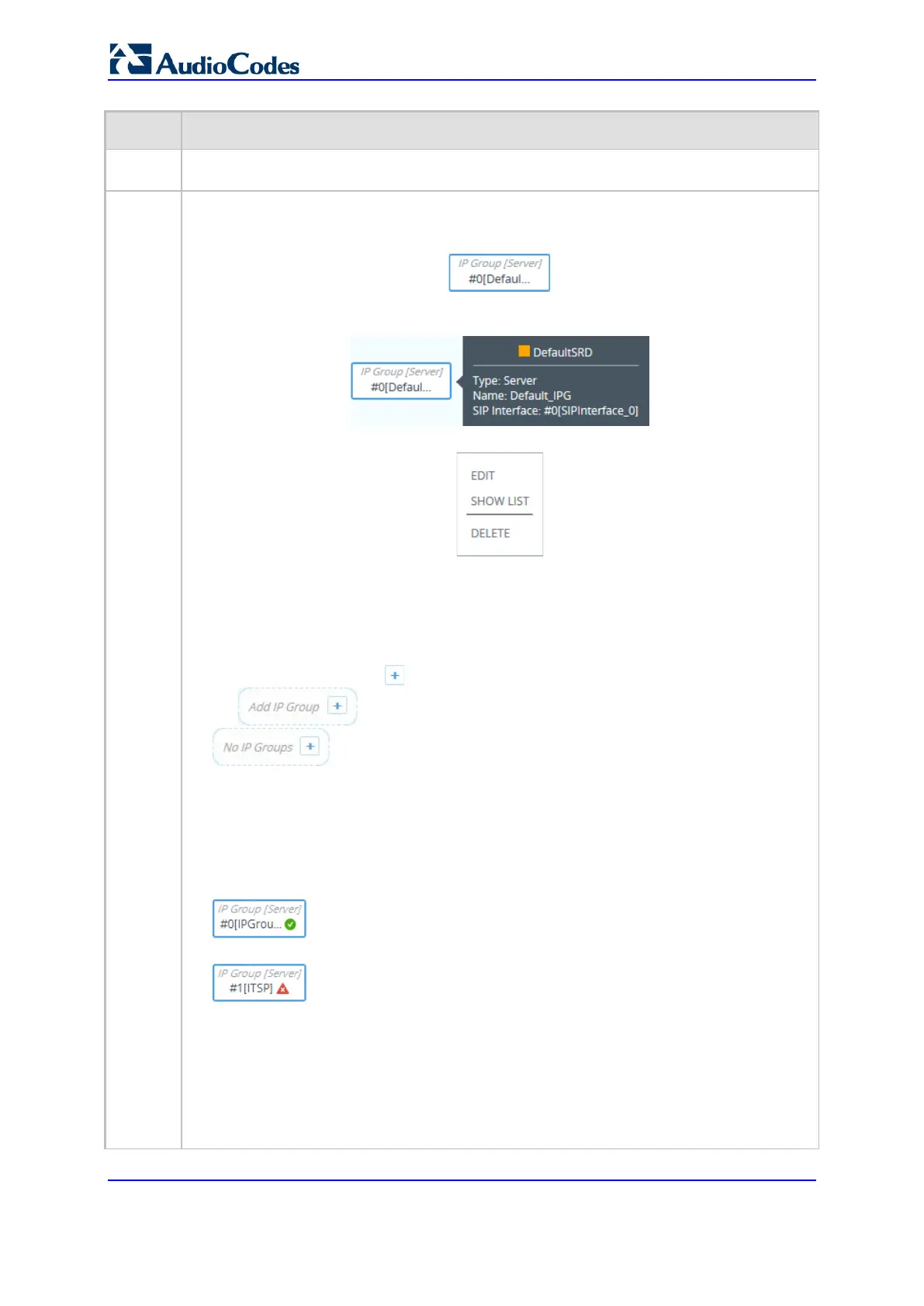

4 Configured IP Groups. Each IP Group is displayed using the following "IP Group [Server]"
or "IP Group [User]" titled icon (depending on whether it's a Server- or User-type IP Group
respectively), which includes the name and row index number (example of a Server-type):
If you hover your mouse over the icon, a pop-up appears displaying the following basic
information (example):
If you click the icon, a drop-down menu appears listing the following commands:
 Edit: Opens a dialog box in the IP Groups table to modify the IP Group.
 Show List: Opens the IP Groups table.
 Delete: Opens the IP Groups table where you are prompted to confirm deletion of the
IP Group.
To add an IP Group, do the following:
1 Click the Add IP Group plus icon. The icon appears next to existing IP Groups, or
as when no IP Groups exist on a topology border, or as
when there are no IP Groups at all.
The IP Groups table opens with a new dialog box for adding a IP Group to the next
available index row.
2 Configure the IP Group as desired, and then click Apply; the IP Groups table closes
and you are returned to the Topology View, displaying the new IP Group.
For more information on configuring IP Groups, see ''Configuring IP Groups'' on page 333.
IP Group icons also display connectivity status with Server-type IP Groups:
 (Green with check mark): Keep-
alive is successful and connectivity exists
with IP Group.
 (Red with "x"): Keep-alive has failed and there is a loss of connectivity
with the IP Group.
The line type connecting between an IP Group and a SIP Interface indicates whether a
routing rule has been configured for the IP Group. A solid line indicates that you have
configured a routing rule for the IP Group; a dashed line indicates that you have yet to
configure a routing rule.
Note:
 You can also view connectivity status in the IP Groups table.
