To configure the IPSec Association table:
1. Open the IP Security Associations Table page (Configuration tab > VoIP menu >
Security submenu > IPSec Association Table).
2. Click the Add button; the following dialog box appears:

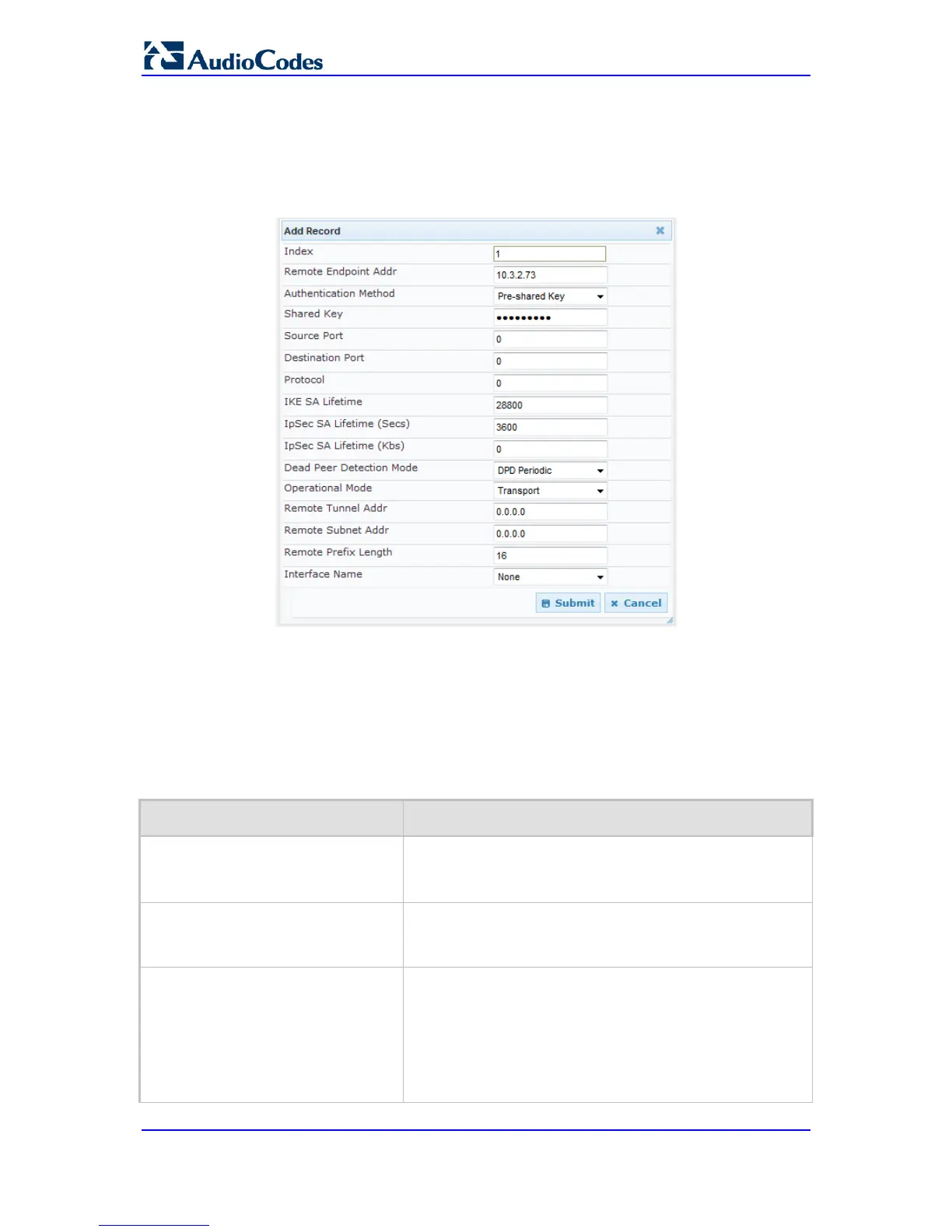

Figure 12-5: IP Security Associations Table Page - Add Record Dialog Box
3. Configure the parameters, as required. In the above figure, a single IPSec/IKE peer
(10.3.2.73) is configured. Pre-shared key authentication is selected with the pre-
shared key set to 123456789. In addition, a lifetime of 28800 seconds is set for IKE
and a lifetime of 3600 seconds is set for IPSec. For a description of the parameters,
see the table below.
4. Click Submit.
5. To save the changes to flash memory, see 'Saving Configuration' on page 324.
Table 12-5: IP Security Associations Table Configuration Parameters
Parameter Name Description
Operational Mode
[IPsecSATable_IPsecMode]
Defines the IPSec mode of operation.
[0] Transport (default)
[1] Tunnel
Remote Endpoint Addr
[IPsecSATable_RemoteEndpointAd
dressOrName]
Defines the IP address or DNS host name of the peer.
Note: This parameter is applicable only if the Operational
Mode is set to Transport.
Authentication Method
[IPsecSATable_AuthenticationMeth
od]
Defines the method for peer authentication during IKE main
mode.
[0] Pre-shared Key (default)
[1] RSA Signature = in X.509 certificate
Note: For RSA-based authentication, both peers must be
provisioned with certificates signed by a common CA. For
more information on certificates, see 'Replacing the Device's
To Next Page
