AudioCodes MediaPack MP-118 User Manual

Version 6.6 293 MP-11x & MP-124
User's Manual 26. SAS Overview
26.2 SAS Routing
This section provides flowcharts describing the routing logic for SAS in normal and
emergency states.
26.2.1 SAS Routing in Normal State
The flowchart below displays the routing logic for SAS in normal state for INVITE
messages received from UAs:

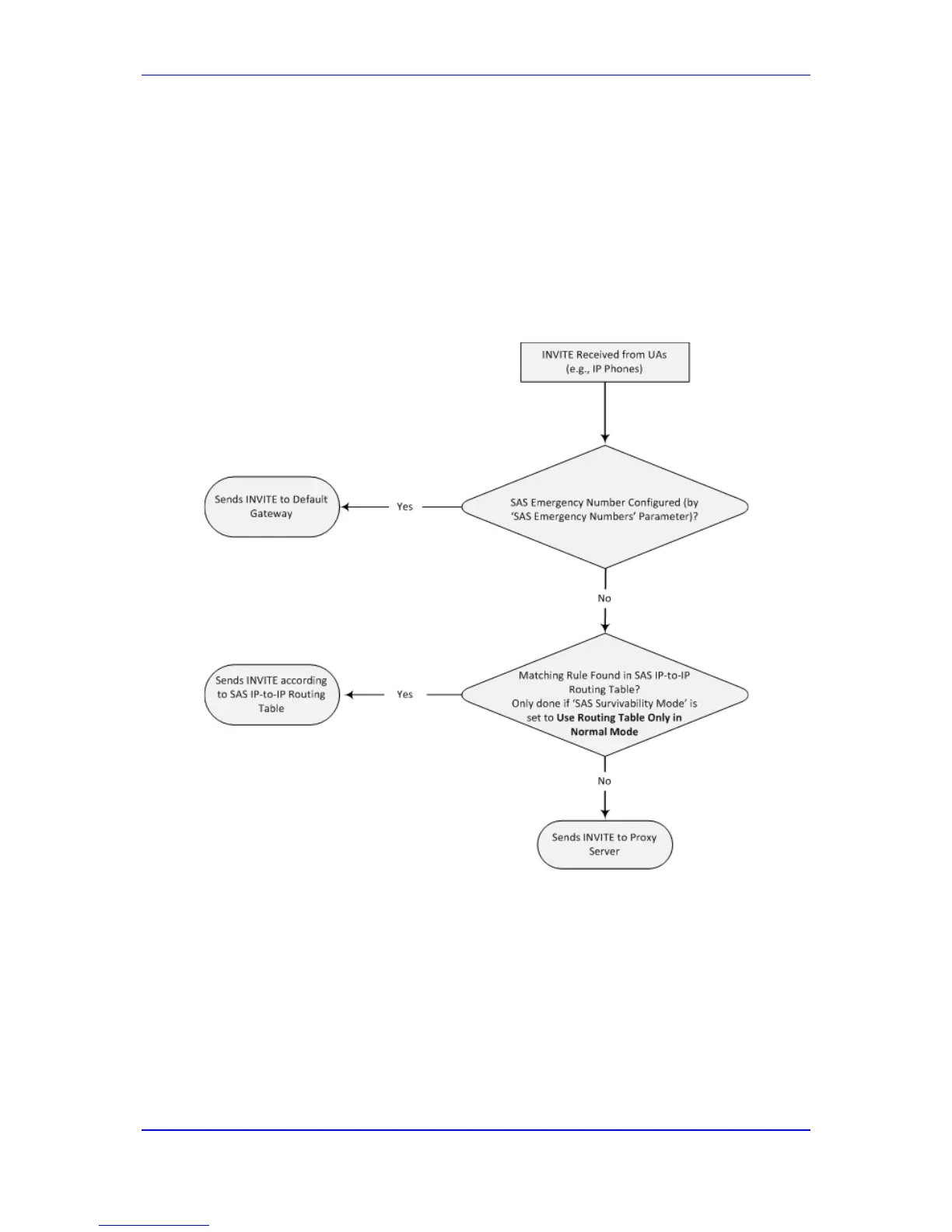

Figure 26-5: Flowchart of INVITE from UA's in SAS Normal State

AudioCodes MediaPack MP-118 Specifications

General

Category	Gateway
Analog Ports	8 FXS ports
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Protocols	SIP, MGCP, H.323
Model	AudioCodes MediaPack MP-118
Fax Support	T.38
Management	Web-based, SNMP, CLI
Security	SRTP, TLS, HTTPS
Power Supply	AC 100-240V, 50-60Hz
Humidity	10% to 90%, non-condensing
Network Interfaces	2 x 10/100Base-T Ethernet
