User's Manual 42 Document #: LTRT-65422
MP-11x & MP-124
(i.e., Configuration, Maintenance, and Status & Diagnostics) on the Navigation bar. The
advantage of the Basic view is that it prevents "cluttering" of the Navigation tree with
menus that may not be required.
 To toggle between Full and Basic view:

To display a reduced menu tree, select the Basic option (default).

To display all the menus and submenus in the Navigation tree, select the Full option.

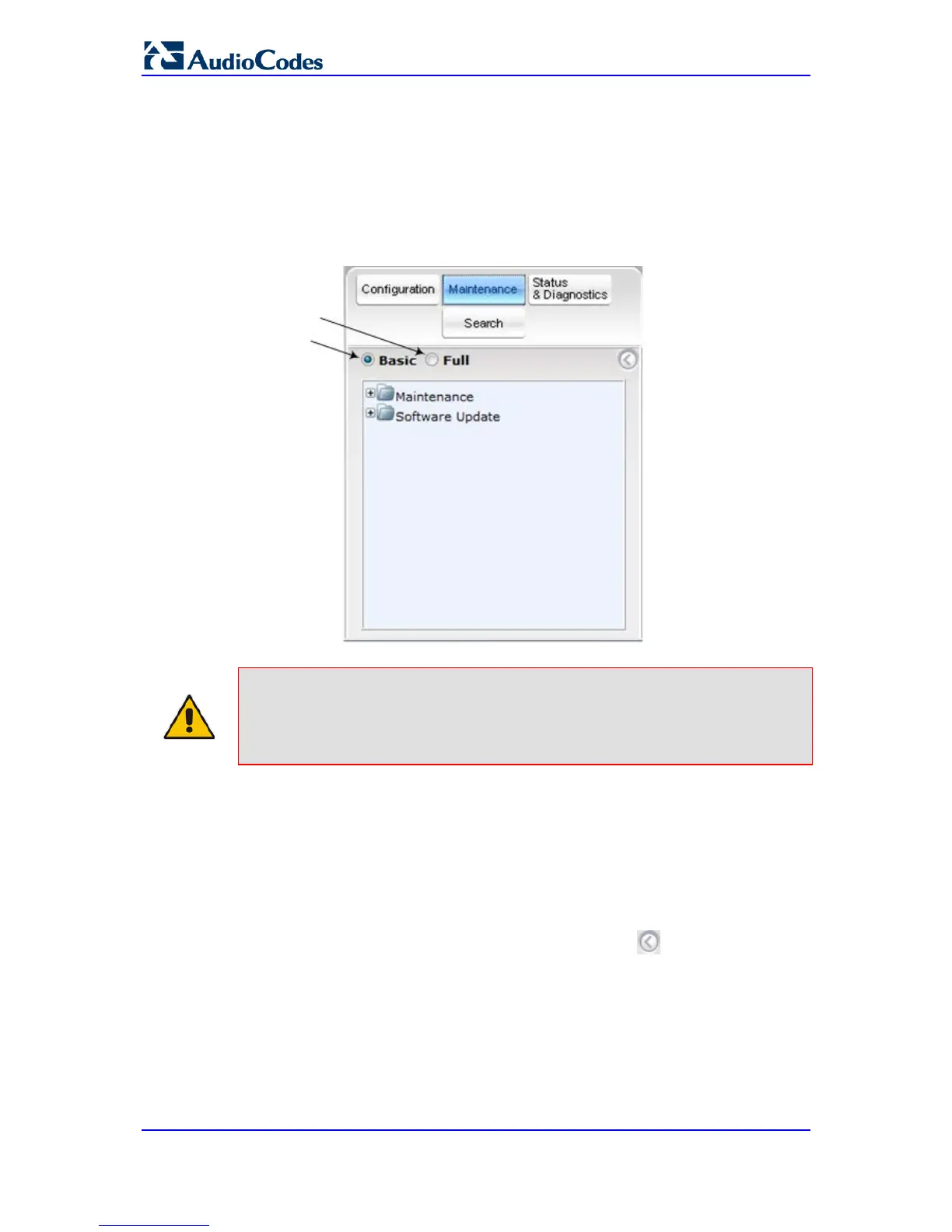

Figure 4-5: Basic and Full View Options
Notes:
• After you reset the device, the Web GUI is displayed in Basic view.
• When in Scenario mode (see Scenarios on page 50), the Navigation tree
is displayed in Full view.
4.1.5.2 Showing / Hiding the Navigation Pane
You can hide the Navigation pane to provide more space for elements displayed in the
Work pane. This is especially useful when the Work pane displays a wide table. The arrow
button located below the Navigation bar is used to hide and show the pane.
 To hide and show the Navigation pane:

To hide the Navigation pane: Click the left-pointing arrow ; the pane is hidden
and the button is replaced by the right-pointing arrow button.

AudioCodes MediaPack MP-118 Specifications

General

Category	Gateway
Analog Ports	8 FXS ports
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Protocols	SIP, MGCP, H.323
Model	AudioCodes MediaPack MP-118
Fax Support	T.38
Management	Web-based, SNMP, CLI
Security	SRTP, TLS, HTTPS
Power Supply	AC 100-240V, 50-60Hz
Humidity	10% to 90%, non-condensing
Network Interfaces	2 x 10/100Base-T Ethernet
