AudioCodes MediaPack MP-118 User Manual

User's Manual 278 Document #: LTRT-65422
MP-11x & MP-124

DID Wink can be used for connection to EIA/TIA-464B DID Loop Start lines

Both FXO (detection) and FXS (generation) are supported
25.14.2 FXO Operations for Tel-to-IP Calls
The FXO device provides the following FXO operating modes for Tel-to-IP calls:

Automatic Dialing (see 'Automatic Dialing' on page 278)

Collecting Digits Mode (see 'Collecting Digits Mode' on page 279)

FXO Supplementary Services (see 'FXO Supplementary Services' on page 279)
• Hold/Transfer Toward the Tel side
• Hold/Transfer Toward the IP side
• Blind Transfer to the Tel side
25.14.2.1 Automatic Dialing
Automatic dialing is defined using the Web interface's Automatic Dialing (TargetOfChannel
ini file parameter) page, described in see 'Configuring Automatic Dialing' on page 266.

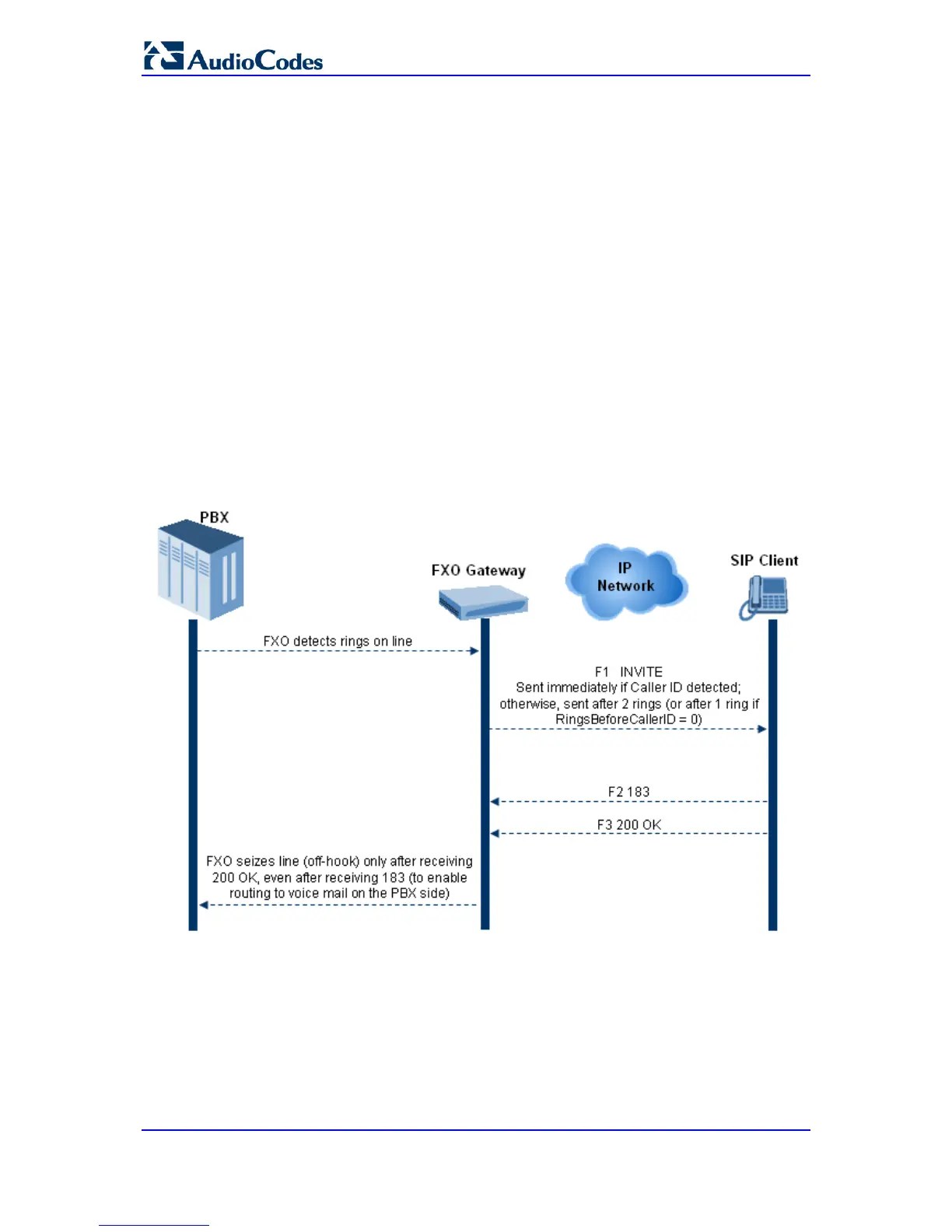

The SIP call flow diagram below illustrates Automatic Dialing.
Figure 25-13: Call Flow for Automatic Dialing

AudioCodes MediaPack MP-118 Specifications

General

Category	Gateway
Analog Ports	8 FXS ports
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Protocols	SIP, MGCP, H.323
Model	AudioCodes MediaPack MP-118
Fax Support	T.38
Management	Web-based, SNMP, CLI
Security	SRTP, TLS, HTTPS
Power Supply	AC 100-240V, 50-60Hz
Humidity	10% to 90%, non-condensing
Network Interfaces	2 x 10/100Base-T Ethernet
