Austro Engine AE330

To Next Page

To Previous Page

Maintenance Manual

E4.08.04

Issue date: 14-Dec-2015

Page: 24-13

Revision no: 26

Assure the correct fitment of the cover (direction) as shown in the picture below.

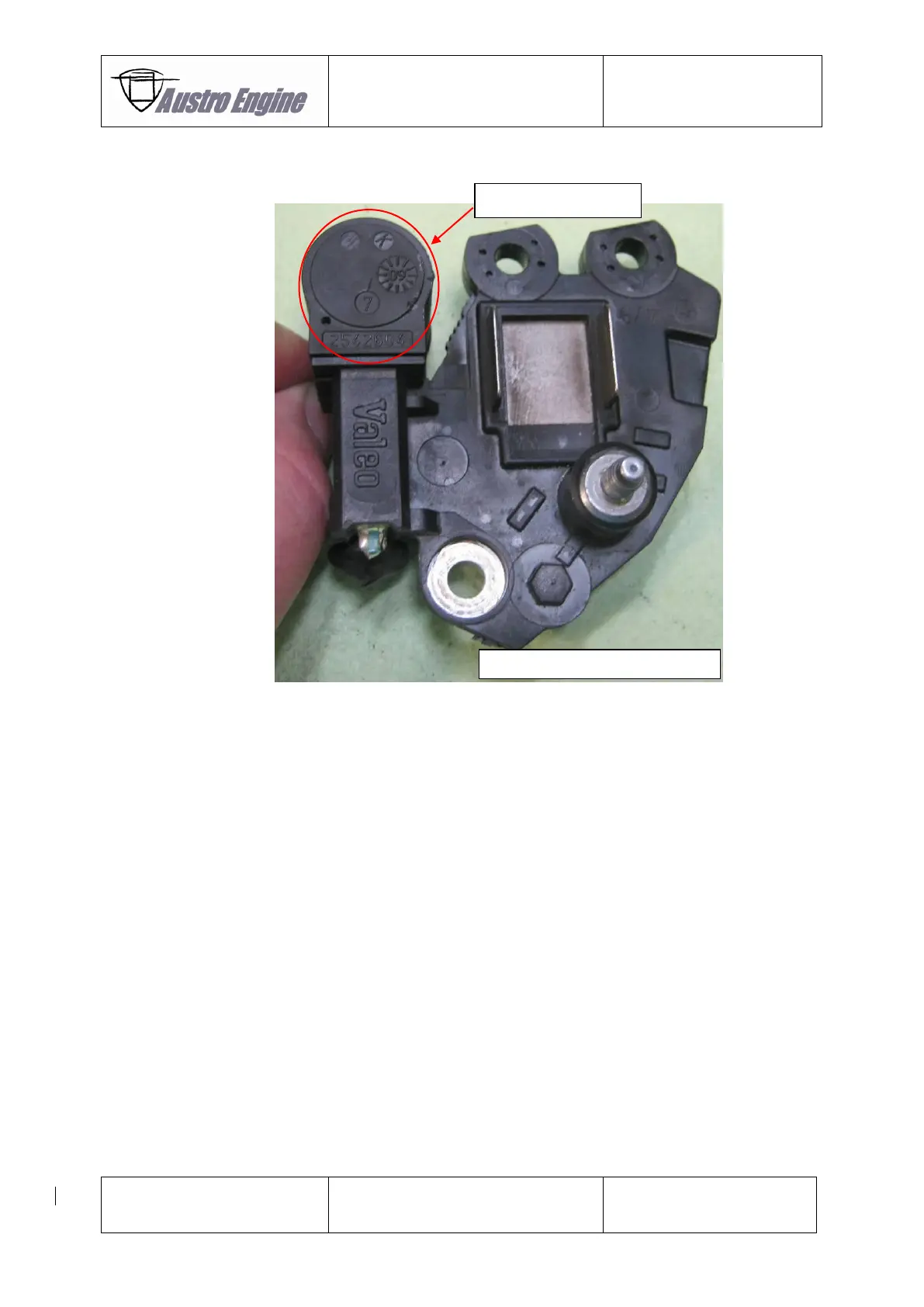

Fig. 24 - 16 Brush holder and hover

Backside of ASSY Brush Holder

Backside of Cover
