Maintenance Manual
E4.08.04
Issue date: 14-Dec-2015
Page: 85-54
Revision no: 26
85-30-52 Removal of the cylinder head sub-assembly from the crank case

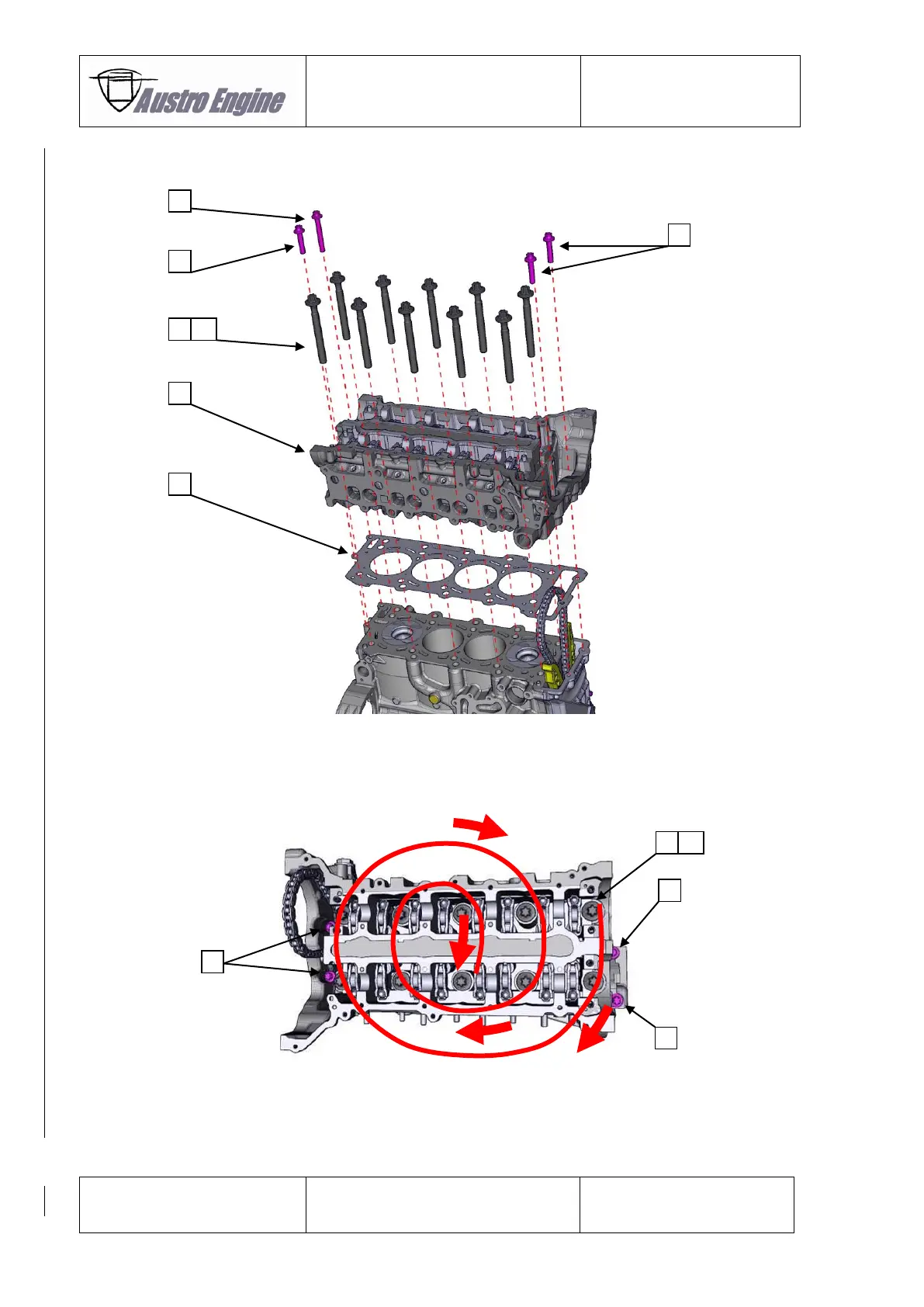

Fig. 85 - 73
1. Remove the screws [03] and [04].
2. Remove the cylinder head screws [02] in the sketched order from the outside to the inside of the
cylinder head.
Fig. 85 - 74
3. Remove the cylinder head [01] and the cylinder head gasket [05] from the crankcase. Discrad
the cylinder head gasket.
02
01
05
10x
03
04
03
02
10x
03
04
03
