24-30-50 Marking of maintained Alternator E4A-91-000-000
For each time when ASSY brush holder E4A-91-300-000 is checked an X (cross) has to be engraved
on the bottom of the alternator. The dimension of the marking is described in Fig. 24.-31.

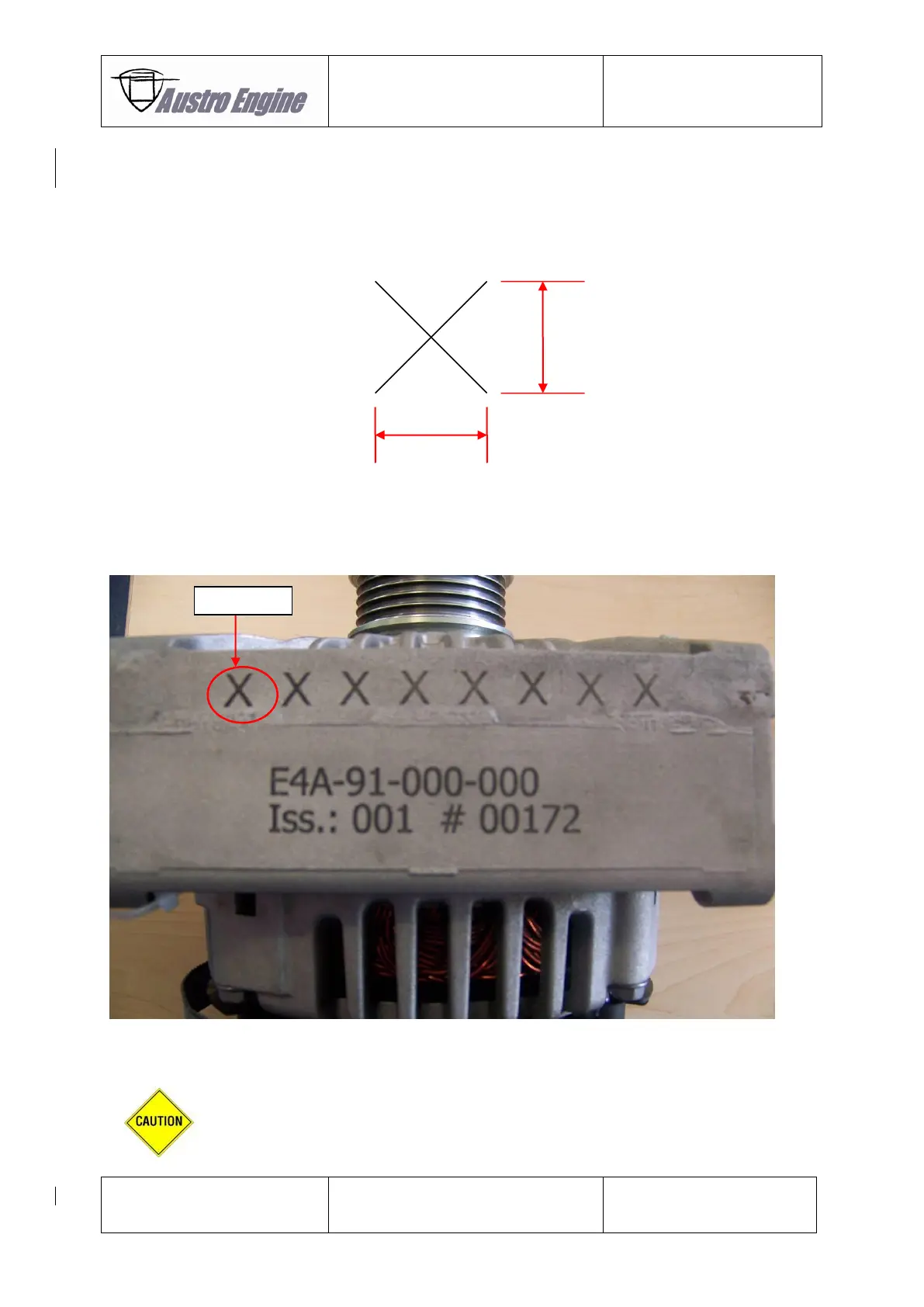

Fig. 24 - 22 Dimension of marking
Fig. 24 - 29 shows the positioning where the marking has to be engraved on the alternator.
Fig. 24 - 23 Alternator bottom side with marking
To increase the visibility of the cross, it can be additionally marked with a permanent marker.
It is not allowed to use stickers for marking!
