79-00-100 Lubricant Line
79-00-101 Removal of the Lubricant Line
1. Remove the safety wire [1].
2. Remove the banjo bolt [2].
3. Remove the screw [3] with the clip [4].
4. Remove the screw [5].
5. Dismount the oil lubricant line [6].
79-00-102 Installation of the Lubricant Line
1. Use new sealing rings – refer to Chapter 79-00-104.
2. Fit on the new pipe [6].
3. Screw down the screw [5] and torque it with 12 Nm.
4. Screw down the banjo bolt [2] and torque it with 35 Nm.
5. Screw down the screw [3] with the clip [4] with 12 Nm.
6. Clean the working area.
7. Perform an engine ground run according to Chapter 71-00-03.
8. After the ground run inspect oil system for leakage.
9. The lubricant line banjo bolt has to be torqued again with 35 Nm after cooling down
the engine.
10. Secure the banjo bolt with safety wire.

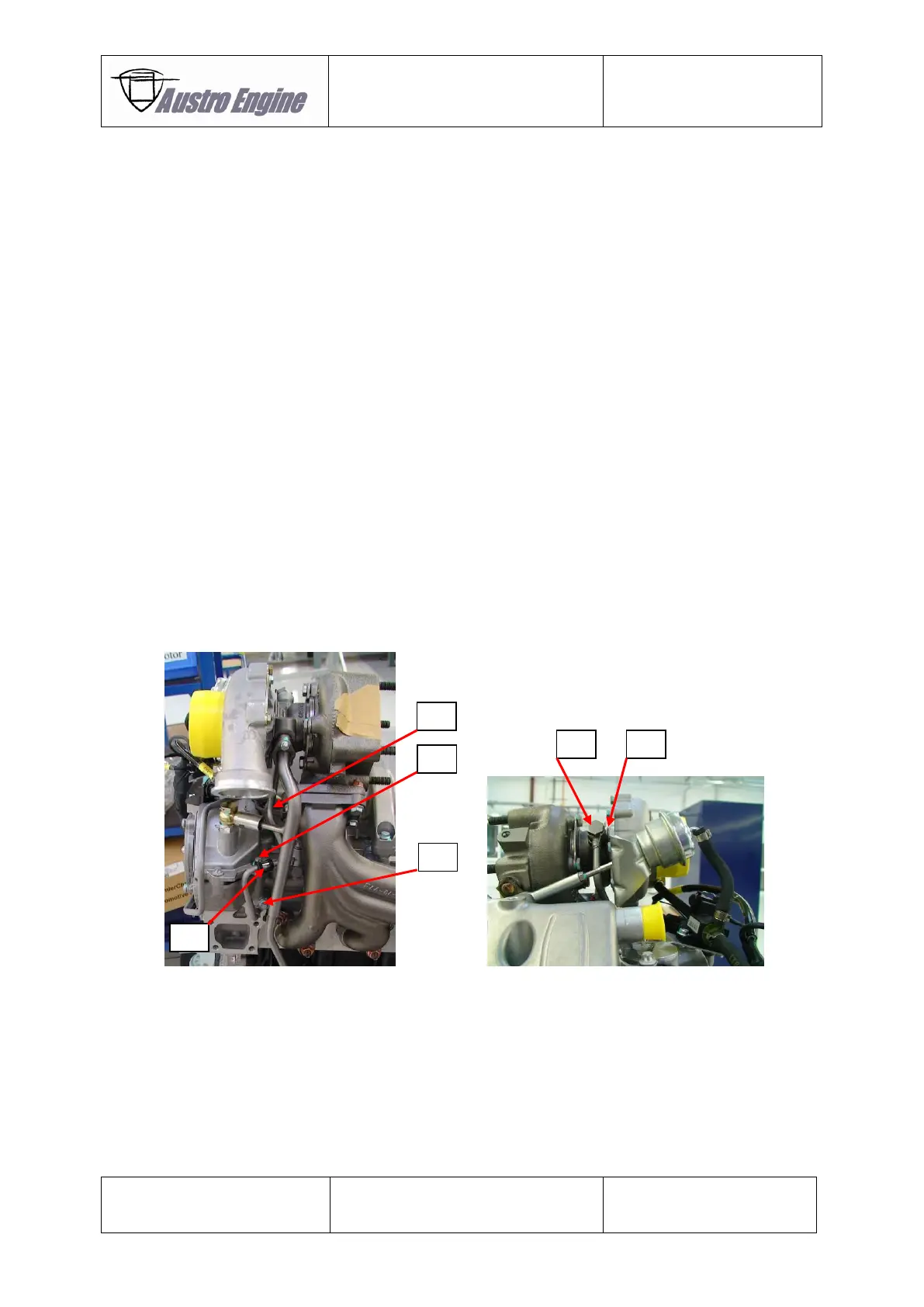

Fig. 79 - 13 Fig. 79 - 14
