85-10-40 Gearbox Temperature Sensor
85-10-41 Removal of the Gearbox Temperature Sensor
1. Disconnect the electrical connector [1] (GBTS).
2. Remove the temperature sensor [2].
85-10-42 Installation of the Gearbox Temperature Sensor
1. Use new sealing ring [3].
2. Install the gearbox temperature sensor using Loctite 2701.
When using Loctite, make sure, that the thread is free of grease and apply only a thin
film of Loctite.
3. Torque the gearbox temperature sensor with 15 Nm.
4. Connect the electrical connector (GBTS).
Refer to Chapter 71-50-901 in case the wiring is damaged or too short.
5. Perform an engine ground run according to Chapter 71-00-03.
6. After the ground run inspect gearbox oil system for leakage.

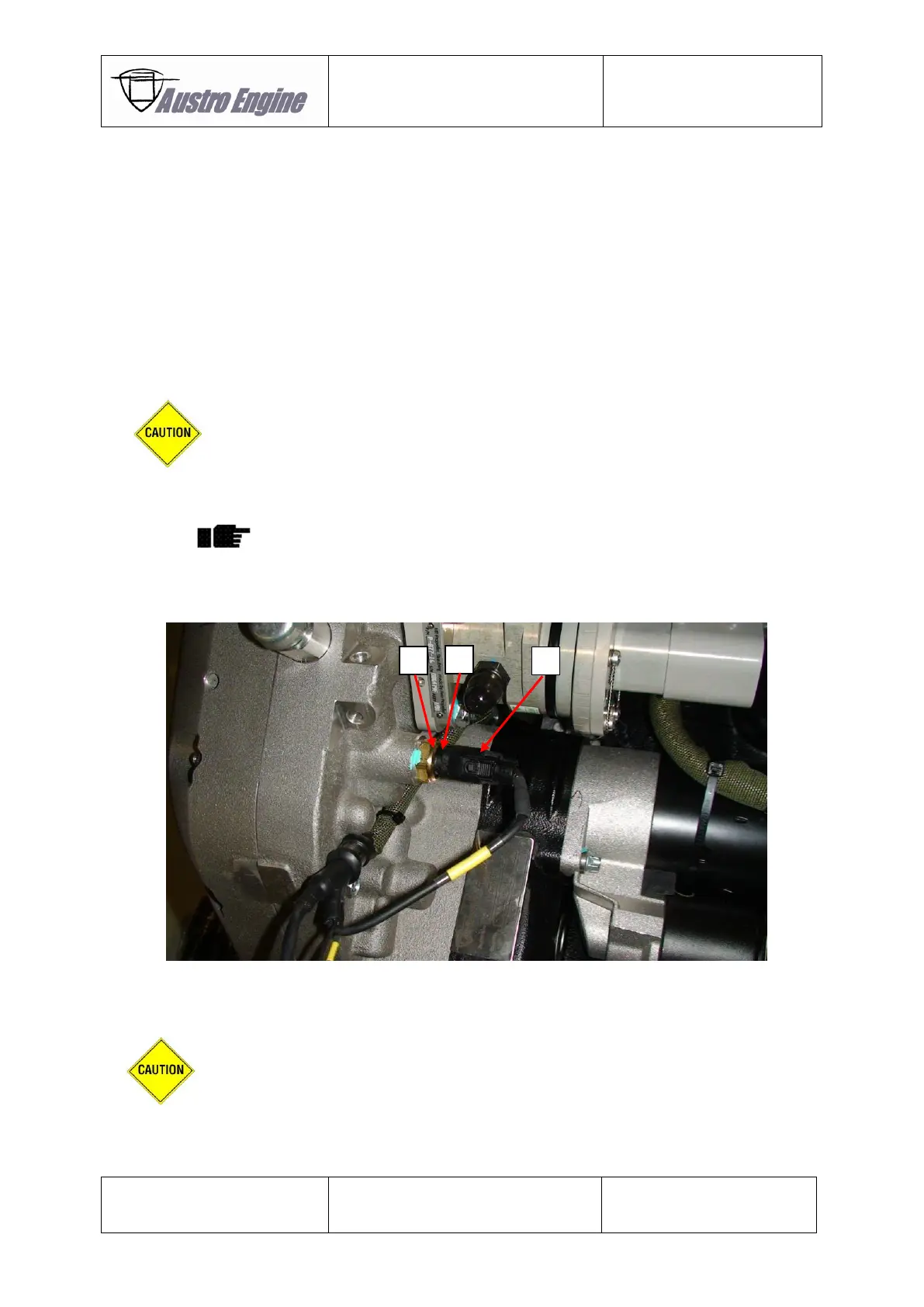

Fig. 85 - 28 (Installation of GBTS on gearbox Rev. 65 or lower or Rev. 100 and
higher)
If gearbox Rev. 70 to Rev. 90 is installed on an E4-B or E4-C engine, the GBTS has to
be installed above the gearbox oil filter. For all other configurations the installation is
similar to Fig. 85 - 28
Note that a gearbox Rev. 80 to Rev. 90 cannot be mounted on an E4-A engine.
