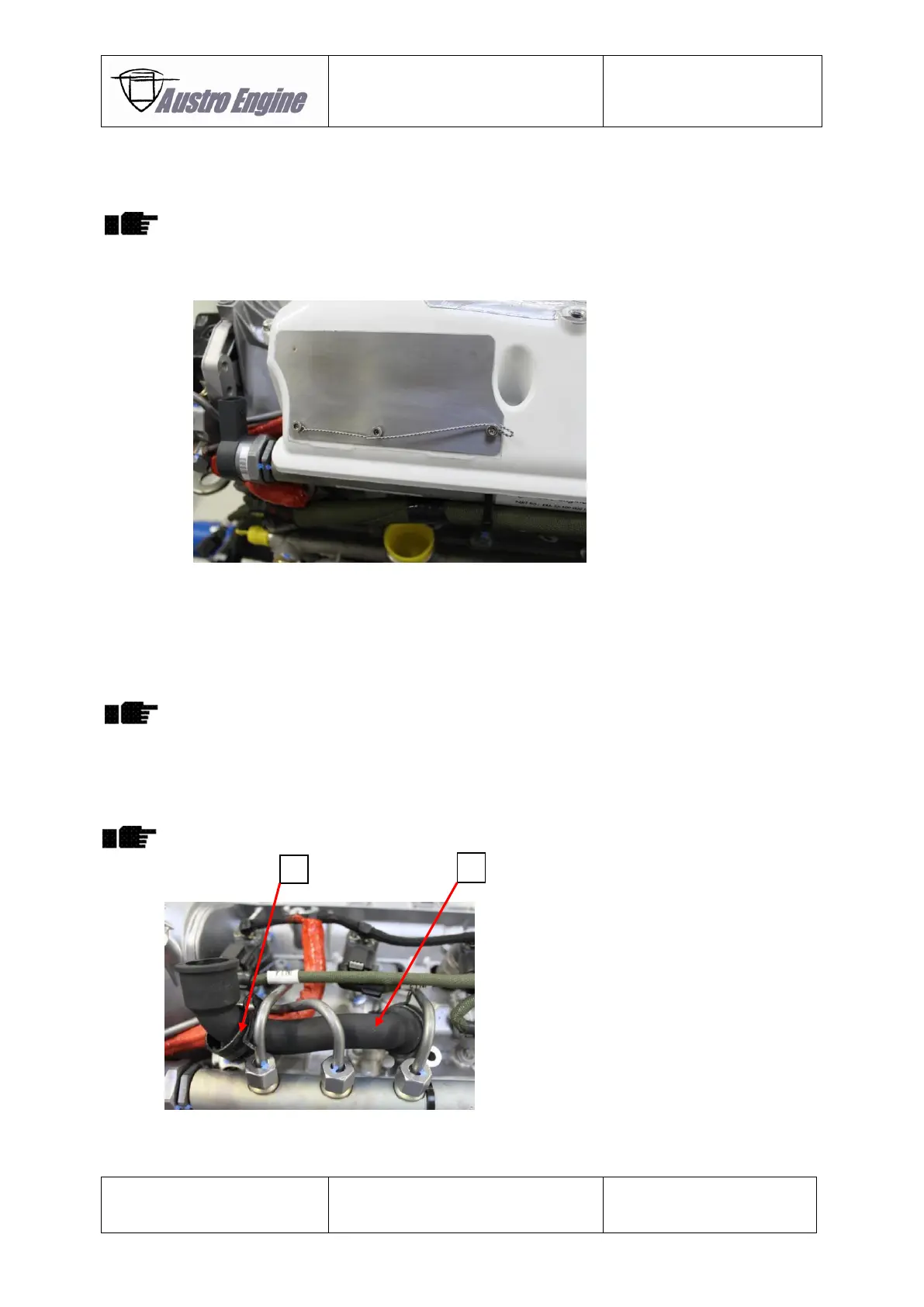

85-00-13 Removal of the Maintenance Lid
Only applicable to injector covers with maintenance lid installed.
1. Remove safety wire and the 3 screws.
2. Remove the maintenance lid by pushing it towards the direction of the screw holes.
Fig. 85 - 4
85-00-14 Installation of the Injector Cover with maintenance lid
1. Route the oil separator hose [3] below the high pressure lines – refer to Fig. 85 - 5.
2. Push the oil separator hose on the socket and fix it with the hose clamp [2].
Make sure that the hose is installed and routed without tension. If necessary push the hose
below the high pressure lines in direction connector socket to assure the stress less routing.
Before installation put both hose clamps over the tube.
3. Put the injector cover [4] in position above the cylinder head.
4. Connect the tube to the oil separator – refer to Fig. 85 – 7.
Install the oil separator hose stress less.
Fig. 85 - 5
