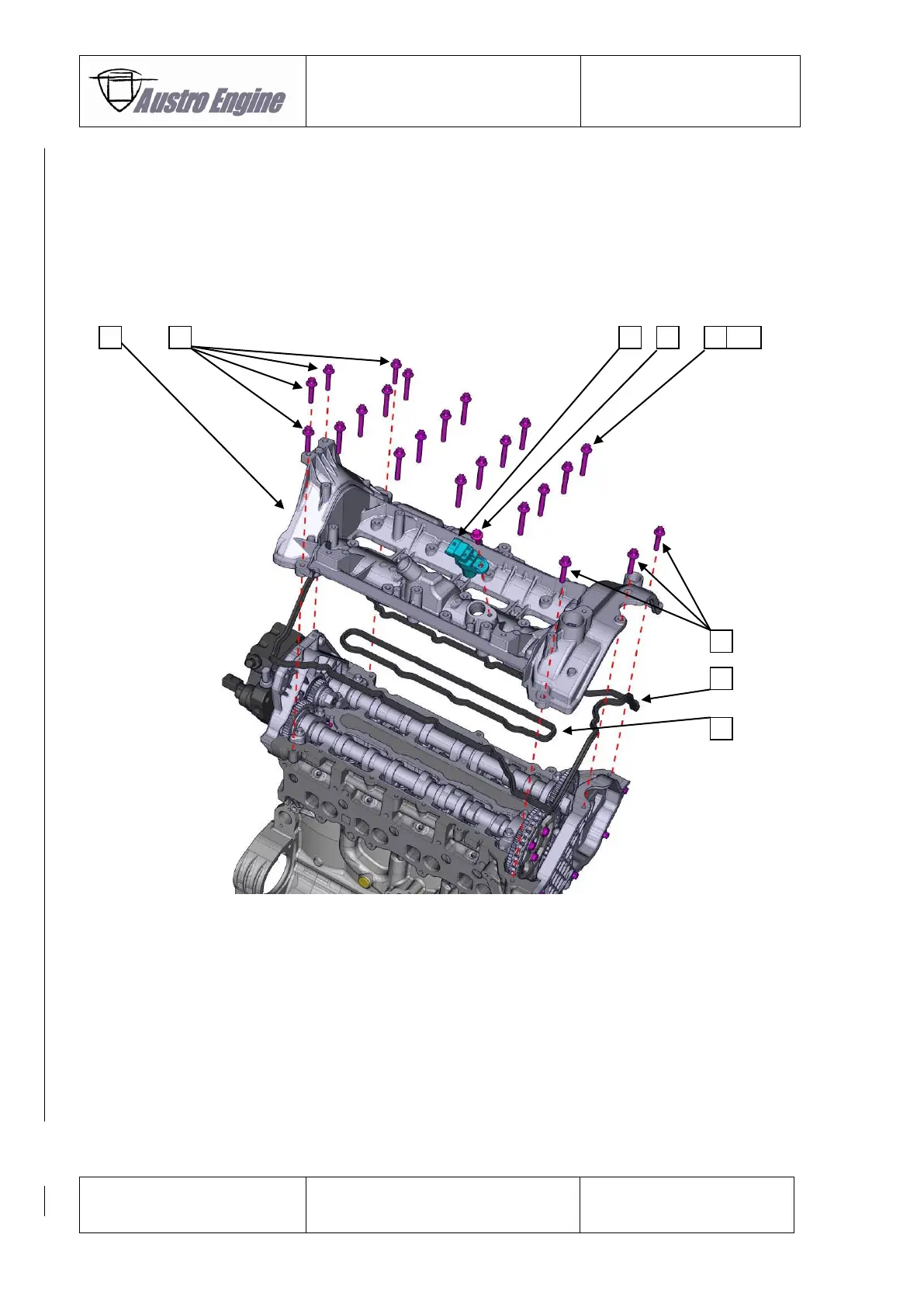

85-30-43 Removal of the cylinder head cover
1. Remove the screw [07].
2. Remove the camshaft position sensor (CAS 1) [06] according to Chapter 76-00-41.
3. Remove the screws [02] and [03].
4. Remove the cylinder head cover [01] and the inside sealing [04] and the outside sealing [05]
from the engine.
Fig. 85 - 64
85-30-44 Removal of the Camshaft Sensor Housing for CAS 2
1. Remove the camshaft position sensor CAS 2 [11] according to Chapter 76-00-51.
2. Remove the three screws [09].
3. Remove sensor housing cover [02].
4. Pull out shaft coupling assembly ([04],[05],[10]).
5. Remove the two screws [12].
6. Remove sensor housing [01].
7. Remove gasket and O-ring [06], [07]. Discard the gasket and the O-ring.
