79-00-90 Oil Separator Return Line
79-00-91 Removal of the Oil Separator Return Line
1. Remove the safety wire [2].
2. Remove the banjo bolt [1] at the camshaft sensor housing.
3. Remove the screw from the injector cover.
4. Remove the oil line [4].
79-00-92 Installation of the Oil Separator Return Line
1. Use new O-ring [5] and lubricate it with acid free lubrication.
2. Push the oil-line in the injector cover and fixed it with the screw.
3. Install the banjo bolt in the camshaft sensor housing with new sealing rings and
torque it with 15 Nm.
4. Secure the banjo bolt with a safety wire.
5. Clean the working area.
6. Perform an engine ground run according to Chapter 71-00-03.
7. After the ground run inspect oil system for leakage.

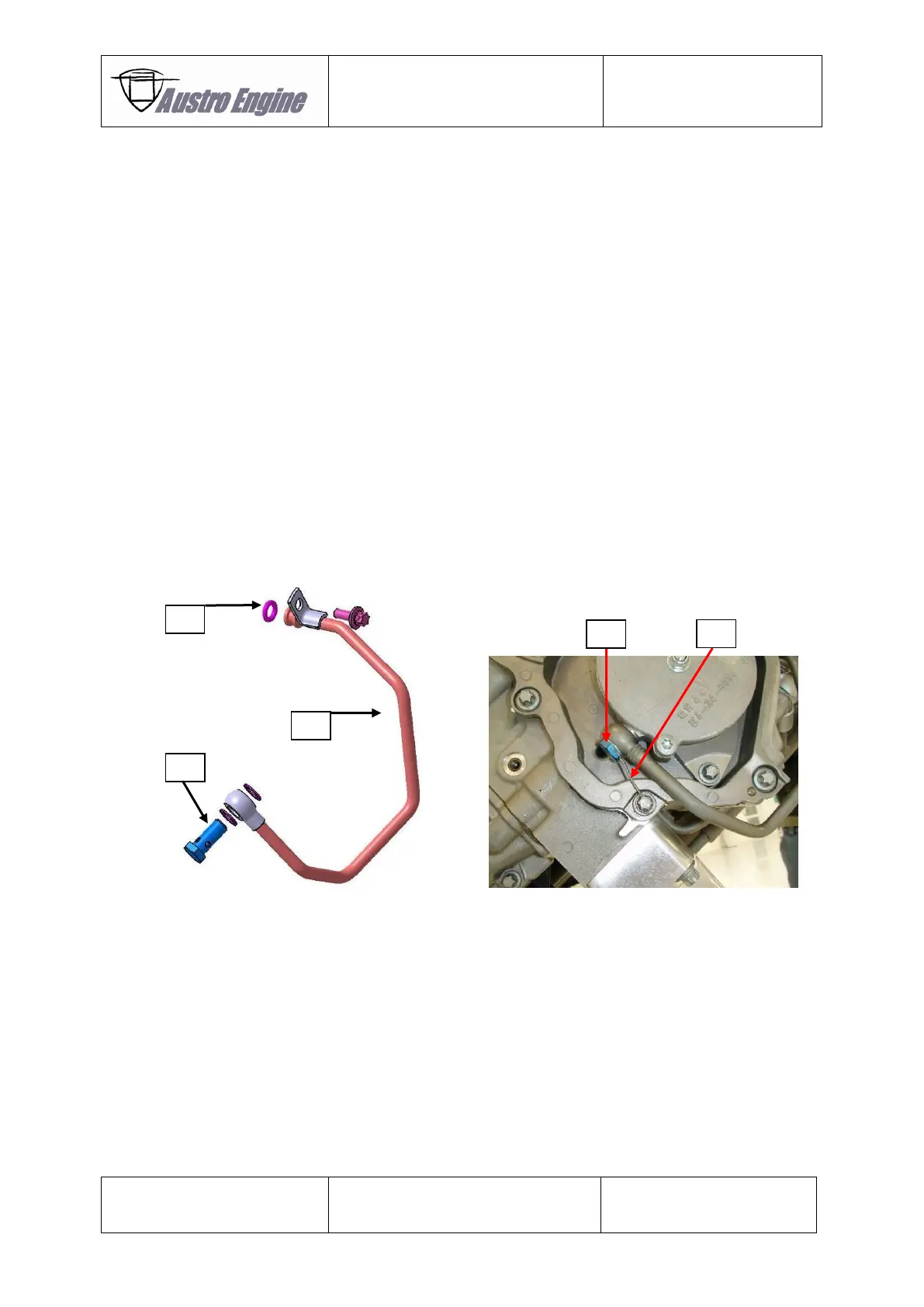

Fig. 79 - 11 Fig. 79 - 12
