85-30-48 Removal of the chain gear
1. Remove the fastening bolt by using hammering tool AE300T-010.
2. Remove the screws [02].
3. Remove the chain gear [01] together with the timing chain from the intake camshaft.

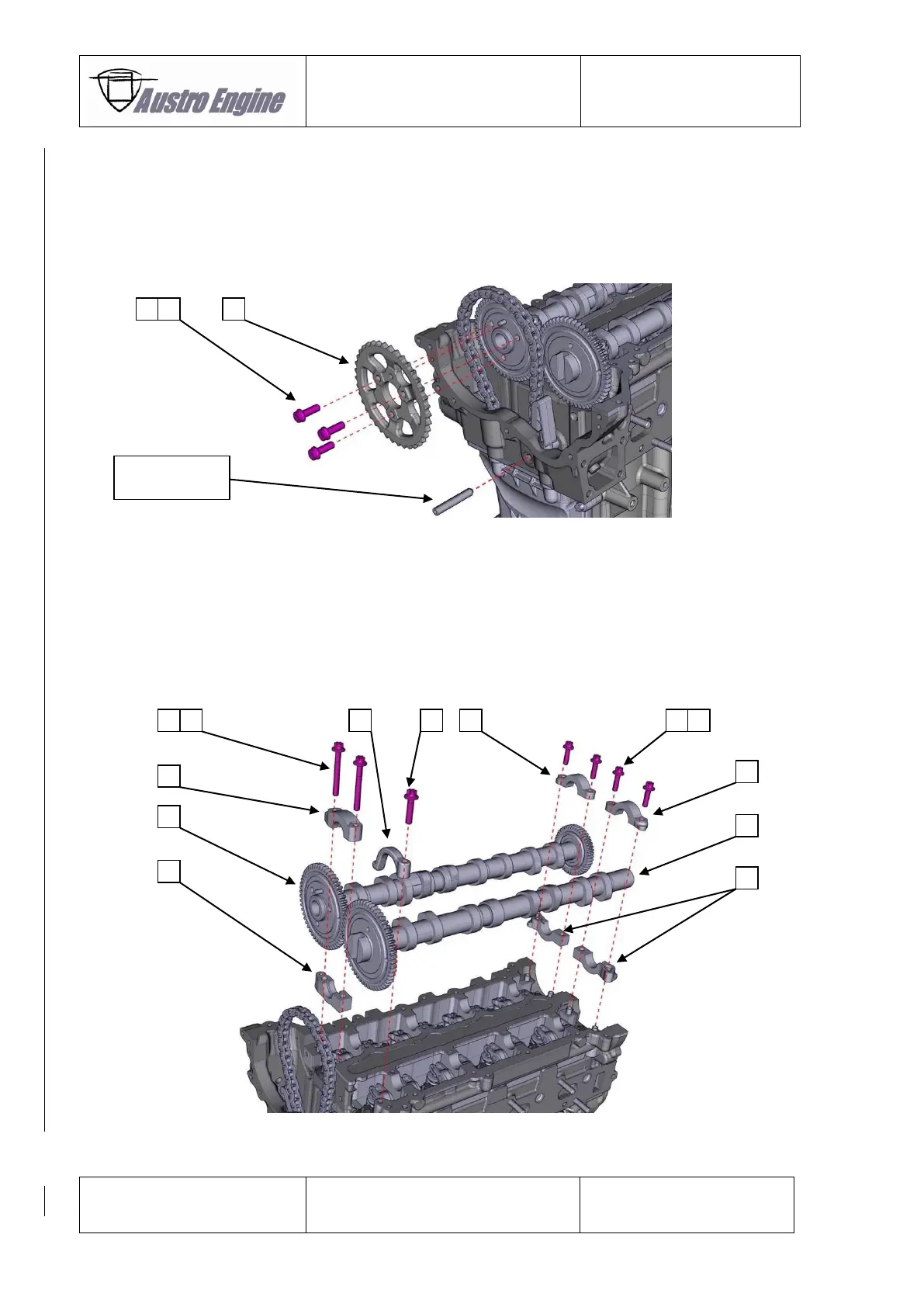

Fig. 85 - 69
85-30-49 Removal of the camshafts
1. Remove the screws of the camshaft bearings [06], [07] and [08].
2. Remove the camshaft bearing covers [02], [04] and the bracket [03].
3. Carefully remove the camshafts [09] and [10].
4. Remove the bearing bracket assemblies [01] and [05].
Fig. 85 - 70
