Austro Engine AE330 - Exchange of Connector for Alternator E4 A-91-400-000

Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 71-66
Revision no: 25

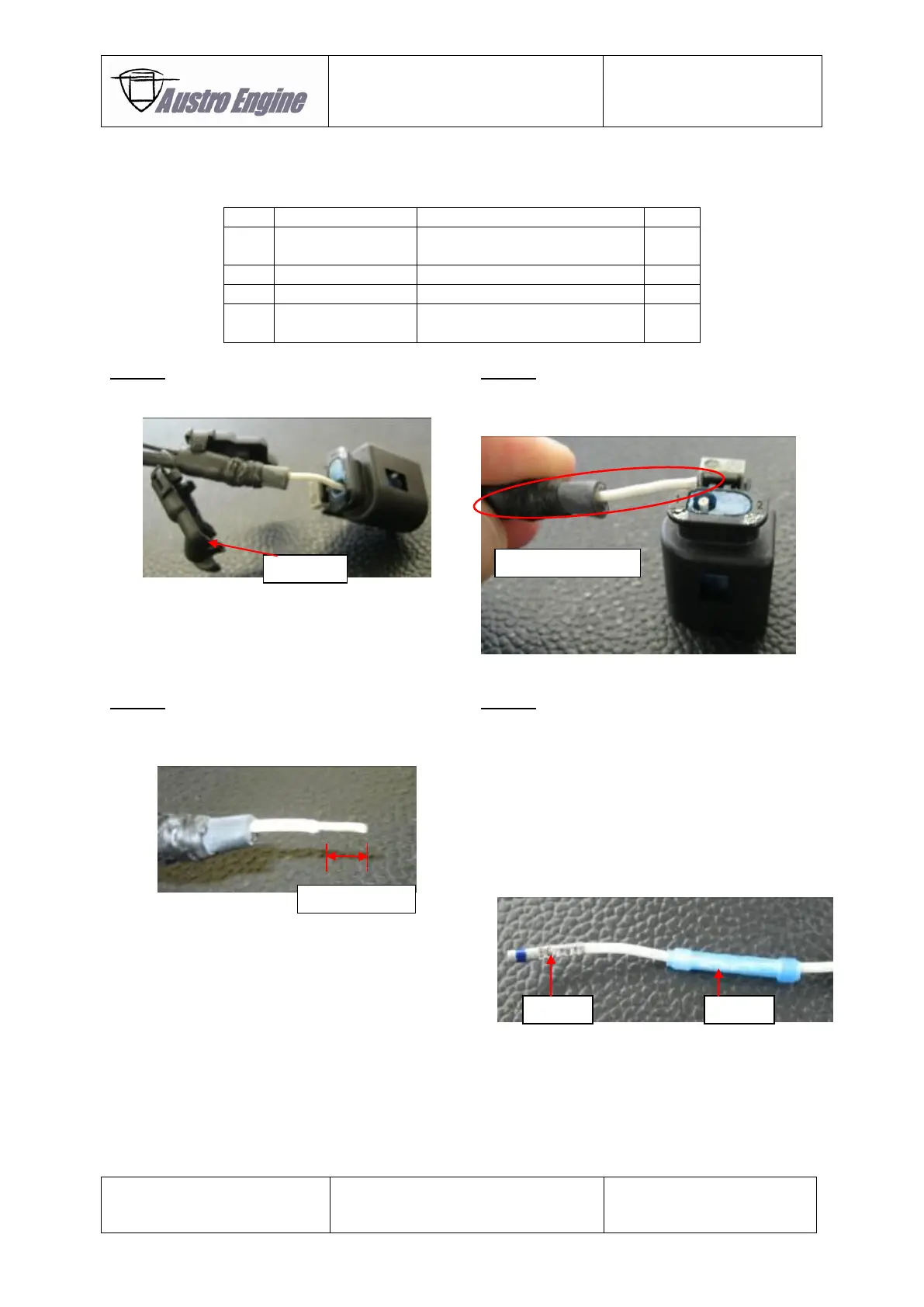

71-50-902 Exchange of Connector for Alternator E4A-91-400-000
Pos.
Partnumber
Description
Qty.
1
E4A-95-R11-000-
000
Assy Repair Kit Cable
1
2
-
Cutter
1
3
-
Hot Air Gun
1
4
-
Crimp Tool for
TE (Tyco)D-436-37 crimp
1
Step 1:
The black backsheel needs to be removed.
Step 2:
Cut off the connector G2/Gen as close as possible at
the connector housing.
The old connector will not be needed any more.
Step 3:
Remove the insulation of the remaining harness
and the repair kit cable.
Step 4:
The part number of the inline crimp is D-436-37. This
number includes the splice crimp and the (blue)
isolation sleeve.
Put the blue isolation sleeve of the inline crimp D-
436-37 over the single wire of the repair kit cable.
Place the splice crimp at the end of the single wire of
the repair kit cable. Connect the crimp with the
repair kit cable by usage of the crimp tool Mil
Standard Part Number: M22520/37-01
Backshell
5mm (+/-2)
Reamining Harness
Gasket
Crimp
