76-00-40 Camshaft Sensor CAS 1
76-00-41 Removal of the Camshaft Sensor CAS 1
1. Remove the injector cover - refer to Chapter 85-00-11.
2. Pull down the electrical connector CAS 1.

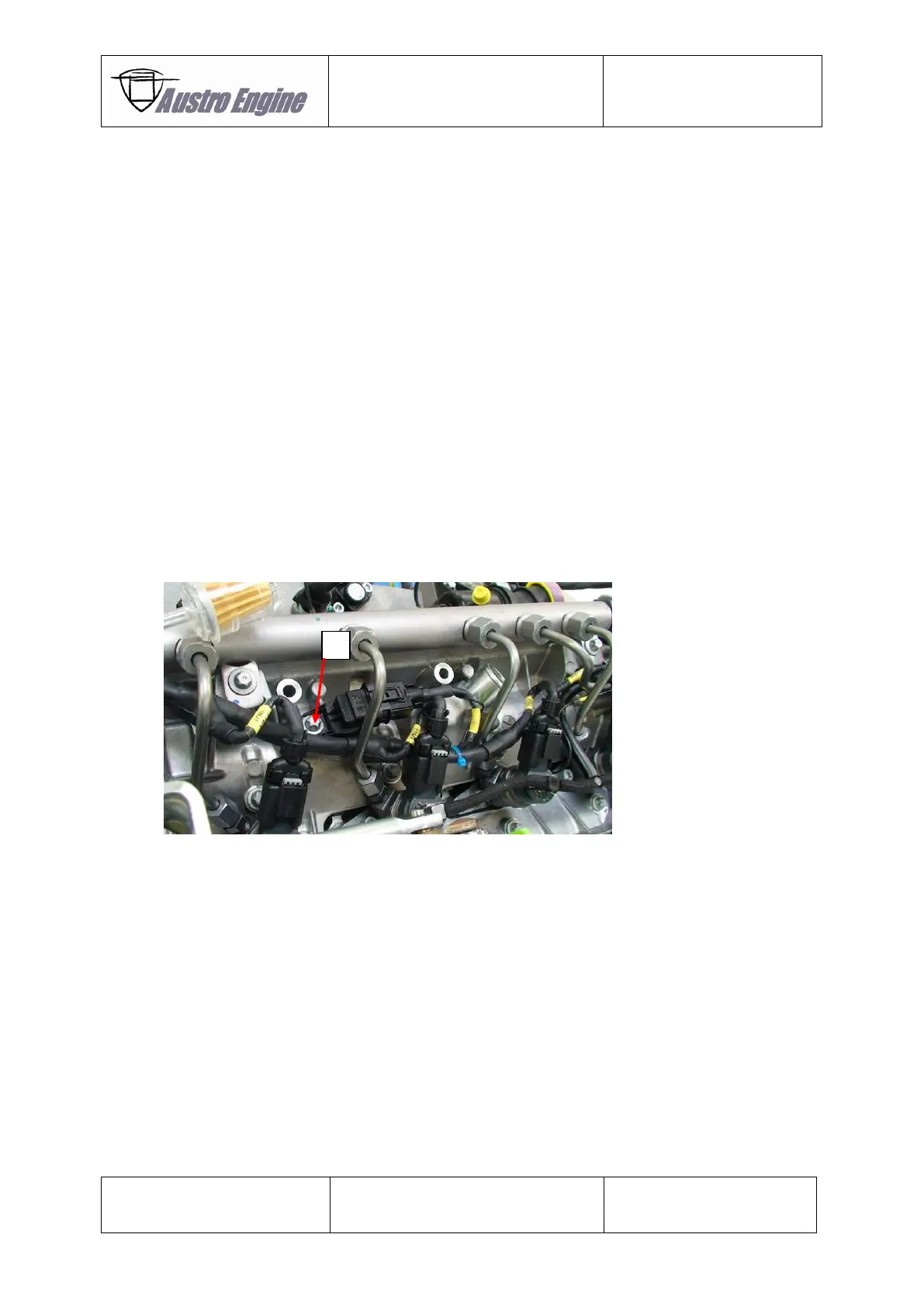

3. Remove the locking screw from the sensor [1].
4. Pull the camshaft sensor out.
76-00-42 Installation of the Camshaft Sensor CAS 1
1. Lubricate the new O-ring with acid free lubrication.
2. Push the sensor into the cylinder head cover and inspect the correctly seat of the
O-ring.
3. Tighten up the camshaft sensor screw with 14 Nm.
4. Inspect the correctly seat of the sensor.
5. Attach the electrical connector CAS 1.
6. Install the injector cover - refer to Chapter 85-00-12.
7. Perform an engine ground run according to Chapter 71-00-03.
