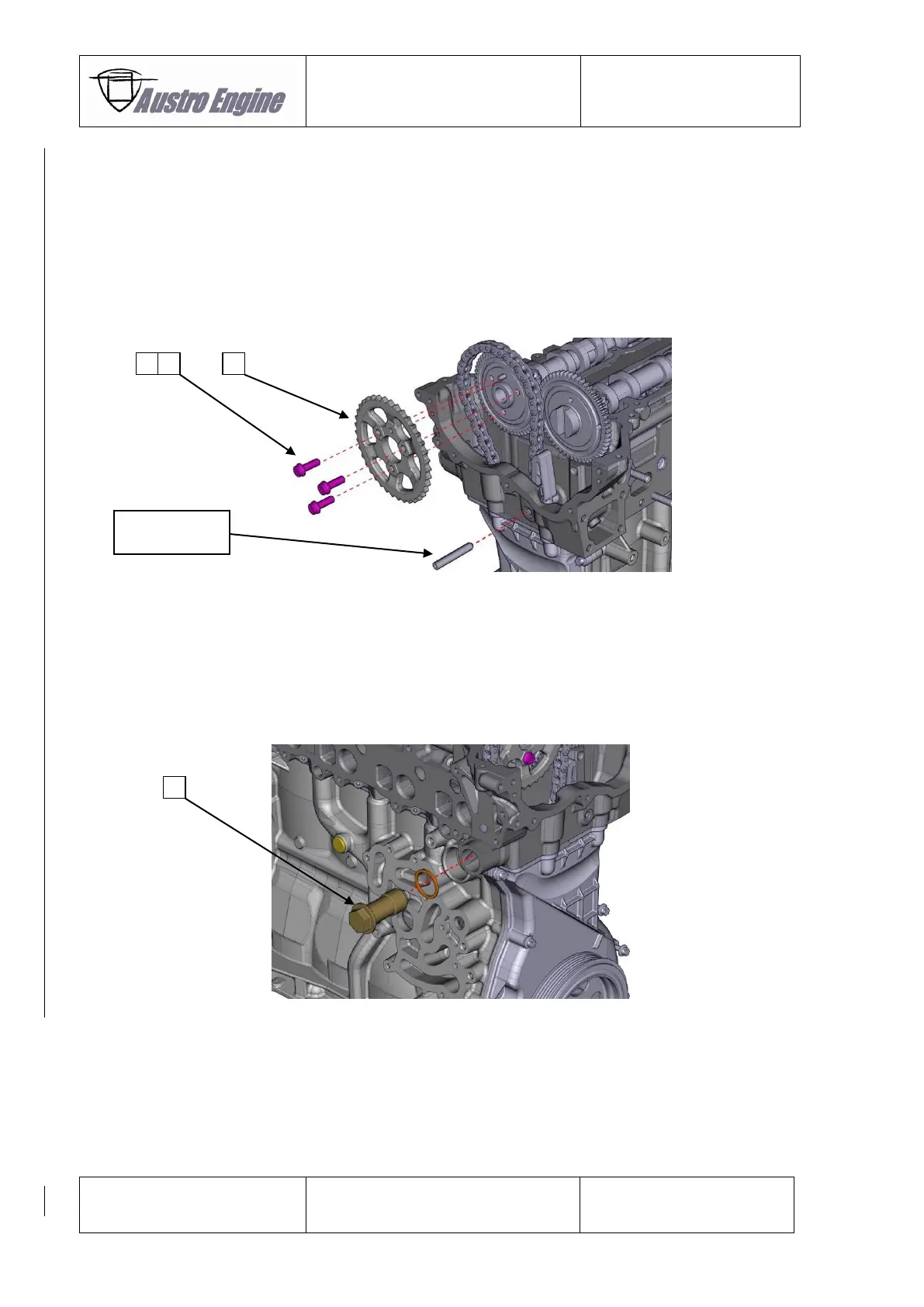

85-30-58 Installation of the chain gear
1. Put the timing chain on the chain gear [01]. Align the timing chain until the chain gear fits on the
fitted bolt on the camshaft.
2. Torque the screws [02] with 18 Nm.
3. Remove the camshaft locking tool (AE300T-009).
4. Move the chain guide until the fastening bolt can be hit into the cylinder head. Hit the bolt in until
a full metal sound can be heard. Use the hammering tool (AE300T-010).
Fig. 85 - 84
85-30-59 Installation of the chain tensioner
1. Screw the chain tensioner assembly [01] including the sealing ring into the cylinder head.
2. Torque the chain tensioner with 80 Nm.
3. Turn the engine and check all movable parts for ease of movement.
Fig. 85 - 85
Chain guide
fastening bolt
