Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 71-47
Revision no: 25
71-50-190 Remove the Wiring Harness
DISCONNECT the power source prior to the remove of the wiring harness.
 Remove the Injector Cover – refer to Chapter 85-00-11 Removal of the Injector Cover
 Remove all clamps. (Pos. 03, 04, 05, 09, 11, 12).
 Remove the cable strap from the Edge Clip (Pos.10) and the starter motor.
 Disconnect the shielding cable.
 Disconnect the wiring harness from all electrical equipment which is connected to the harness.
Start on the right gearbox side.
 The harness can be removed.

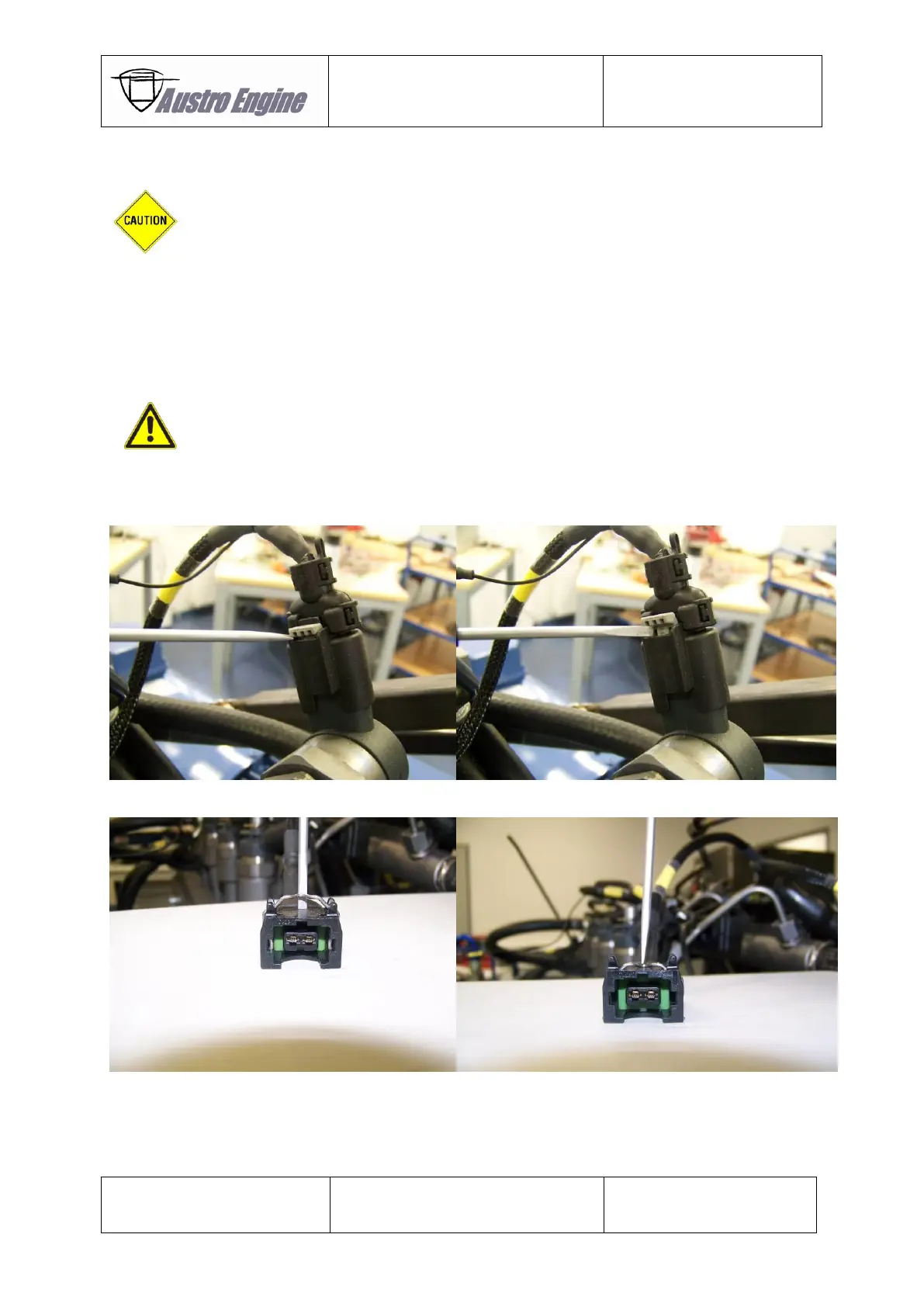

Each connector is locked. Release the lock before disconnect the plugs.
For example some locking-systems are shown.
Connectors locked Connectors unlocked
Fig. 71 - 67
Fig. 71 - 68
