Chapter 81-00-00 Turbocharging
81-00-01 General
For description refer to Chapter 01-10-10 Intake/Exhaust System Description.
81-00-10 Turbo Charger Complete
81-00-11 Removal of the Turbo Charger
1. Remove the exhaust manifold including turbo charger – refer to Chapter 78-00-11.
2. Remove turbo charger from exhaust manifold – refer to Chapter 78-00-11.
81-00-12 Installation of the Turbo Charger
1. Install turbo charger on exhaust manifold – refer to Chapter 78-00-12
2. Install exhaust manifold including turbo charger – refer to Chapter 78-00-12
For explosion picture see also Chapter 78-00-12.
81-00-13 Removal of the Waste Gate Controller
1. Disconnect hose at the top of the waste gate controller.
2. Remove three M6 bolts [2].
3. Remove circlip [1].
4. Disconnect rod from waste gate lever and remove waste gate controller [3].
81-00-14 Install new Waste Gate Controller

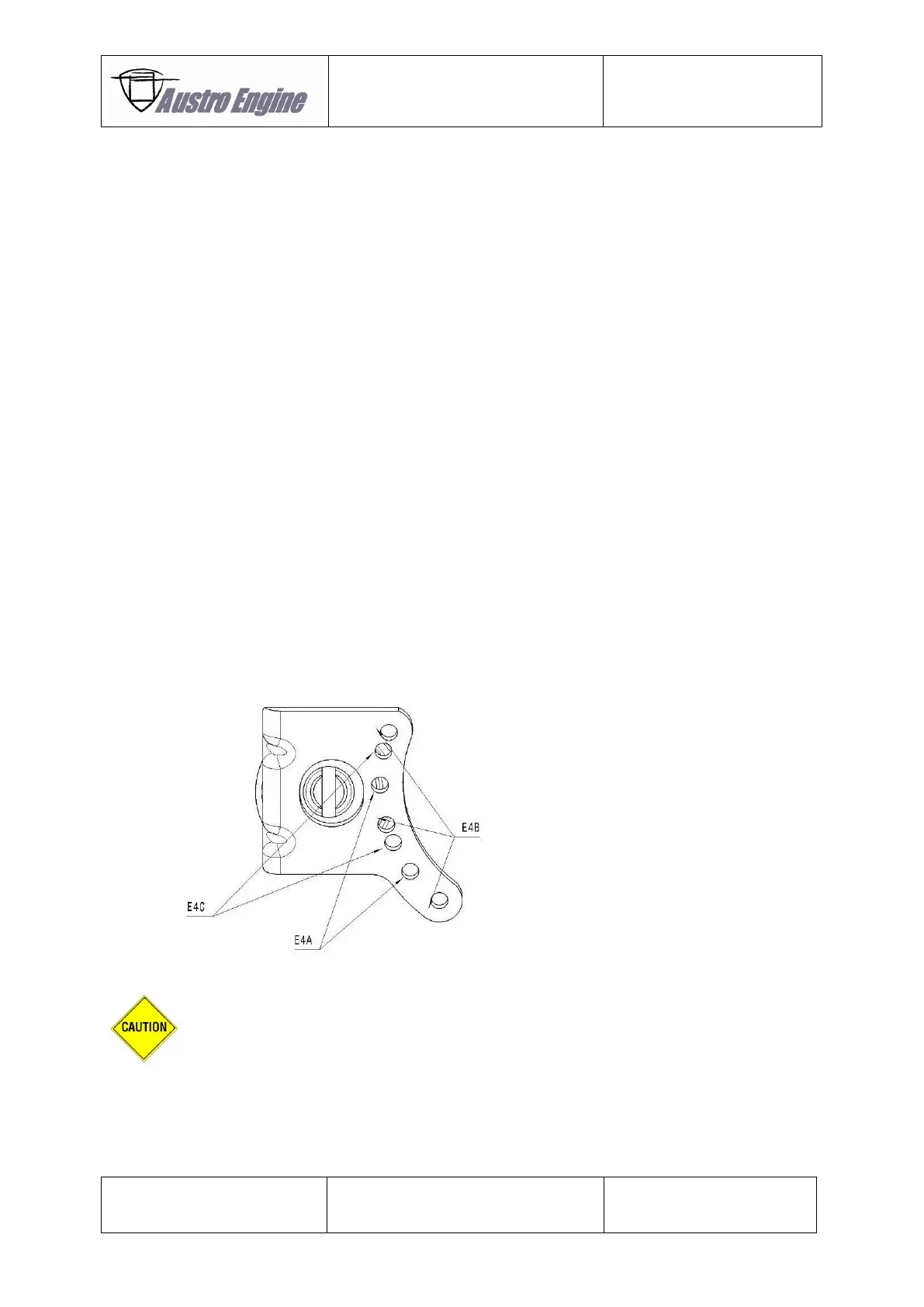

The following figure defines the Installation versions of the waste gate controller bracket.
Fig. 81 - 1 Waste Gate Controller – Installation Versions
Take care to install the waste gate controller according to your engine configuration
(E4A, E4B or E4C).
