All three points must be obeyed at the same time.
• If the timing setup is ok, remove tool AE-300-T009 from the timing wheels.
• Turn the engine two turns in clockwise direction
Turn the engine very carefully. If there is a stop or resistance TURN BACK and check the
timing setup once again!
Remove the materials, which were used to cover the chain slot before you turn the
engine!
• Turn the engine to TDC and check the timing setup again.
• Tighten the 3 screws of the timing wheel with correct tightening torque.
• Tightening torque screws: 18 Nm (159 inch-Ibs.)
85-40-54 Reassembly of engine
• Clean the sealing surfaces of the side cover and the cylinder head.
• Apply a line of sealant to the sealing surface of the cylinder head. Place the side cover
onto the engine and fix it with 5 screws.
• Tightening torque screws: 12 Nm (106 inch-Ibs.)

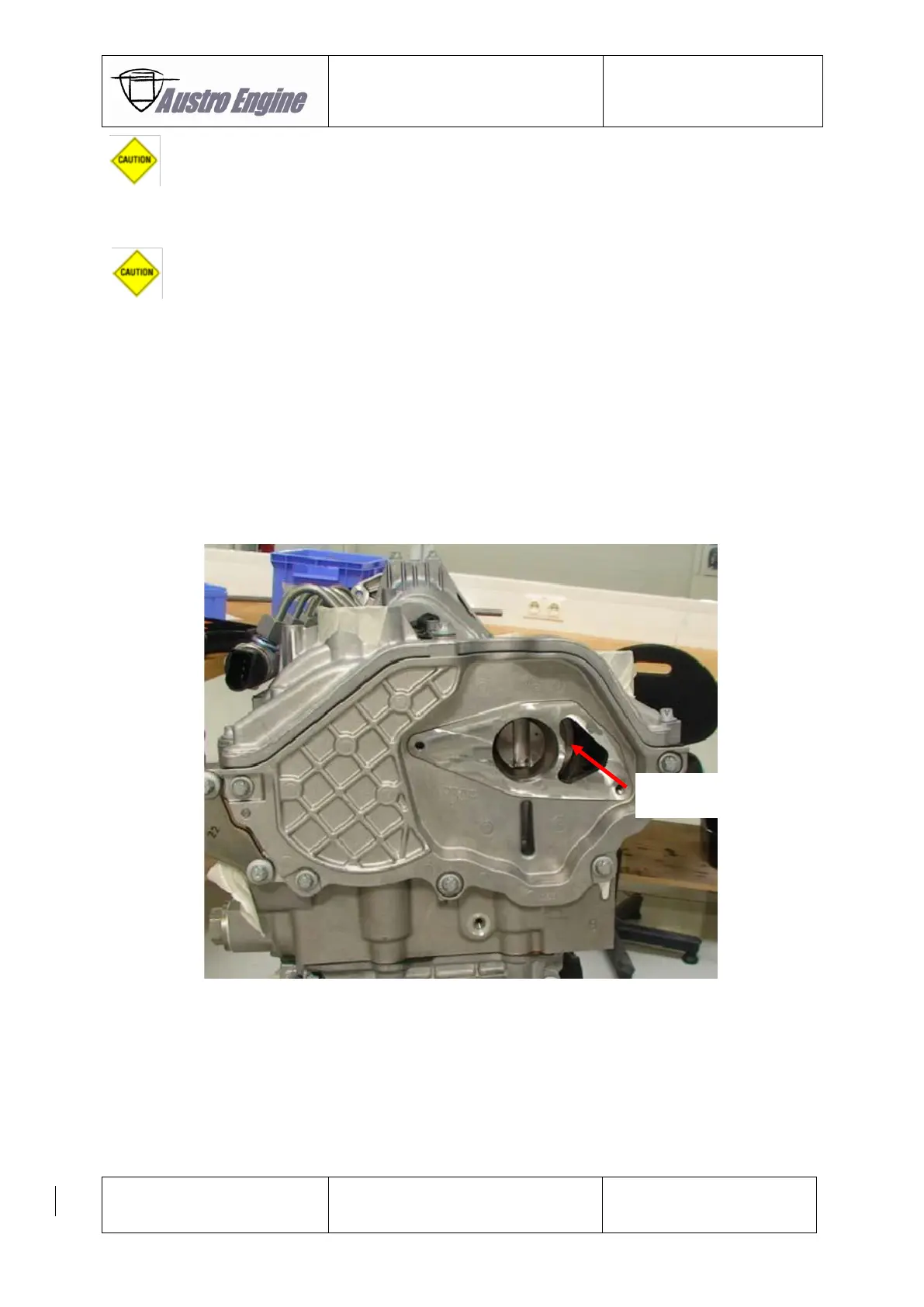

Fig. 85 - 117 Side cover at cylinder head
